Balun
A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

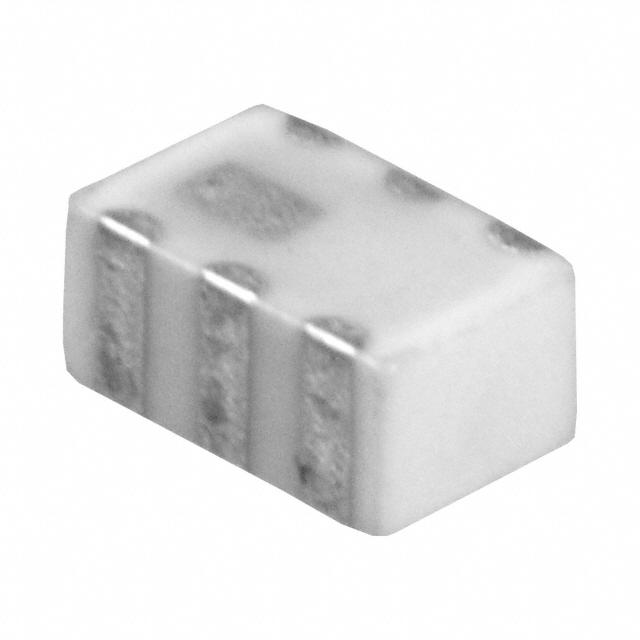

2450BL15B200E
|
Johanson Technology Inc. | BALUN 2.4GHZ-2.5GHZ 50/200 0805 | 107006 | $0.00 | |
LDB212G4020C-001
|
Murata Electronics | BALUN 2.3GHZ-2.5GHZ 50/200 0805 | 4538 | $0.00 | |
TP-101-PIN
|
M/A-Com Technology Solutions | BALUN 500KHZ-1.5GHZ 50/50 6FLTPK | 88 | $101.69 | |
TP-103-PIN
|
M/A-Com Technology Solutions | BALUN 500KHZ-1GHZ 50/200 6FLTPAK | 34 | $95.82 | |
CX2078NL
|
Pulse Electronics Network | BALUN 5MHZ-500MHZ 50/50 6SMD GW | 392 | $3.63 | |
CX2156NL
|
Pulse Electronics Network | BALUN 2.3MHZ-2.7GHZ 1:1 5SMD | 1156 | $3.25 | |
CX2024NL
|
Pulse Electronics Network | BALUN 10MHZ-1GHZ 1:1 6SMD | 3640 | $1.62 | |
CX2045LNL
|
Pulse Electronics Network | BALUN 3MHZ-300MHZ 1:2 SMD | 2679 | $2.96 | |
ETC1-1-13TR
|
M/A-Com Technology Solutions | BALUN 4.5MHZ-3GHZ 1:1 5SMD | 7157 | $0.00 | |
MABAES0060
|
M/A-Com Technology Solutions | BALUN 300KHZ-200MHZ 1:1 6SMD | 6420 | $2.44 |
