Balun
A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
4400BL15A0100E
|
Johanson Technology Inc. | BALUN 2.8GHZ-6GHZ 1:2 | 23166 | $0.00 | |
HHM1564A4
|
TDK Corporation | BALUN 824MHZ-894MHZ 50/200 0805 | 2172 | $0.00 | |
|
HHM1525
|
TDK Corporation | BALUN 1.71GHZ-1.99GHZ 50/50 0805 | 3174 | $0.00 | |
HHM1711D1
|
TDK Corporation | BALUN 2.4GHZ-2.5GHZ 50/100 0603 | 6838 | $0.00 | |
0900BL18B100E
|
Johanson Technology Inc. | BALUN 800MHZ-1GHZ 50/100 1206 | 12243 | $0.00 | |
|
0900BL18B200E
|
Johanson Technology Inc. | BALUN 800MHZ-1GHZ 50/200 1206 | 61033 | $0.00 | |
BALF-NRG-01D3
|
STMicroelectronics | BALUN 2.4GHZ-2.5GHZ 50/50 4WFBGA | 15902 | $0.00 | |

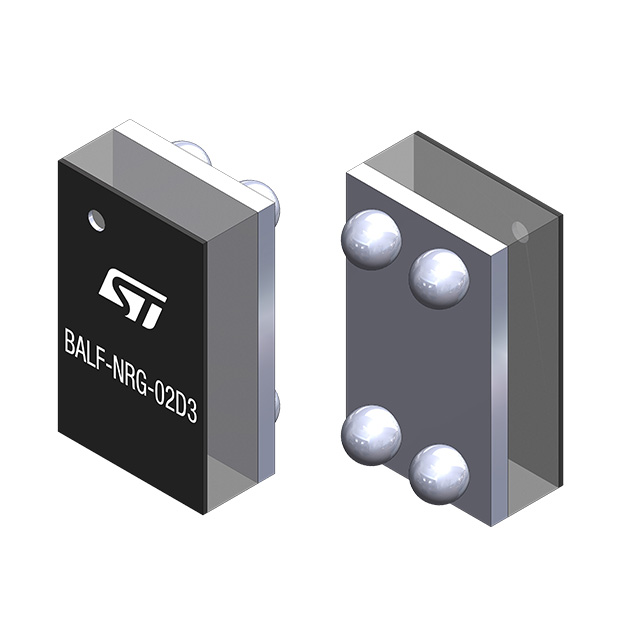

BALF-NRG-02D3
|
STMicroelectronics | BALUN 2.4GHZ-2.5GHZ 50/50 4UFBGA | 11725 | $0.00 | |
|
HHM1520
|
TDK Corporation | BALUN 2.4GHZ-2.5GHZ 50/100 0805 | 9714 | $0.00 | |
HHM1517
|
TDK Corporation | BALUN 2.4GHZ-2.5GHZ 50/50 0805 | 9823 | $0.41 |
