Full Half-Bridge Drivers
Devices in the bridge driver PMIC (Power Management Integrated Circuit) family incorporate two or more power transistors along with circuitry required to operate them as switches under the control of an external device. The transistors are typically configured internally in series-connected pairs known as half-bridges, such that the junction between any given pair can be connected to either of two power supply rails. They are commonly used to translate low-level signals provided by a control device such as a microcontroller into the higher power signals required to operate an actuator such as a stepper or brushless motor.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
STK5C4U332J-E
|
ON Semiconductor | MODULE HYBRID INVERTER 3PHASE | 46 | $8.33 | |
L6207QTR
|
STMicroelectronics | IC MOTOR DRIVER PAR 48VFQFPN | 28 | $0.00 | |

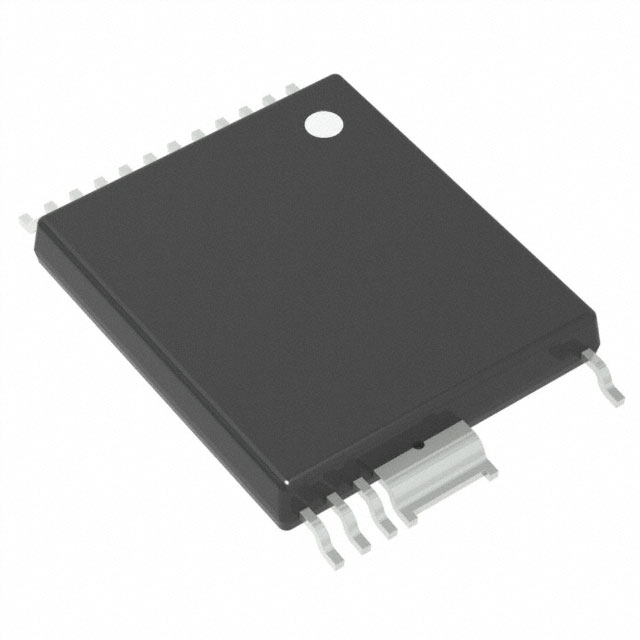

BRD1160C-TL
|
Power Integrations | BRIDGESWITCH 1.0 A | 0 | $0.00 | |
SIC620RCD-T1-GE3
|
Vishay / Siliconix | IC CTLR STAGE 60A 5V PWM PPAK | 0 | $1.58 | |

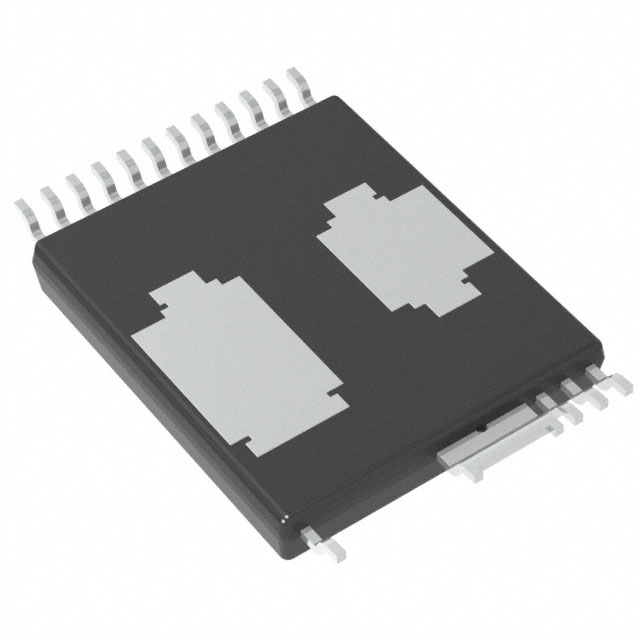

BRD1263C-TL
|
Power Integrations | BRIDGESWITCH 3.3 A | 0 | $0.00 | |
|
LB1863M-TLM-E
|
ON Semiconductor | IC BRIDGE DRIVER ON/OFF MFP14S | 0 | $0.43 | |
P67001EXG8
|
IDT, Integrated Device Technology Inc | IC MOSFET DVR 1PH VR12 8SOIC | 0 | $0.42 | |
|
SIC830ED-T1-GE3
|
Vishay / Siliconix | IC POWER STAGE 80A 5X6 MLP | 0 | $5.87 | |
LB1867M-TLM-H
|
ON Semiconductor | IC BRIDGE DRIVER ON/OFF MFP14S | 0 | $0.71 | |
|
LA6584JA-AH
|
ON Semiconductor | IC MOTOR DRIVER ON/OFF 14HSSOP | 0 | $0.70 |
