Full Half-Bridge Drivers
Devices in the bridge driver PMIC (Power Management Integrated Circuit) family incorporate two or more power transistors along with circuitry required to operate them as switches under the control of an external device. The transistors are typically configured internally in series-connected pairs known as half-bridges, such that the junction between any given pair can be connected to either of two power supply rails. They are commonly used to translate low-level signals provided by a control device such as a microcontroller into the higher power signals required to operate an actuator such as a stepper or brushless motor.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
BQ500101DPCR
|
Texas Instruments | IC NEXFET SYNC BUCK 8VSON | 1494 | $1.70 | |
SIC532CD-T1-GE3
|
Vishay / Siliconix | IC CTLR STAGE 30A 5V PWM PPAK ML | 2997 | $0.00 | |
SIC631CD-T1-GE3
|
Vishay / Siliconix | IC CTLR STAGE 50A 5V PWM PPAK ML | 0 | $1.08 | |
|
SIC533CD-T1-GE3
|
Vishay / Siliconix | IC POWER STAGE 35A POWERPAK MLP4 | 2930 | $0.00 | |
T6817-TKQ
|
Microchip Technology | IC DRIVER DUAL TRPL DMOS 20SSO | 0 | $0.00 | |
CSD95373AQ5M
|
Texas Instruments | IC SYNC BUCK NEXFET 12SON | 1782 | $2.91 | |
FDMF6708N
|
ON Semiconductor | MODULE DRMOS 50A 40PQFN | 527 | $0.00 | |

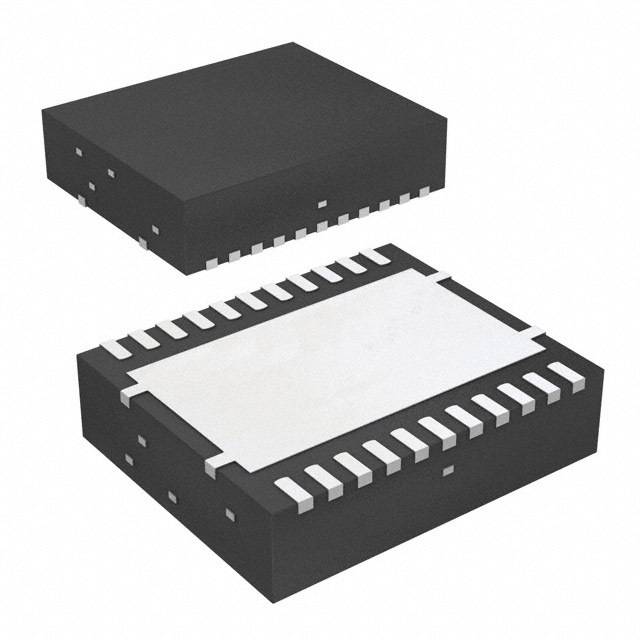

CSD97370AQ5M
|
Texas Instruments | IC SYNC BUCK NEXFET 22SON | 2388 | $0.00 | |
|
CSD96370Q5M
|
Texas Instruments | IC SYNC BUCK NEXFET 22SON | 2691 | $0.00 | |

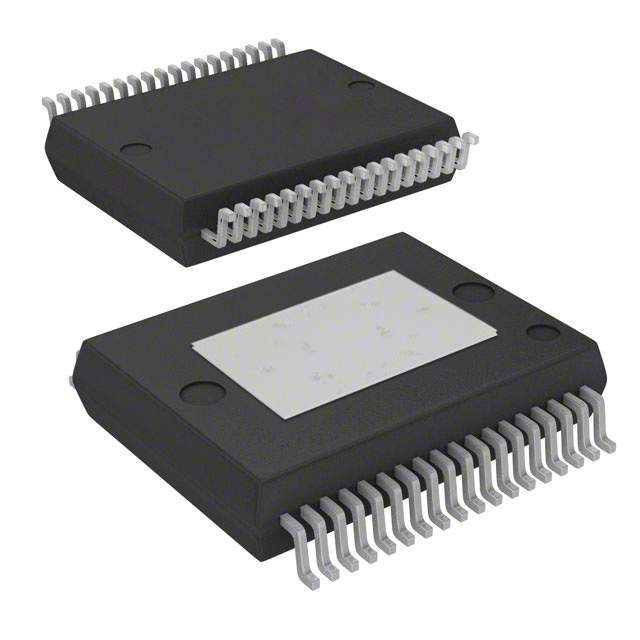

VNH7013XPTR-E
|
STMicroelectronics | IC MOTOR DRIVER PAR 36POWERSSO | 956 | $4.44 |
