Full Half-Bridge Drivers
Devices in the bridge driver PMIC (Power Management Integrated Circuit) family incorporate two or more power transistors along with circuitry required to operate them as switches under the control of an external device. The transistors are typically configured internally in series-connected pairs known as half-bridges, such that the junction between any given pair can be connected to either of two power supply rails. They are commonly used to translate low-level signals provided by a control device such as a microcontroller into the higher power signals required to operate an actuator such as a stepper or brushless motor.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
L9960TR
|
STMicroelectronics | H-BRIDGE | 194 | $0.00 | |
BM6205FS-E2
|
ROHM Semiconductor | IC MOTOR DVR 3PH BRUSHLSS 54SSOP | 0 | $0.00 | |
VT1697SBFQX
|
Maxim Integrated | SWITCHING REG SMART SLAVE 55A 12 | 717 | $8.14 | |
IRS2007STRPBF
|
Infineon Technologies | HVIC | 2321 | $0.00 | |
BTM7700GXUMA1
|
Infineon Technologies | IC BRIDGE DRIVER PAR 28DSO | 0 | $2.12 | |

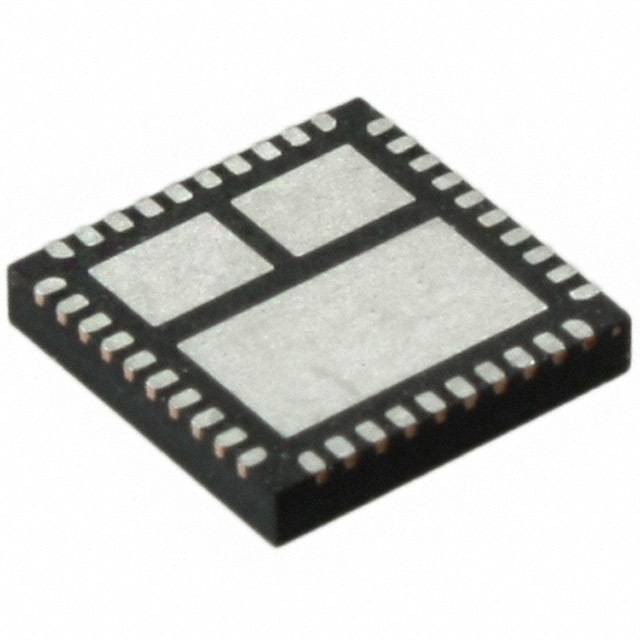

FDMF6820C
|
ON Semiconductor | MODULE DRMOS 50A 40-PQFN | 0 | $0.00 | |
TLE94112ELXUMA1
|
Infineon Technologies | IC DRIVER HALF-BRIDGE 24SSOP | 2191 | $5.94 | |
IR3556MTRPBF
|
Infineon Technologies | IC DRIVER GATE 50A PQFN | 1480 | $0.00 | |
ISL55110IVZ-T7A
|
Renesas Electronics America Inc. | MOSFET DRIVER DUAL HS 8TSSOP | 250 | $1.70 | |
STK5Q4U352J-E
|
ON Semiconductor | MODULE IPM INVERTER 3PH SPCM24 | 32 | $10.71 |
