Crystals
Crystal products are passive components most commonly used as time or frequency references in electronic systems. Consisting of a piezoelectric crystal that mechanically vibrates at a known frequency, their use requires provision of an external oscillator circuit with carefully designed capacitance, drive voltage, and series resistance characteristics, to generate a signal at the indicated crystal frequency that operates successfully over the operating temperature range, without damaging the crystal element. Active devices which integrate this additional necessary circuitry are considered oscillators and are catalogued separately.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

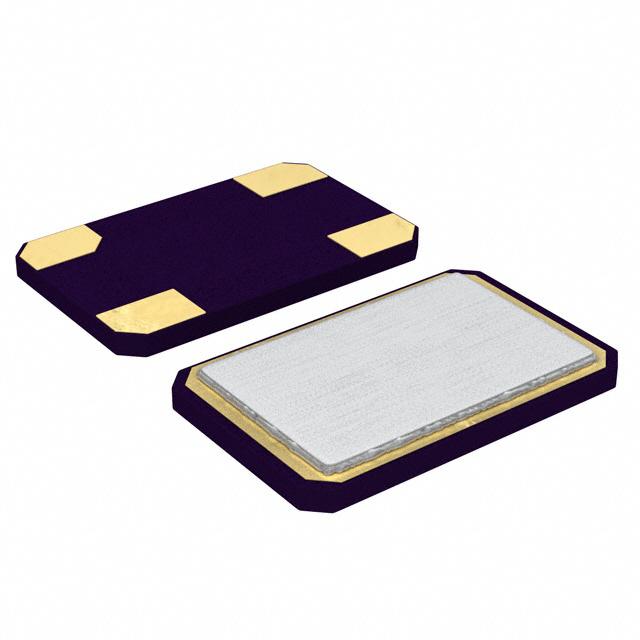

NX5032GA-30.000000MHZ-LN-CD-1
|
NDK America, Inc. | CRYSTAL 30.0000MHZ 8PF SMD | 2000 | $0.34 | |

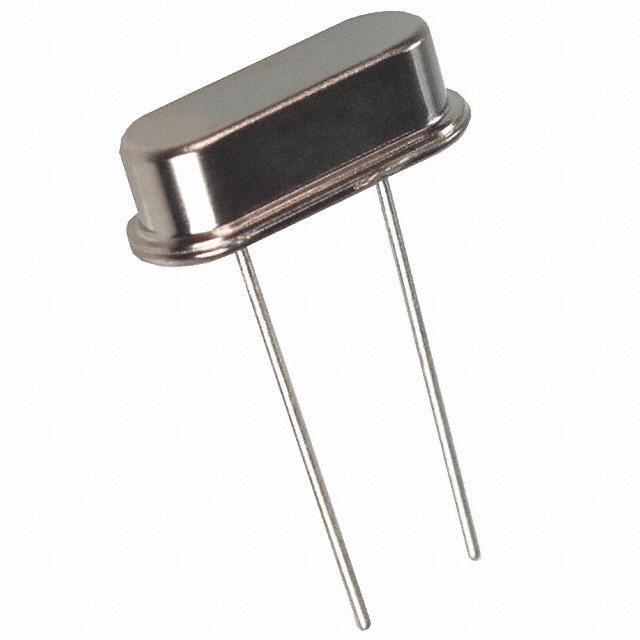

FC4STCBLF3.579545-BAG200
|
Fox Electronics | CRYSTAL 3.579545MHZ 18PF T/H | 3462 | $0.35 | |
ABM8W-24.0000MHZ-4-B1U-T3
|
Abracon LLC. | CRYSTAL 24.0000MHZ 4PF SMD | 12261 | $0.00 | |
ATS036
|
CTS-Frequency Controls | CRYSTAL 3.579545MHZ 18PF T/H | 1876 | $0.36 | |
ATS080C
|
CTS-Frequency Controls | CRYSTAL 8.0000MHZ 32PF T/H | 1953 | $0.36 | |
FW374WFBR2
|
Diodes Incorporated | CRYSTAL 37.4000MHZ 16PF SMD | 3000 | $0.36 | |
7A-18.432MAAE-T
|
TXC Corporation | CRYSTAL 18.4320MHZ 12PF SMD | 2864 | $0.66 | |
|
ABM10W-40.0000MHZ-8-D1X-T3
|
Abracon LLC. | CRYSTAL 40.0000MHZ 8PF SMD | 5772 | $0.74 | |
|
7A-13.560MAAE-T
|
TXC Corporation | CRYSTAL 13.5600MHZ 12PF SMD | 6942 | $0.00 | |
7V-25.000MAAV-T
|
TXC Corporation | CRYSTAL 25.0000MHZ 8PF SMD | 4986 | $0.00 |
