Crystals
Crystal products are passive components most commonly used as time or frequency references in electronic systems. Consisting of a piezoelectric crystal that mechanically vibrates at a known frequency, their use requires provision of an external oscillator circuit with carefully designed capacitance, drive voltage, and series resistance characteristics, to generate a signal at the indicated crystal frequency that operates successfully over the operating temperature range, without damaging the crystal element. Active devices which integrate this additional necessary circuitry are considered oscillators and are catalogued separately.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

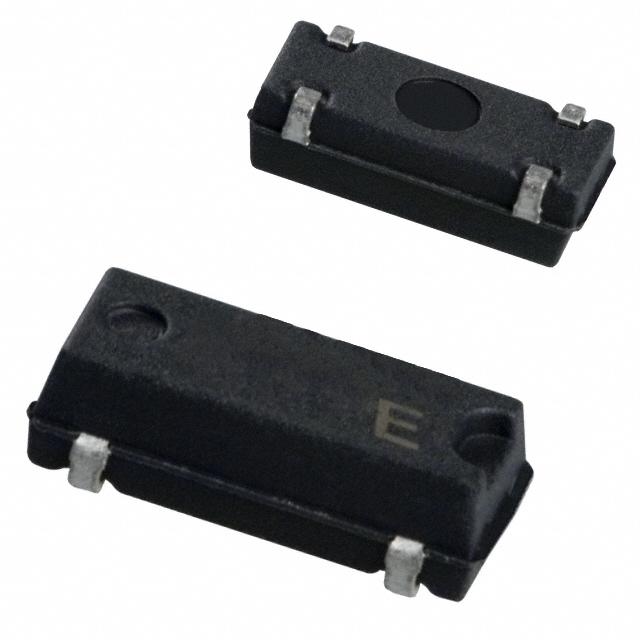

MC-146 32.768KA-AC3:ROHS
|
Epson | CRYSTAL 32.7680KHZ 9PF SMD | 20525 | $0.40 | |
ECS-200-16-5PX-TR
|
ECS Inc. | CRYSTAL 20.0000MHZ 16PF SMD | 7000 | $0.24 | |
|
ECS-147.4-S-5PX-TR
|
ECS Inc. | CRYSTAL 14.7456MHZ SERIES SMD | 3368 | $0.00 | |
ECS-240-8-33-AGN-TR
|
ECS Inc. | CRYSTAL 24MHZ 8PF SMD | 8000 | $0.27 | |
ECX-.327-CDX-1293
|
ECS Inc. | CRYSTAL 32.7680KHZ 12.5PF SMD | 6904 | $0.00 | |
|
ECS-135.60-8-33-RWY-TR
|
ECS Inc. | CRYSTAL 13.56MHZ 8PF SMD | 2000 | $0.56 | |
MC-306 32.7680K-A3:PURE SN
|
Epson | CRYSTAL 32.7680 KHZ 12.5PF SMD | 5350 | $0.00 | |
ECS-200-18-33-JGN-TR
|
ECS Inc. | CRYSTAL 20.0000MHZ 18PF SMD | 5000 | $0.29 | |
|
ECS-163.8-18-33-JGN-TR
|
ECS Inc. | CRYSTAL 16.3840MHZ 18PF SMD | 5756 | $0.00 | |
|
ECS-320-10-33-JTL-TR
|
ECS Inc. | CRYSTAL 32MHZ 10PF SMD | 2000 | $0.61 |
