Crystals
Crystal products are passive components most commonly used as time or frequency references in electronic systems. Consisting of a piezoelectric crystal that mechanically vibrates at a known frequency, their use requires provision of an external oscillator circuit with carefully designed capacitance, drive voltage, and series resistance characteristics, to generate a signal at the indicated crystal frequency that operates successfully over the operating temperature range, without damaging the crystal element. Active devices which integrate this additional necessary circuitry are considered oscillators and are catalogued separately.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
ST3215SB32768E0HSZB1
|
Kyocera International Inc. Electronic Components | CRYSTAL 32.768KHZ 9PF SMD | 5095 | $0.00 | |
ECS-160-12-30BQ-ADS-TR
|
ECS Inc. | CRYSTAL 16MHZ 12PF SMD | 5000 | $0.45 | |
ECS-160-12-30BQ-AEN-TR
|
ECS Inc. | CRYSTAL 16MHZ 12PF SMD | 5000 | $0.00 | |

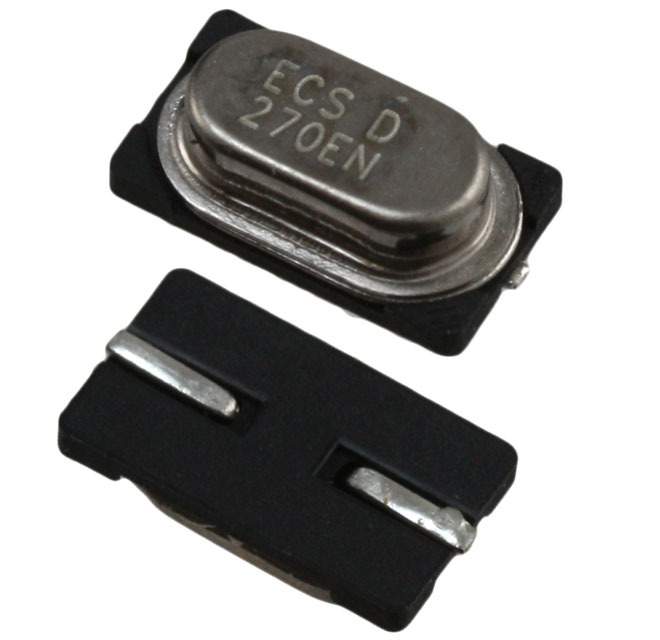

ECS-147.4-20-3X-EN-TR
|
ECS Inc. | CRYSTAL 14.7456MHZ 20PF SMD | 3506 | $0.46 | |

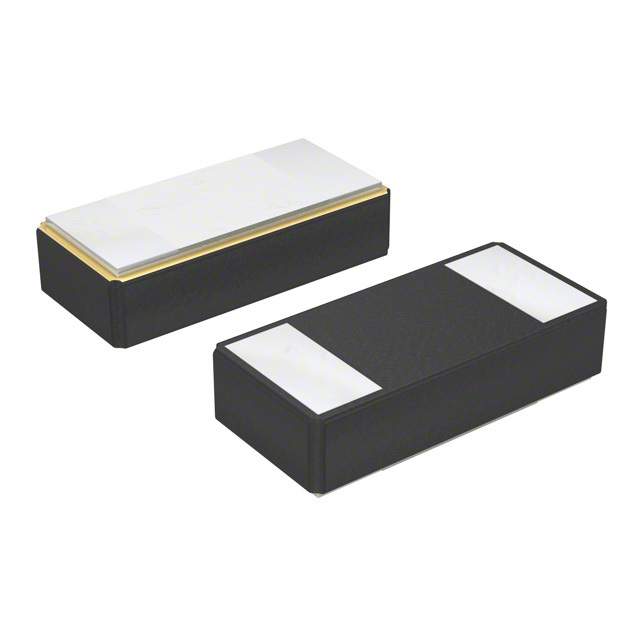

ECS-.327-6-39-TR
|
ECS Inc. | CRYSTAL 32.7680KHZ 6PF SMD | 5105 | $0.00 | |
CX3225CA16000H0HSSCC
|
Kyocera International Inc. Electronic Components | CRYSTAL 16.0000MHZ 12PF SMD | 6000 | $0.48 | |
|
ECS-200-CDX-0914
|
ECS Inc. | CRYSTAL 20.0000MHZ 10PF SMD | 10025 | $0.00 | |
MA-505 25.0000M-C0:ROHS
|
Epson | CRYSTAL 25.0000MHZ 18PF SMD | 8698 | $0.92 | |
CT2016DB38400C0FLHA2
|
Kyocera International Inc. Electronic Components | CRYSTAL 38.4000MHZ 7PF SMD | 3127 | $0.00 | |
CX2520DB16000D0FLJCC
|
Kyocera International Inc. Electronic Components | CRYSTAL 16.0000MHZ 8PF SMD | 17000 | $0.49 |
