Crystals
Crystal products are passive components most commonly used as time or frequency references in electronic systems. Consisting of a piezoelectric crystal that mechanically vibrates at a known frequency, their use requires provision of an external oscillator circuit with carefully designed capacitance, drive voltage, and series resistance characteristics, to generate a signal at the indicated crystal frequency that operates successfully over the operating temperature range, without damaging the crystal element. Active devices which integrate this additional necessary circuitry are considered oscillators and are catalogued separately.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

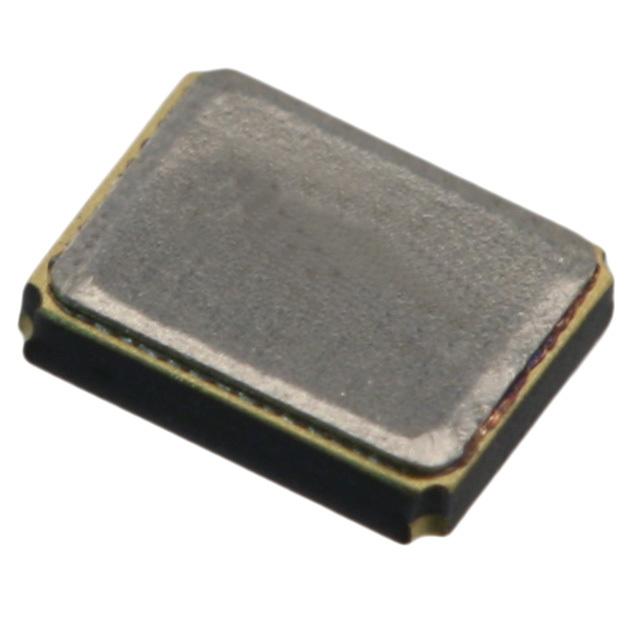

FA-20H 25.0000MF20X-K3
|
Epson | CRYSTAL 25.00 MHZ 10.0PF SMD | 3372 | $0.00 | |
ECS-.327-6-17X-C-TR
|
ECS Inc. | CRYSTAL 32.768KHZ 6PF SMD | 3000 | $0.30 | |
ECS-120-12-30B-AGM-TR
|
ECS Inc. | CRYSTAL 12MHZ 12PF SMD | 2000 | $0.30 | |
|
ECS-110.5-18-30B-AGN-TR
|
ECS Inc. | CRYSTAL 11.0592MHZ 18PF SMD | 2551 | $0.00 | |
ECS-360-18-5PX-JES-TR
|
ECS Inc. | CRYSTAL 36.0000MHZ 18PF SMD | 2000 | $0.63 | |
ECS-160-10-36-CKM-TR
|
ECS Inc. | CRYSTAL 16MHZ 10PF SMD | 2216 | $0.00 | |
FA-238 16.3840MB-K
|
Epson | CRYSTAL 16.3840MHZ 10PF SMD | 2068 | $0.33 | |
CX2520DB19200H0KFQC2
|
Kyocera International Inc. Electronic Components | CRYSTAL 19.2000MHZ 12PF SMD | 4569 | $0.00 | |
CX3225SB16000H0PSTC1
|
Kyocera International Inc. Electronic Components | CRYSTAL 16.0000MHZ 12PF SMD | 3000 | $0.34 | |
FC-135R 32.7680KA-AC3
|
Epson | CRYSTAL 32.7680KHZ 9.0PF SMT | 40300 | $0.59 |
