Crystals
Crystal products are passive components most commonly used as time or frequency references in electronic systems. Consisting of a piezoelectric crystal that mechanically vibrates at a known frequency, their use requires provision of an external oscillator circuit with carefully designed capacitance, drive voltage, and series resistance characteristics, to generate a signal at the indicated crystal frequency that operates successfully over the operating temperature range, without damaging the crystal element. Active devices which integrate this additional necessary circuitry are considered oscillators and are catalogued separately.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
ECS-36-18-4X
|
ECS Inc. | CRYSTAL 3.6864MHZ 18PF T/H | 5613 | $0.69 | |
ABM11AIG-20.000MHZ-4Z-T3
|
Abracon LLC. | CRYSTAL 20MHZ 10PF SMD | 8208 | $1.36 | |

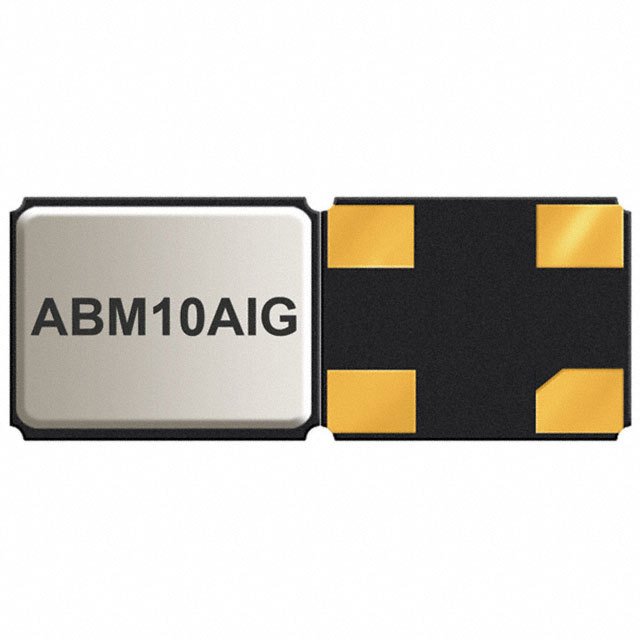

ABM10AIG-25.000MHZ-4Z-T3
|
Abracon LLC. | CRYSTAL 25MHZ 10PF SMD | 7651 | $0.00 | |
NX2520SA-16.000000MHZ-W1
|
NDK America, Inc. | CRYSTAL 16.0000MHZ 8PF SMD | 14341 | $1.40 | |
8Z-20.000MAAJ-T
|
TXC Corporation | CRYSTAL 20.0000MHZ 18PF SMD | 7976 | $0.00 | |
ABM2-25.000MHZ-D4Y-T
|
Abracon LLC. | CRYSTAL 25.0000MHZ 18PF SMD | 7576 | $2.96 | |
XRCGB30M000F2P00R0
|
Murata Electronics North America | CRYSTAL 30MHZ 6PF SMD | 13784 | $0.00 | |
ATS240SM-1
|
CTS-Frequency Controls | CRYSTAL 24.0000MHZ SERIES SMD | 21000 | $0.20 | |
9C-12.500MAAJ-T
|
TXC Corporation | CRYSTAL 12.5000MHZ 18PF SMD | 2860 | $0.00 | |
ATS080SM-1
|
CTS-Frequency Controls | CRYSTAL 8.0000MHZ SERIES SMD | 2953 | $0.40 |
