Crystals
Crystal products are passive components most commonly used as time or frequency references in electronic systems. Consisting of a piezoelectric crystal that mechanically vibrates at a known frequency, their use requires provision of an external oscillator circuit with carefully designed capacitance, drive voltage, and series resistance characteristics, to generate a signal at the indicated crystal frequency that operates successfully over the operating temperature range, without damaging the crystal element. Active devices which integrate this additional necessary circuitry are considered oscillators and are catalogued separately.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

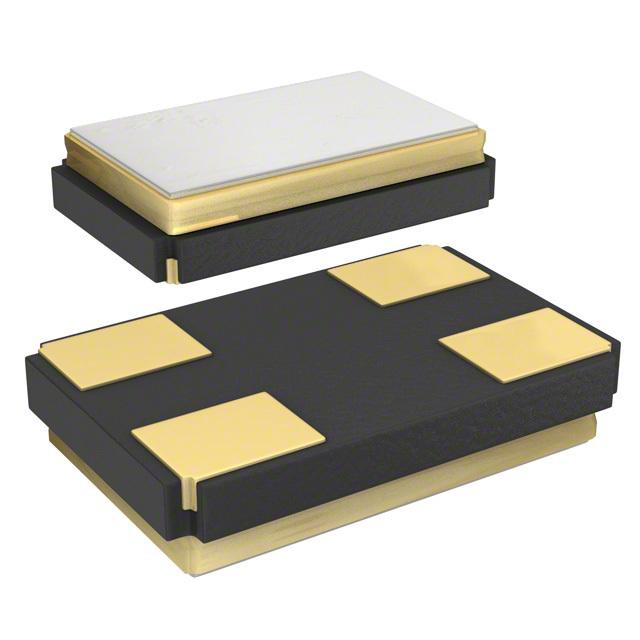

ABM3B-30.000MHZ-10-1-U-T
|
Abracon LLC. | CRYSTAL 30.0000MHZ 10PF SMD | 7000 | $0.60 | |
|
ABM3B-26.000MHZ-10-1-U-T
|
Abracon LLC. | CRYSTAL 26.0000MHZ 10PF SMD | 10313 | $0.00 | |

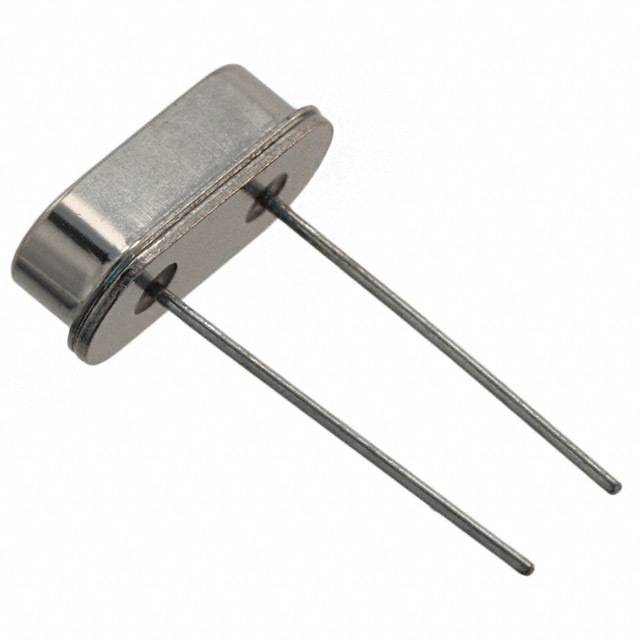

ECS-160-20-4X-DU
|
ECS Inc. | CRYSTAL 16.0000MHZ 20PF T/H | 2711 | $0.60 | |

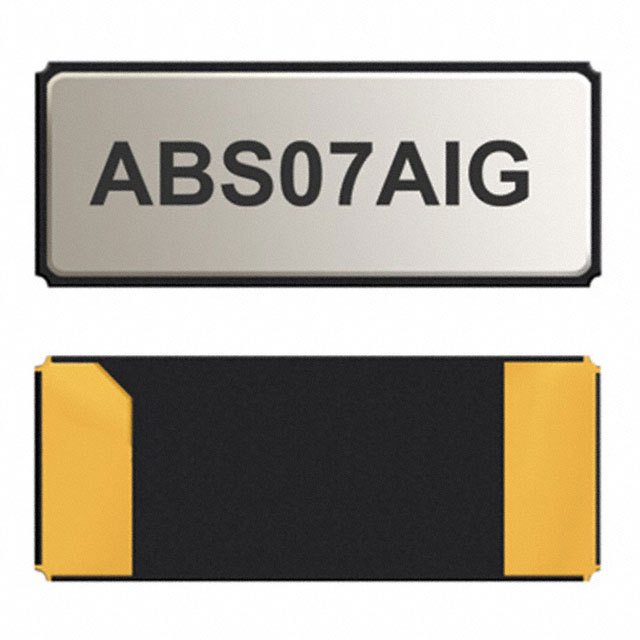

ABS07AIG-32.768KHZ-6-T
|
Abracon LLC. | CRYSTAL 32.768KHZ 6PF SMD | 5843 | $0.00 | |
|
ABS07AIG-32.768KHZ-7-D-T
|
Abracon LLC. | CRYSTAL 32.768KHZ 7PF SMD | 3000 | $0.61 | |
405C11A30M00000
|
CTS-Frequency Controls | CRYSTAL 30.0000MHZ 10PF SMD | 4000 | $0.64 | |

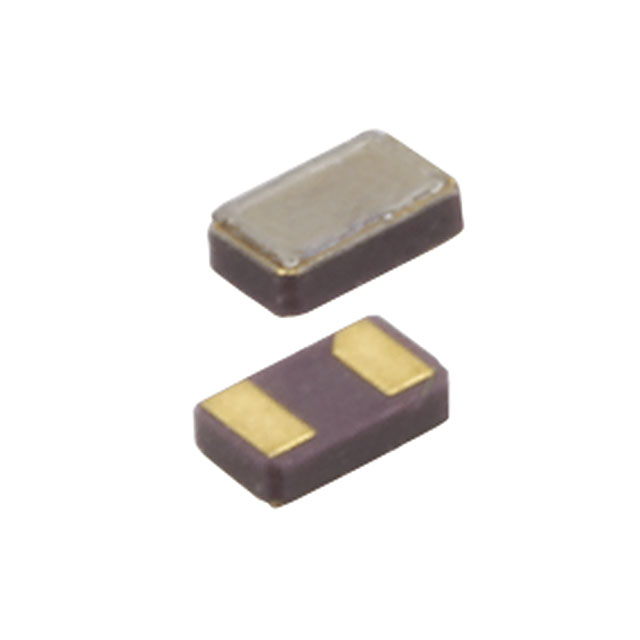

TFE202P32K7680R
|
CTS-Frequency Controls | CRYSTAL 32.7680KHZ 12.5PF SMD | 3000 | $0.66 | |
NX5032GA-20.000M-STD-CSU-2
|
NDK America, Inc. | CRYSTAL 20.0000MHZ 8PF SMD | 12852 | $0.00 | |
ECS-80-20-4X
|
ECS Inc. | CRYSTAL 8.0000MHZ 20PF T/H | 6630 | $0.69 | |
|
ECS-221-S-4X
|
ECS Inc. | CRYSTAL 22.1184MHZ SERIES T/H | 6904 | $0.69 |
