Shunts, Jumpers
Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
M7685-05
|
Harwin Inc. | CLOSED TOP JUMPER SOCKET | 1383 | $0.36 | |
SNT-100-RD-G
|
Samtec, Inc. | CONN SHUNT 2POS | 4219 | $0.36 | |

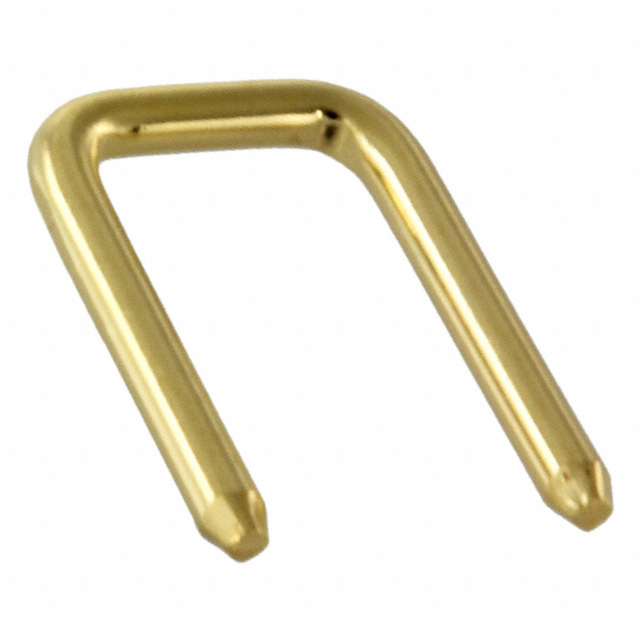

D3080-05
|
Harwin Inc. | 1MM UNINSULATED SHORTING PLUG | 11133 | $0.36 | |
XJ8A-0241
|
Omron Electronics Inc-EMC Div | CONN SOCKET JUMPER 2POS | 13160 | $0.36 | |
SNT-100-BL-G
|
Samtec, Inc. | CONN SHUNT 2POS | 27117 | $0.36 | |
M50-2020005
|

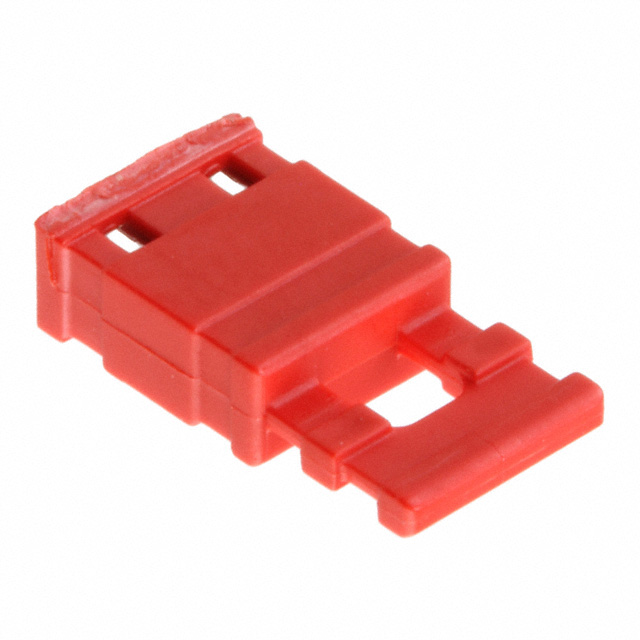

Harwin Inc. | CONN SHUNT 1.27MM RED W/HANDLE | 3433 | $0.34 | |
M50-2030005
|
Harwin Inc. | CONN SHUNT 1.27MM BLUE W/HANDLE | 7486 | $0.34 | |
M50-2000005
|
Harwin Inc. | CONN SHUNT 1.27MM BLACK W/HANDLE | 16768 | $0.34 | |
M50-1930005
|
Harwin Inc. | CONN SHUNT 1.27MM BLUE | 1323 | $0.33 | |
M22-1900005
|
Harwin Inc. | CONN JUMPER SHORTING GOLD BLACK | 2532 | $0.33 |
