Shunts, Jumpers
Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
0015291024
|
Molex | CONN SHUNT 2POS .100 GOLD | 5165 | $0.56 | |
531230-2
|
TE Connectivity AMP Connectors | SHUNT .200 C/L LP 2 POS 15AU | 19580 | $0.54 | |
390088-1
|
TE Connectivity AMP Connectors | CONN SHUNT DUAL BEAM 30AU PCB | 1518 | $0.51 | |

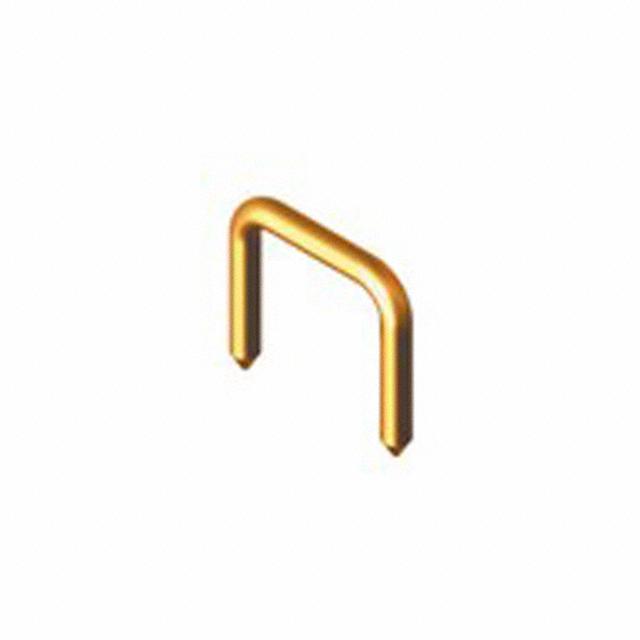

1430-5
|
Keystone Electronics | PIN SHORTING .500"DIA | 2249 | $0.50 | |
SNM-100-BK-G
|
Samtec, Inc. | .050 MICRO STRIPS | 3237 | $0.49 | |

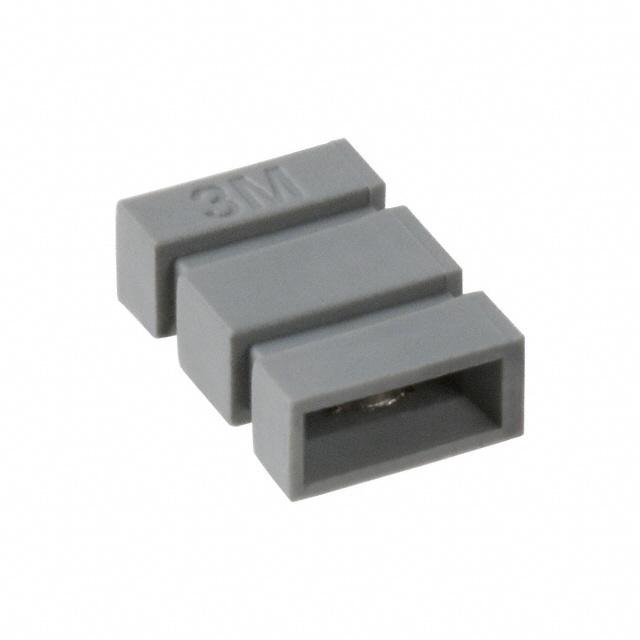

929957-08
|
3M | SHORTING JUMPERS GOLD PLATED GRY | 5094 | $0.49 | |
65474-001LF
|
Amphenol ICC (FCI) | CONN MINI-JUMP SHUNT 2POS ..100" | 4333 | $0.48 | |
65474-001
|
Amphenol ICC (FCI) | MINI JUMP 2POS .100" | 8162 | $0.48 | |
86730-001LF
|
Amphenol ICC (FCI) | MINITEK JUMPER 2MM 2POD AU BLK | 13016 | $0.48 | |
0900590007
|
Molex | CONN SHUNT 2POS .100 TIN | 9688 | $0.46 |
