Shunts, Jumpers
Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
0015381024
|
Molex | CONN SHUNT OPEN TOP .100 TIN | 1558 | $0.44 | |
0015381026
|
Molex | CONN SHUNT CLOSED TOP .100 TIN | 8685 | $0.44 | |
D3081-05
|
Harwin Inc. | 1MM SHORTING LINK GOLD | 3835 | $0.43 | |
D3082-05
|
Harwin Inc. | 1MM UNINSULATED SHORTING PLUG | 8225 | $0.43 | |
SNT-100-BK-H-H
|
Samtec, Inc. | CONN SHUNT 2POS | 2913 | $0.42 | |
SNT-100-BK-H
|
Samtec, Inc. | CONN SHUNT 2POS | 8982 | $0.42 | |
65474-010LF
|
Amphenol ICC (FCI) | CONN SHUNT 2POS .100 GOLD | 14300 | $0.42 | |
71363-102LF
|
Amphenol ICC (FCI) | CONN SHUNT 2POS .100 HIBOX 15AU | 21163 | $0.42 | |

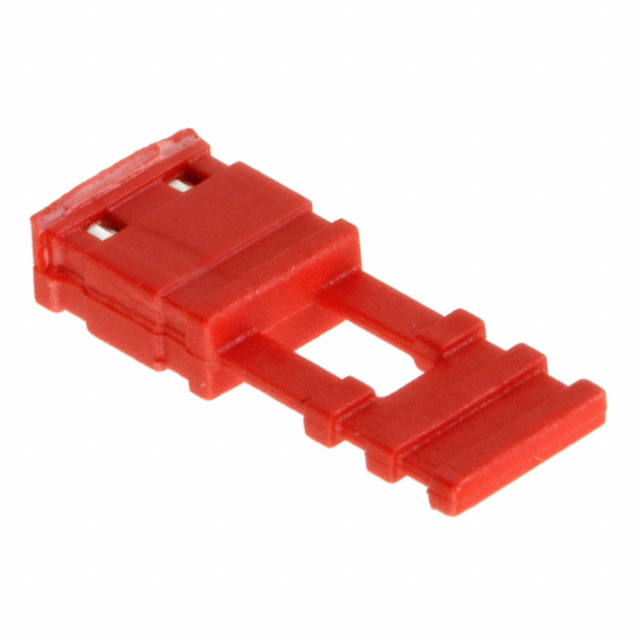

M7681-05
|
Harwin Inc. | 14MM JUMPER SKT W/HNDL RED | 1578 | $0.41 | |
SNM-100-BK-T
|
Samtec, Inc. | CONN MICRO SHUNT | 1523 | $0.37 |
