Shunts, Jumpers
Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

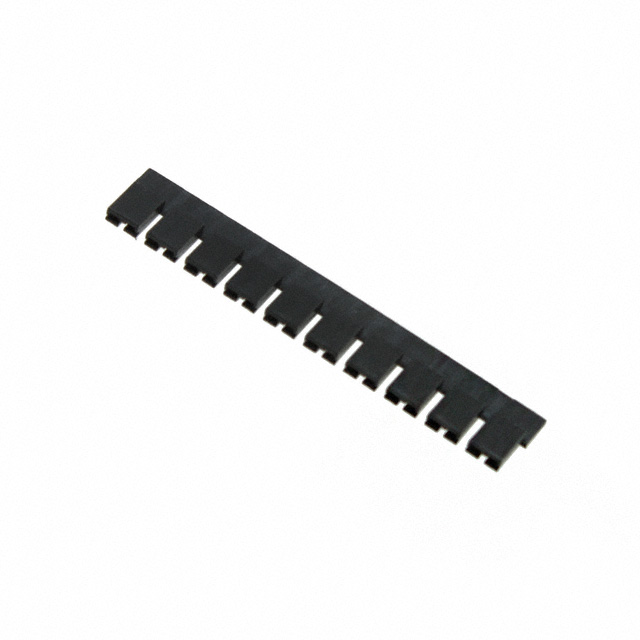

M22-1900046
|
Harwin Inc. | CONN JUMPER SHORTING TIN BLACK | 3504 | $0.33 | |

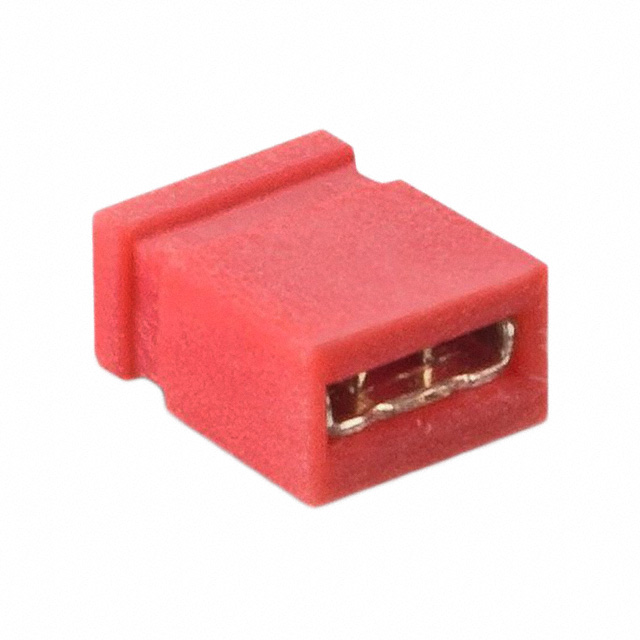

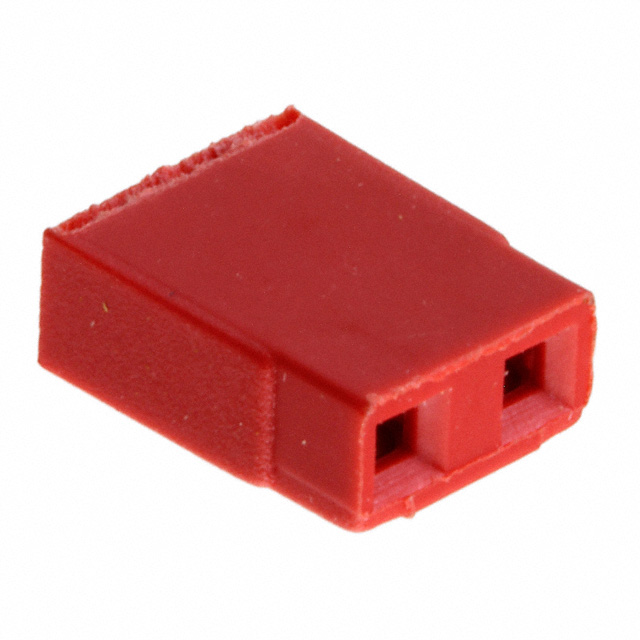

M50-1920005
|
Harwin Inc. | CONN SHUNT 1.27MM RED | 5053 | $0.33 | |

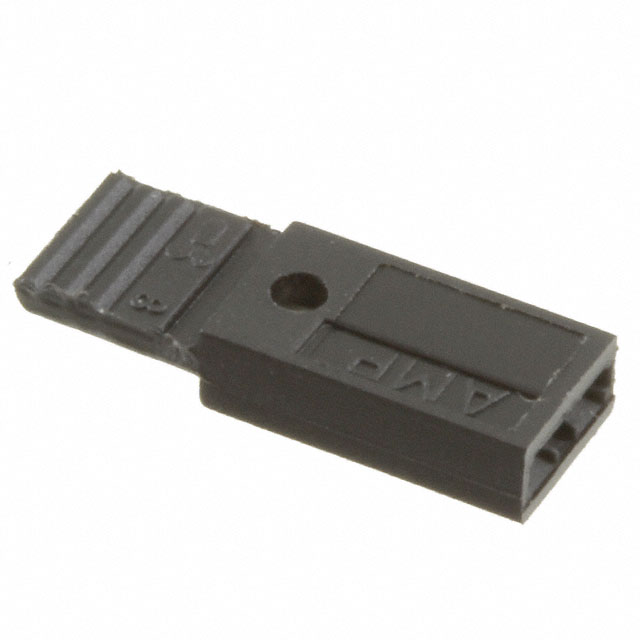

880584-4
|
TE Connectivity AMP Connectors | CONN SHUNT 2POS .100 CLOSED TOP | 25439 | $0.33 | |

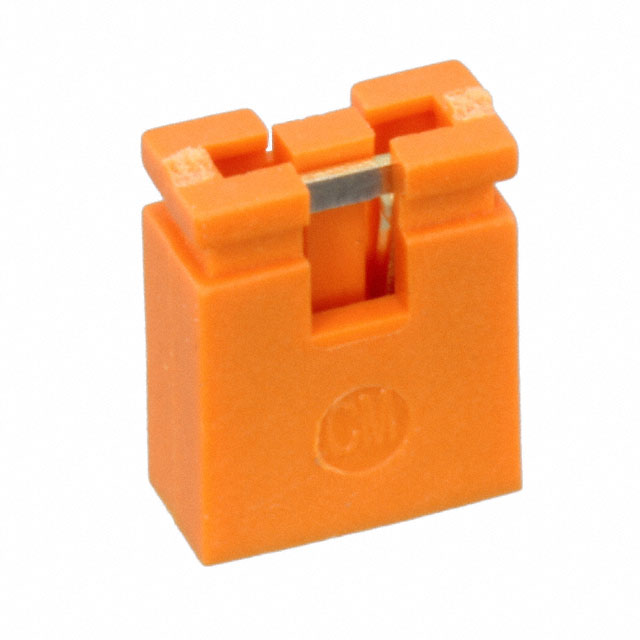

SNT-100-OR-G
|
Samtec, Inc. | CONN SHUNT 2POS | 1293 | $0.31 | |

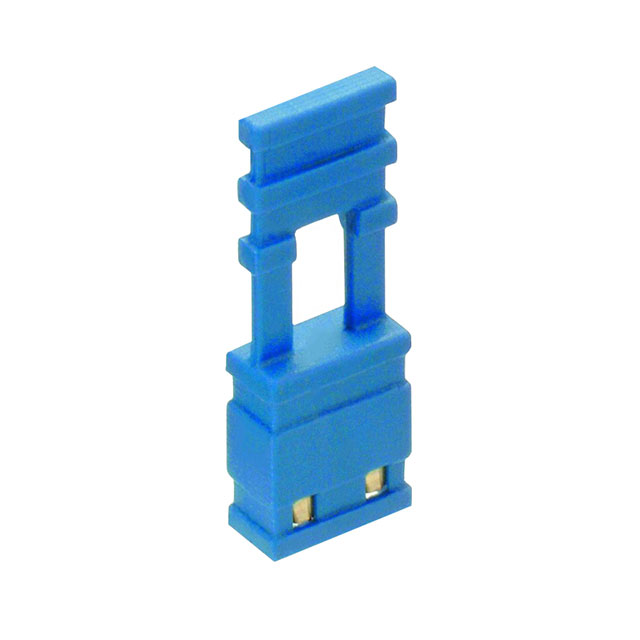

M7683-46
|
Harwin Inc. | 14MM JUMPER SKT W/HNDL BLUE | 2936 | $0.31 | |
M7566-05
|
Harwin Inc. | OPEN TOP JUMPER SOCKET MULTI-00E | 2462 | $0.28 | |
M7567-05
|
Harwin Inc. | JUMPER SOCKET SHORTING | 2488 | $0.28 | |
M7571-05
|
Harwin Inc. | OPEN TOP JUMPER SOCKET MULTI-00E | 2489 | $0.28 | |
63429-202LF
|
Amphenol ICC (FCI) | CONN SHUNT SINGLE .100 GOLD | 6945 | $0.27 | |
2-382811-0
|
TE Connectivity AMP Connectors | CONN SHUNT 2POS 3AMP .100 5GOLD | 16568 | $0.27 |
