Shunts, Jumpers
Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

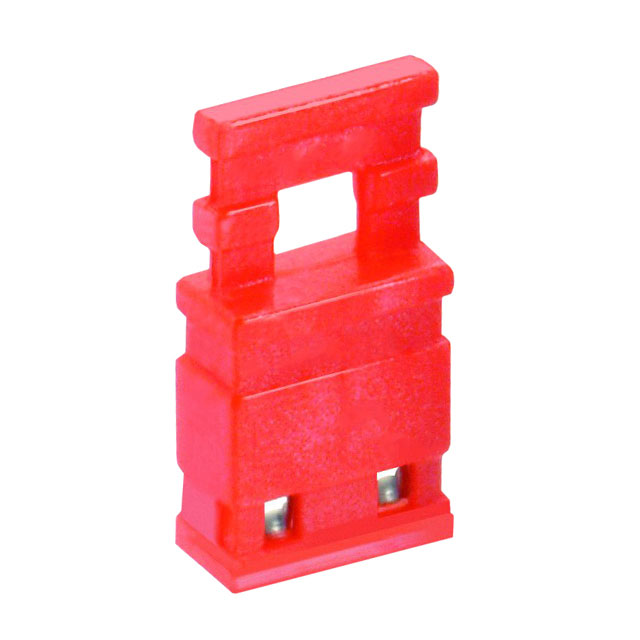

M7685-46
|
Harwin Inc. | 10MM JUMPER SKT W/HNDL RED | 1751 | $0.35 | |

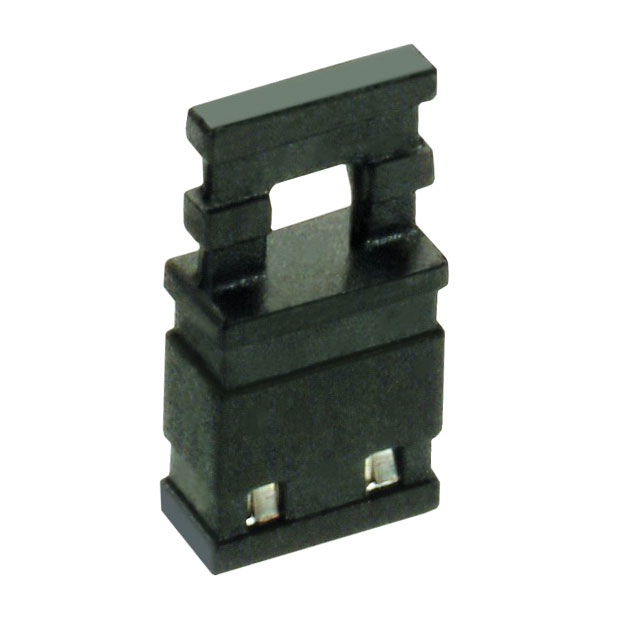

M7686-46
|
Harwin Inc. | 10MM JUMPER SKT W/HNDL BLACK | 2940 | $0.35 | |
M22-1910046
|
Harwin Inc. | CONN JUMPER SHORTING TIN BLUE | 2683 | $0.33 | |
M7966-46
|
Harwin Inc. | JUMPER SKT WITH HANDLE RED | 3388 | $0.29 | |

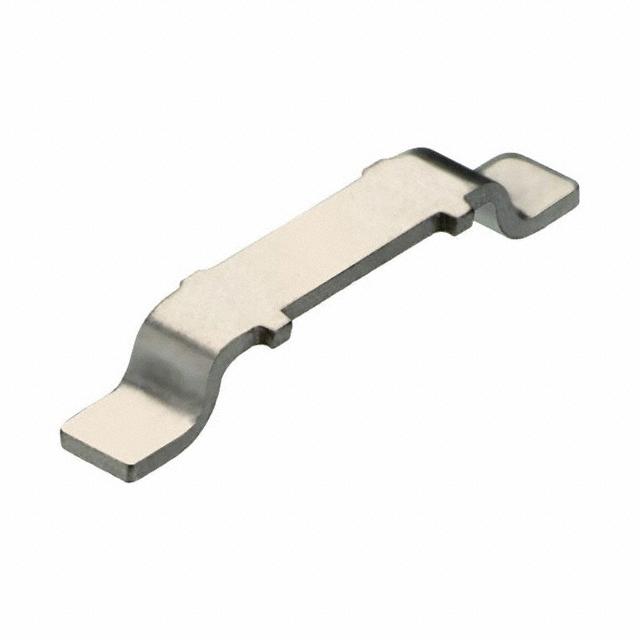

S1621-46
|
Harwin Inc. | SURFACE MOUNT JUMPER LOOSE | 4166 | $0.25 | |

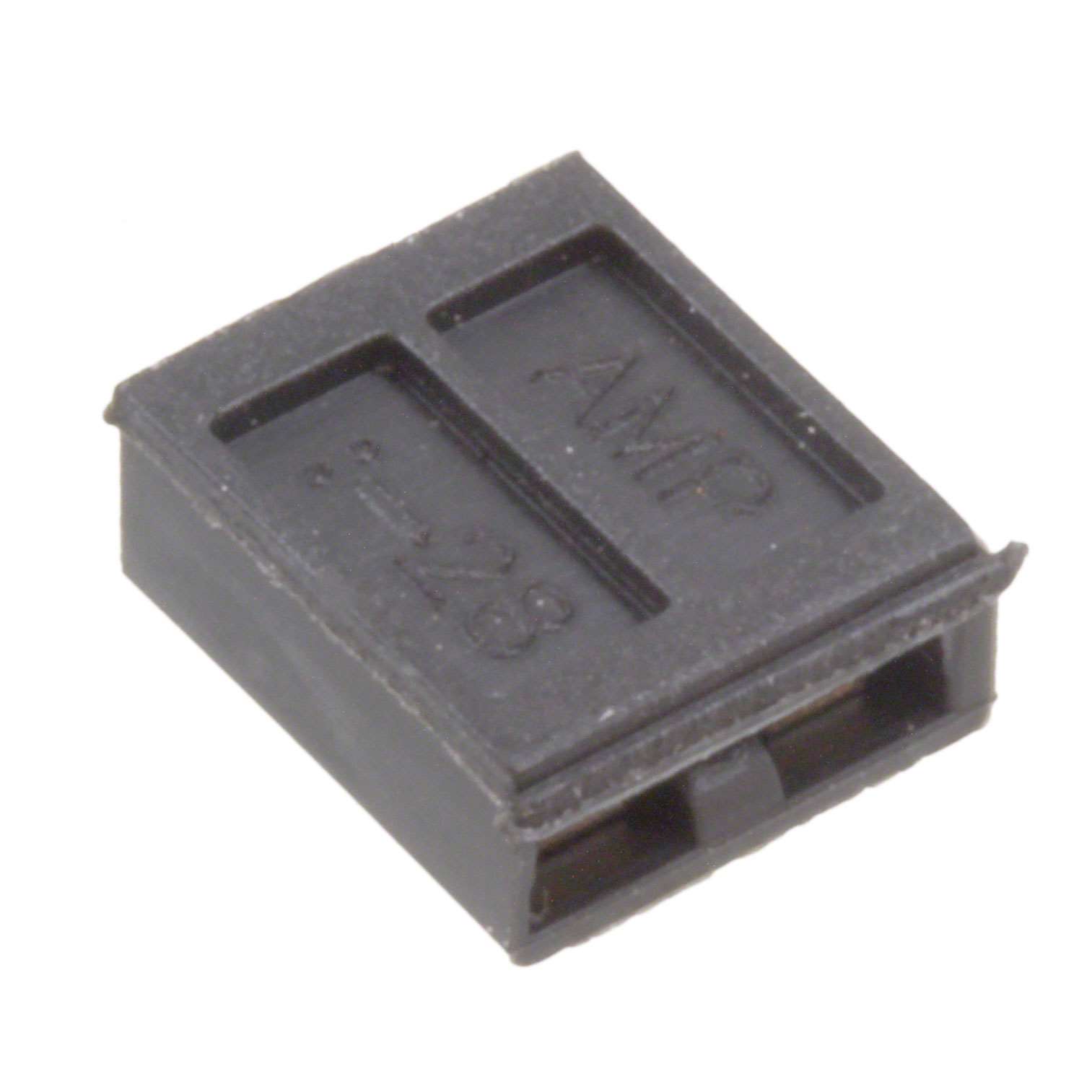

1-881545-4
|
TE Connectivity AMP Connectors | AMP SHUNT ASS'Y | 6526 | $0.25 | |

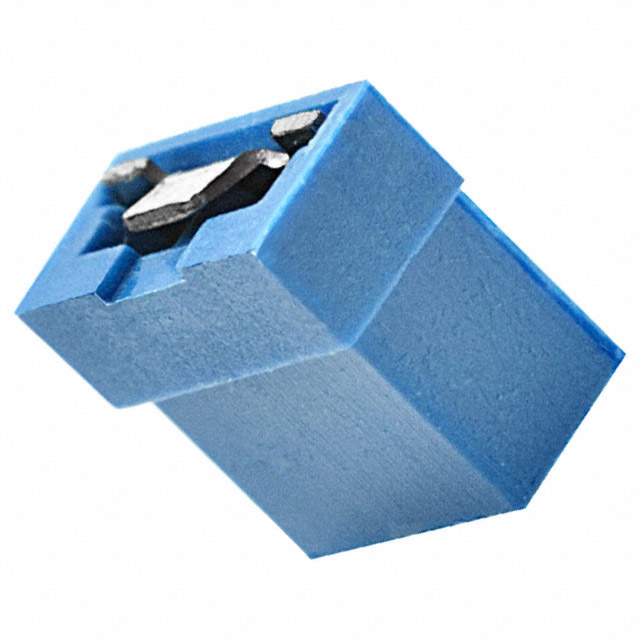

SNT-100-BL-T
|
Samtec, Inc. | SHUNT & JUMPERS | 3730 | $0.24 | |

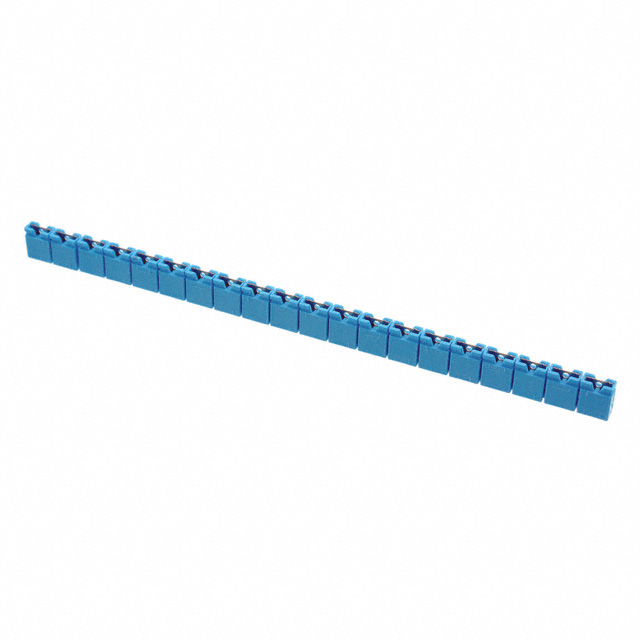

929952-10
|
3M | CONN SHUNT .100 1=STRIP OF 20PCS | 472 | $5.20 | |

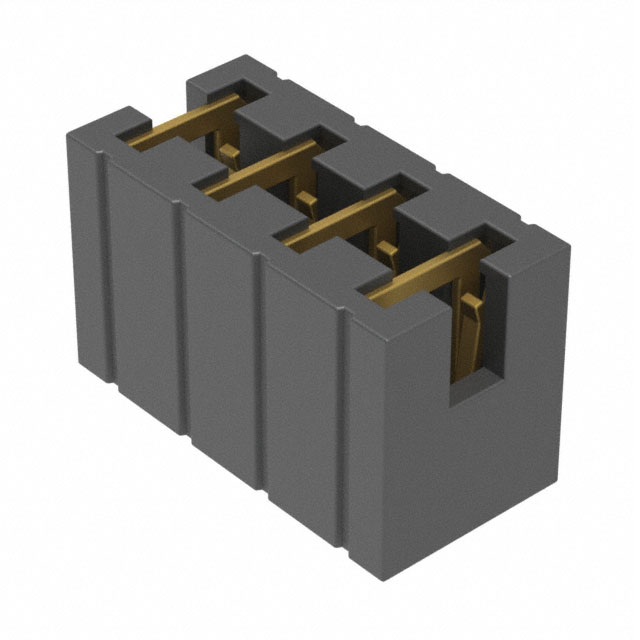

MNT-104-BK-G
|
Samtec, Inc. | .100 C.L. SHUNT STRIP | 3628 | $1.38 | |
D3089-98
|
Harwin Inc. | 1MM INSULATED SHORTING PLUG | 1502 | $1.08 |
