Shunts, Jumpers
Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
M22-1930005
|
Harwin Inc. | OPEN TOP JUMPER SOCKET | 1174 | $0.33 | |

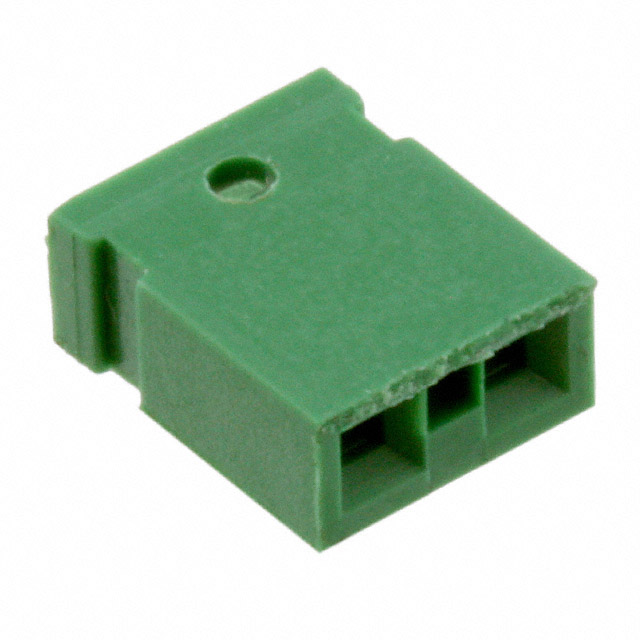

FDC02SXNN
|
Sullins Connector Solutions | HI-TEMP CONN SHUNT GREEN .100 | 889 | $6.50 | |

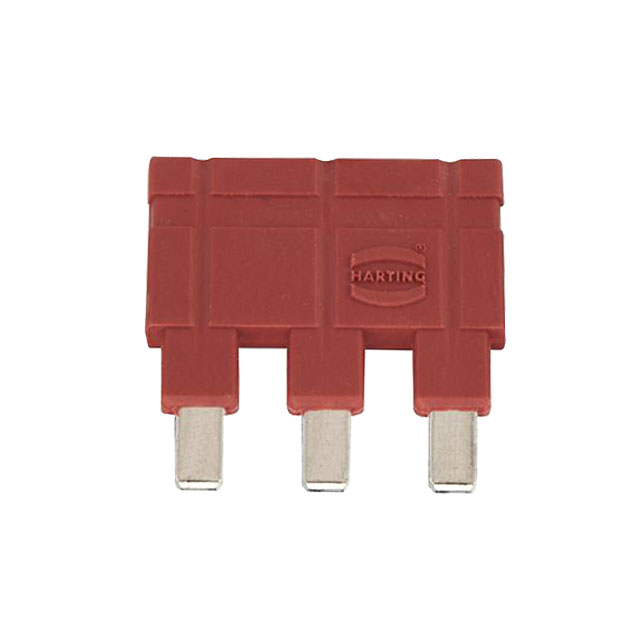

09330009831
|
HARTING | JUMPER ACROSS 1X3 RED 16A | 288 | $3.40 | |
826853-1
|
TE Connectivity AMP Connectors | SHUNT ASSEMBLY | 3407 | $3.33 | |

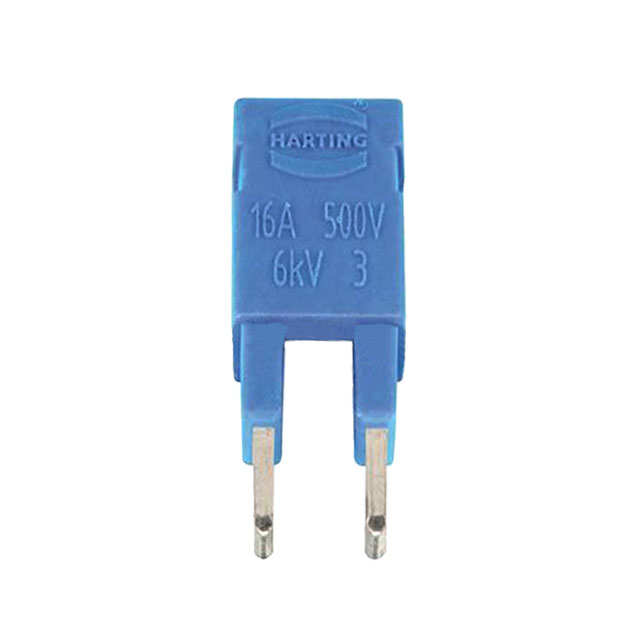

09330009821
|
HARTING | JUMPER ACROSS 2X1 BLUE 16A | 160 | $3.05 | |

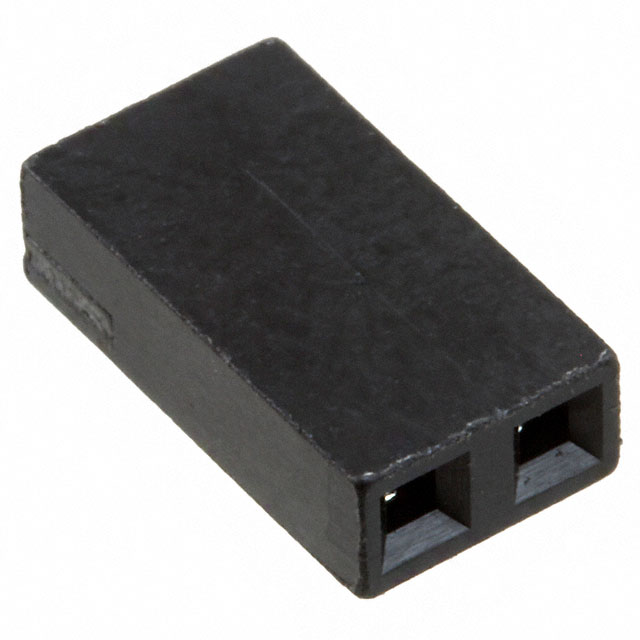

1461B
|
Keystone Electronics | PLUG SHORTING INSULATED BLACK | 2417 | $2.05 | |
827914-1
|
TE Connectivity AMP Connectors | 2P SHUNTSTECKER | 3470 | $1.38 | |
2-530153-2
|
TE Connectivity AMP Connectors | SHUT 2POS .100" TANDUM SPRING | 4890 | $1.36 | |
142270-1
|
TE Connectivity AMP Connectors | SHUNT MOD.IV OPEN-TOP 2POS | 4002 | $1.24 | |
382575-3
|
TE Connectivity AMP Connectors | CONN MINI-SHUNT 2MM 2POS GOLD | 4000 | $0.97 |
