Shunts, Jumpers
Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
65474-010
|
Amphenol ICC (FCI) | MINI JUMP 2POS .100" | 10057 | $0.40 | |
MSBG-04-G
|
Adam Tech | GANG SHUNT 4P 2.54MM PITCH | 1975 | $0.33 | |

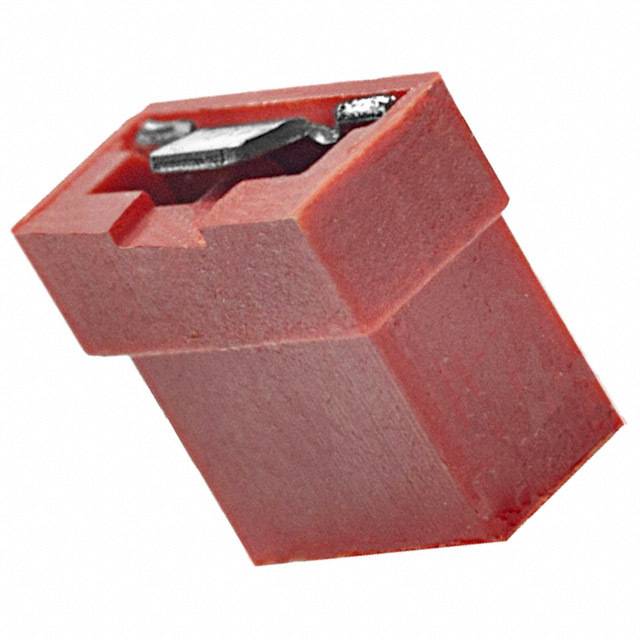

M22-1920046
|
Harwin Inc. | CONN JUMPER SHORTING TIN RED | 10375 | $0.33 | |
M7565-05
|
Harwin Inc. | OPEN TOP JUMPER SOCKET | 2498 | $0.28 | |
|
MSBG-03-G
|
Adam Tech | GANG SHUNT 3P 2.54MM PITCH | 1015 | $0.24 | |
|
68786-102
|
Amphenol ICC (FCI) | 1X2 LOW PROFILE JUMPER | 26817 | $0.21 | |
MSC-G
|
Adam Tech | SHUNT 2.54MM PITCH | 2455 | $0.18 | |
|
MSA-G
|
Adam Tech | SHUNT 2.54MM PITCH | 3849 | $0.15 | |
MSBG-02-G
|
Adam Tech | GANG SHUNT 2P 2.54MM PITCH | 3945 | $0.15 | |
|
MSBH-G
|
Adam Tech | SHUNT 2.54MM PITCH | 4950 | $0.15 |
