IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
APT35GP120JDQ2
|
Microsemi Corporation | IGBT 1200V 64A 284W SOT227 | 0 | $0.00 | |
APT200GN60JG
|
Microsemi Corporation | IGBT 600V 283A 682W SOT227 | 0 | $0.00 | |
|
APT200GN60JDQ4G
|
Microsemi Corporation | IGBT 600V 283A 682W SOT227 | 0 | $0.00 | |
STGE50NB60HD
|
STMicroelectronics | IGBT N-CHAN 600V 50A ISOTOP | 0 | $0.00 | |

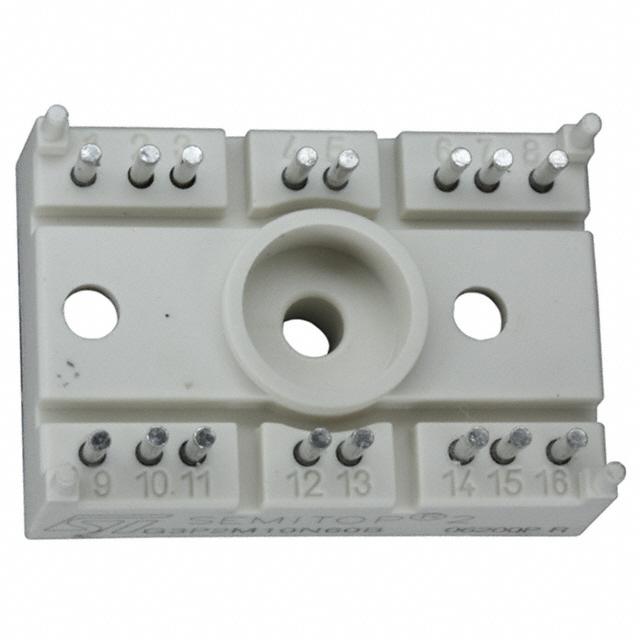

STG3P2M10N60B
|
STMicroelectronics | IGBT N-CHAN 600V 19A SEMITOP2 | 0 | $0.00 | |
FMG2G400US60
|
ON Semiconductor | IGBT MOLDING 600V 400A 7PM-IA | 0 | $0.00 | |
|
FMG2G300US60
|
ON Semiconductor | IGBT MOLDING 600V 300A 7PM-IA | 0 | $0.00 | |
|
FMG2G300US60E
|
ON Semiconductor | IGBT MOLDING 600V 300A 7PM-HA | 0 | $0.00 | |
|
FMG2G150US60
|
ON Semiconductor | IGBT MOLDING 600V 150A 7PM-HA | 0 | $0.00 | |
|
FMS7G15US60
|
ON Semiconductor | IGBT 600V 15A 25PM-AA | 0 | $0.00 |
