IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
FP25R12KT3BOSA1
|
Infineon Technologies | IGBT MODULE VCES 1200V 40A | 0 | $67.82 | |
|
FS75R07U1E4BPSA1
|
Infineon Technologies | MOD IGBT LOW PWR SMART1-1 | 0 | $70.31 | |
|
MWI25-12A7T
|
IXYS | MOD IGBT SIXPACK RBSOA 1200V E2 | 0 | $71.00 | |
|
MUBW25-12A7
|
IXYS | CONVERTER/BRAKE/INVERTER 2.9VCE | 0 | $70.92 | |
|
FS50R12KT3BOSA1
|
Infineon Technologies | MOD IGBT LOW PWR ECONO2-6 | 0 | $74.28 | |
|
APTGLQ75H120T3G
|
Microsemi Corporation | PWR MOD IGBT4 1200V 130A SP3 | 0 | $74.25 | |
|
DDB6U134N16RRB11BPSA1
|
Infineon Technologies | IGBT DDB6U134N16RRB11BPSA1 | 0 | $74.25 | |

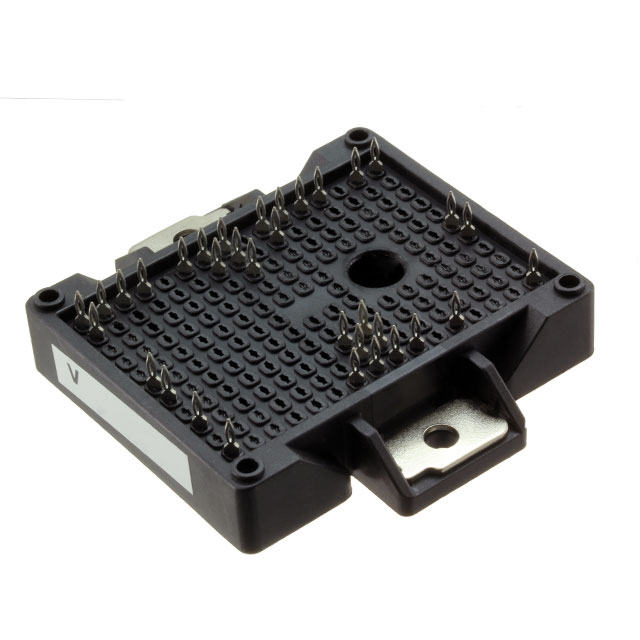

VS-ETF150Y65U
|
Vishay / Semiconductor - Diodes Division | IGBT 650V 150A EMIPAK-2B | 0 | $77.49 | |
|
MIXA225RF1200TSF
|
IXYS | IGBT MODULE 1200V 250A | 0 | $76.84 | |
|
FPF2C8P2NL07A
|
ON Semiconductor | IC LOAD SWITCH 650V 50A | 0 | $76.77 |
