IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
CM100DY-24NF
|
Powerex, Inc. | IGBT MOD DUAL 1200V 100A NF SER | 0 | $0.00 | |
CM100DY-24A
|
Powerex, Inc. | IGBT MOD DUAL 1200V 100A A SER | 0 | $0.00 | |

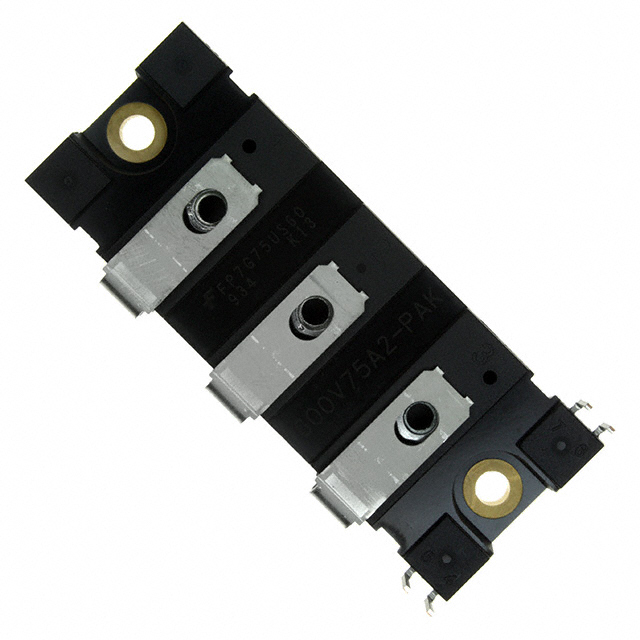

FP7G75US60
|
ON Semiconductor | MODULE IGBT 600V 75A EPM7 | 0 | $0.00 | |
FP7G50US60
|
ON Semiconductor | MODULE IGBT 600V 50A EPM7 | 0 | $0.00 | |
FP7G100US60
|
ON Semiconductor | MODULE SPM 600V 100A EPM7 | 0 | $0.00 | |
APTGV75H60T3G
|
Microsemi Corporation | IGBT NPT BST CHOP FULL BRDG SP3 | 0 | $0.00 | |
|
APTGV50H60T3G
|
Microsemi Corporation | IGBT NPT BST CHOP FULL BRDG SP3 | 0 | $0.00 | |

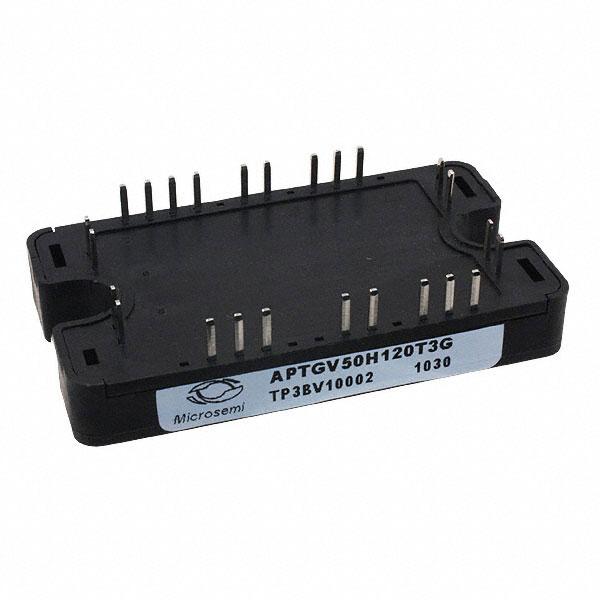

APTGV50H120T3G
|
Microsemi Corporation | IGBT NPT BST CHOP FULL BRDG SP3 | 0 | $0.00 | |
|
APTGV50H120BTPG
|
Microsemi Corporation | IGBT NPT BST CHOP FULL BRDG SP6P | 0 | $0.00 | |
|
APTGV30H60T3G
|
Microsemi Corporation | IGBT NPT BST CHOP FULL BRDG SP3 | 0 | $0.00 |
