IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
APTGF30H60T3G
|
Microsemi Corporation | POWER MOD IGBT NPT FULL BRDG SP3 | 0 | $0.00 | |

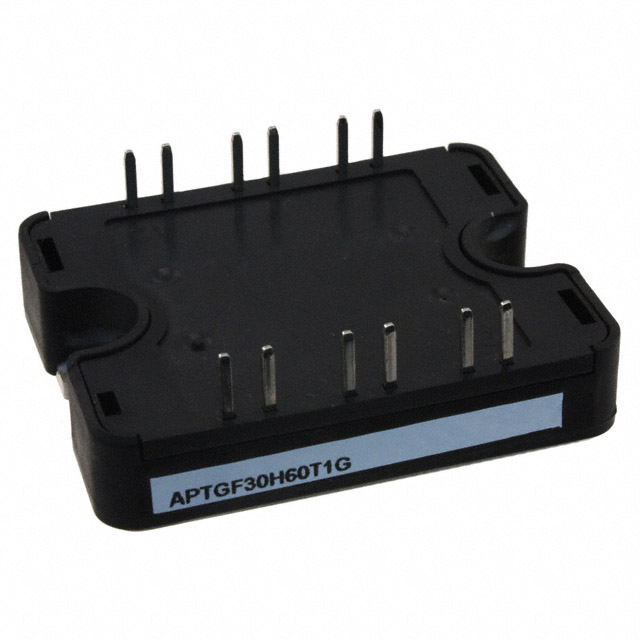

APTGF30H60T1G
|
Microsemi Corporation | IGBT MODULE NPT FULL BRIDGE SP1 | 0 | $0.00 | |
APTGF50SK120TG
|
Microsemi Corporation | IGBT 1200V 75A 312W SP4 | 0 | $0.00 | |
|
APTGF50SK120T1G
|
Microsemi Corporation | IGBT 1200V 75A 312W SP1 | 0 | $0.00 | |

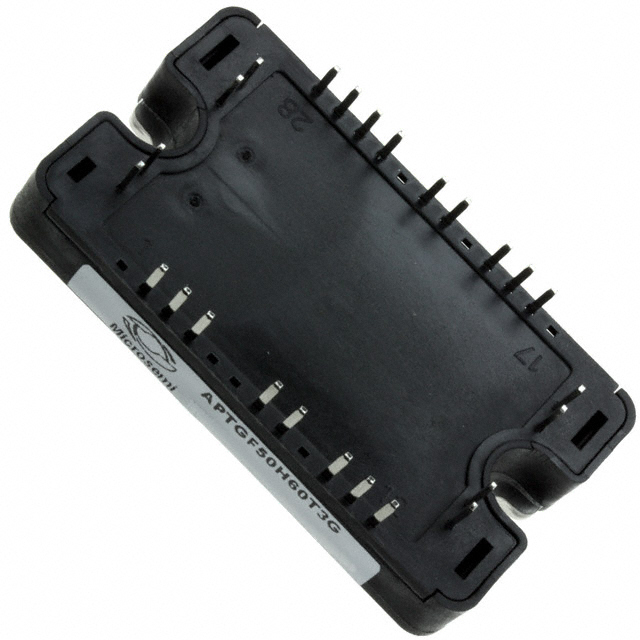

APTGF50H60T3G
|
Microsemi Corporation | POWER MODULE IGBT 600V 50A SP3 | 0 | $0.00 | |
|
APTGF90TA60PG
|
Microsemi Corporation | IGBT MODULE NPT TRPL PHASE SP6P | 0 | $0.00 | |
|
APTGF90SK60TG
|
Microsemi Corporation | IGBT 600V 110A 416W SP4 | 0 | $0.00 | |
|
APTGF90SK60T1G
|
Microsemi Corporation | IGBT 600V 110A 416W SP1 | 0 | $0.00 | |
|
APTGT150DA120D1G
|
Microsemi Corporation | IGBT 1200V 220A 700W D1 | 0 | $0.00 | |
|
APTGT150A60TG
|
Microsemi Corporation | IGBT MODULE TRENCH PHASE LEG SP4 | 0 | $0.00 |
