IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

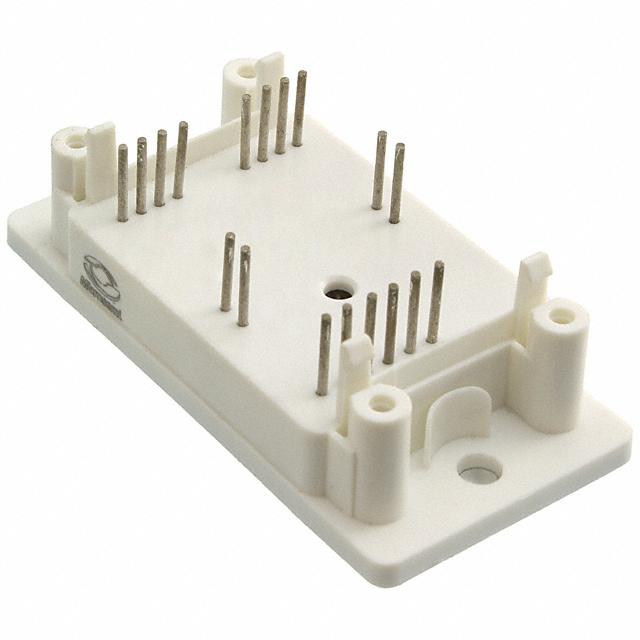

APTGV50H60BT3G
|
Microsemi Corporation | MOD IGBT NPT 600V SP3 | 0 | $54.33 | |
|
F3L15R12W2H3B27BOMA1
|
Infineon Technologies | IGBT MODULE VCES 1200V 15A | 0 | $54.27 | |
|
DF120R12W2H3B27BOMA1
|
Infineon Technologies | IGBT MODULE 800V 50A | 0 | $54.27 | |
VS-GT140DA60U
|
Vishay / Semiconductor - Diodes Division | IGBT 600V 200A 652W SOT-227 | 0 | $54.09 | |
|
MUBW45-12T6K
|
IXYS | MODULE IGBT CBI E1 | 0 | $54.08 | |
APTGT50X60T3G
|
Microsemi Corporation | IGBT TRENCH 3PHASE BRIDGE SP3 | 3 | $54.07 | |
|
APTGLQ40H120T1G
|
Microsemi Corporation | PWR MOD IGBT4 1200V 75A SP1 | 0 | $53.95 | |
APTGT200A602G
|
Microsemi Corporation | POWER MOD IGBT3 PHASE LEG SP2 | 0 | $53.92 | |
|
MIXA40W1200TED
|
IXYS | IGBT MODULE 1200V 40A | 0 | $53.30 | |
|
MID145-12A3
|
IXYS | MOD IGBT RBSOA 1200V 160A Y4-M5 | 0 | $53.11 |
