IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
VS-GB100TP120N
|
Vishay / Semiconductor - Diodes Division | IGBT 1200V 200A 650W INT-A-PAK | 0 | $87.80 | |
|
MG17100S-BN4MM
|
Littelfuse Inc. | IGBT MOD 1700V 100A PKG S CRCT:B | 0 | $87.75 | |
|
F3L200R12W2H3B11BPSA1
|
Infineon Technologies | IGBT MODULE VCES 650V 200A | 0 | $87.60 | |
|
FS100R07N2E4B11BOSA1
|
Infineon Technologies | IGBT MODULE VCES 600V 100A | 0 | $87.16 | |
|
GSID150A120S3B1
|
Global Power Technologies Group | SILICON IGBT MODULES | 0 | $86.72 | |
|
FS100R07N2E4BOSA1
|
Infineon Technologies | IGBT MODULE VCES 600V 100A | 0 | $86.13 | |
|
APTGLQ200A120T3AG
|
Microsemi Corporation | POWER MODULE - IGBT | 0 | $85.77 | |
|
MIXA300PF1200TSF
|
IXYS | IGBT MODULE 1200V 325A | 0 | $85.39 | |
|
MID200-12A4
|
IXYS | MOD IGBT RBSOA 1200V 270A Y3-DCB | 0 | $84.70 | |

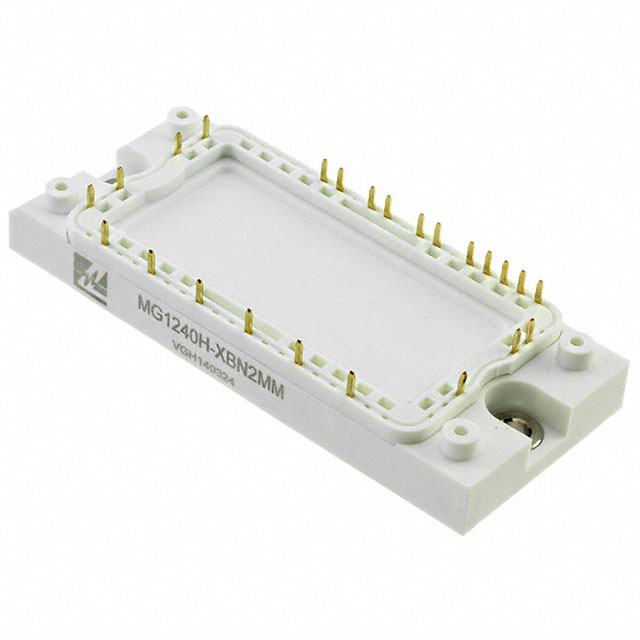

MG1240H-XBN2MM
|
Littelfuse Inc. | IGBT MOD 1200V 40A PKG H CRCT:XB | 0 | $84.37 |
