IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

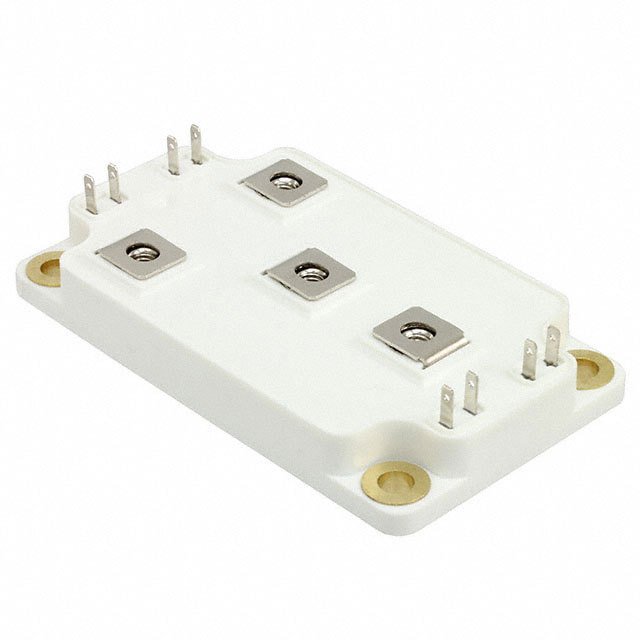

APTGT750U60D4G
|
Microsemi Corporation | IGBT 600V 1000A 2300W D4 | 0 | $124.50 | |
|
MUBW50-17T8
|
IXYS | MODULE IGBT CBI E3 | 0 | $124.16 | |
|
FP100R07N3E4B11BOSA1
|
Infineon Technologies | IGBT MODULE VCES 600V 100A | 0 | $124.06 | |
|
FD300R12KS4B5HOSA1
|
Infineon Technologies | IGBT MODULE VCES 600V 300A | 0 | $123.79 | |
|
FD300R12KS4HOSA1
|
Infineon Technologies | IGBT MODULE VCES 600V 300A | 0 | $123.79 | |
|
APTGT50H170TG
|
Microsemi Corporation | IGBT MOD TRENCH FULL BRIDGE SP4 | 0 | $123.04 | |
|
MWI75-12A8
|
IXYS | MOD IGBT SIXPACK RBSOA 1200V E3 | 0 | $122.97 | |
|
MG17150D-BN4MM
|
Littelfuse Inc. | IGBT MOD 1700V 150A PKG D CRCT:B | 0 | $122.82 | |
APTGLQ200HR120G
|
Microsemi Corporation | PWR MOD PHASE LEG/DUAL CE SP6 | 0 | $122.75 | |
|
GSID100A120T2C1A
|
Global Power Technologies Group | SILICON IGBT MODULES | 0 | $122.66 |
