Full Half-Bridge Drivers
Devices in the bridge driver PMIC (Power Management Integrated Circuit) family incorporate two or more power transistors along with circuitry required to operate them as switches under the control of an external device. The transistors are typically configured internally in series-connected pairs known as half-bridges, such that the junction between any given pair can be connected to either of two power supply rails. They are commonly used to translate low-level signals provided by a control device such as a microcontroller into the higher power signals required to operate an actuator such as a stepper or brushless motor.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
CSD97395Q4M
|
Texas Instruments | IC SYNC BUCK NEXFET 8VSON | 14111 | $0.00 | |
|
CSD97394Q4M
|
Texas Instruments | IC POWERSTAGE SYNC BUCK 8VSON | 18596 | $0.00 | |

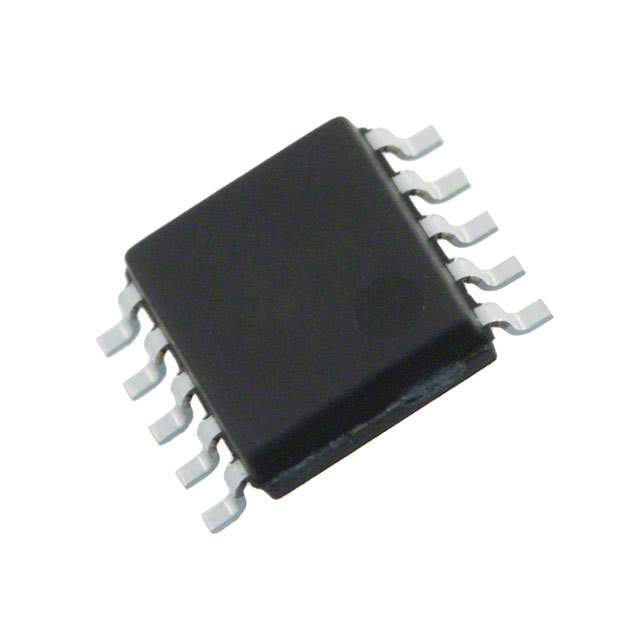

A3909GLYTR-T
|
Allegro MicroSystems, LLC. | IC MOTOR DRIVER PAR 10MSOP | 14931 | $1.56 | |
LV8548MC-AH
|
ON Semiconductor | IC MOTOR DRIVER PAR MFP10S | 19053 | $0.00 | |
TLC6C5912GQPWRQ1
|
Texas Instruments | IC LED DRVR 12BIT 20TSSOP | 168 | $0.00 | |

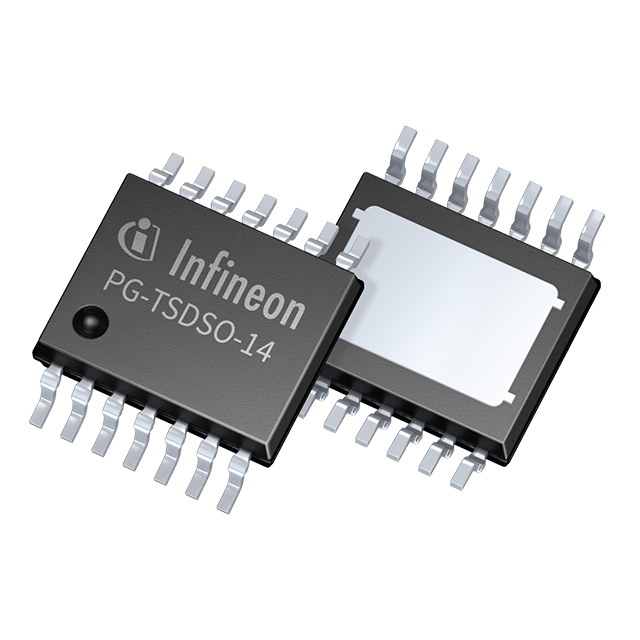

TLD11141EPXUMA1
|
Infineon Technologies | LITIX | 3000 | $0.00 | |
TPS92630QPWPRQ1
|
Texas Instruments | IC N-CH CTRLR LED DRVR 16HTSSOP | 12221 | $0.00 | |

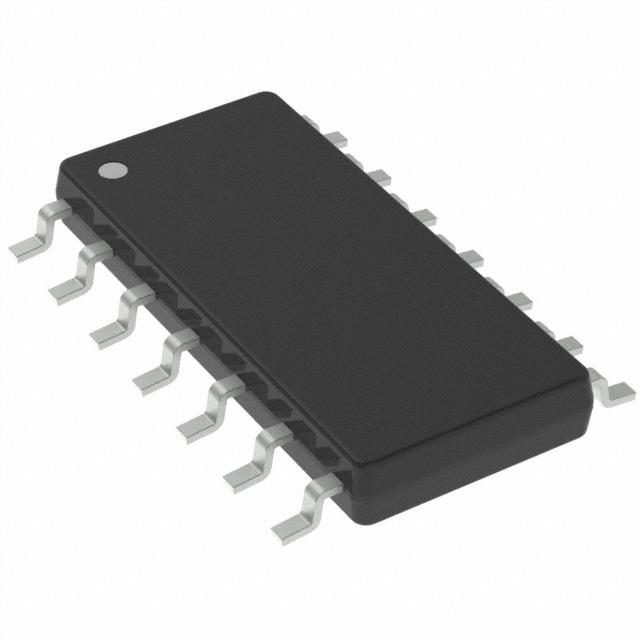

ATA6826C-TUQY-66
|
Microchip Technology | IC MOTOR DRIVER 4.75V-5.25V 14SO | 0 | $0.00 | |
ATA6826N-TUQY
|
Microchip Technology | IC MOTOR DRVR 4.75V-5.25V 14SOIC | 0 | $0.00 | |
UC3625N
|
Texas Instruments | IC MOTOR DRIVER 10V-18V 28DIP | 0 | $0.00 |
