Full Half-Bridge Drivers
Devices in the bridge driver PMIC (Power Management Integrated Circuit) family incorporate two or more power transistors along with circuitry required to operate them as switches under the control of an external device. The transistors are typically configured internally in series-connected pairs known as half-bridges, such that the junction between any given pair can be connected to either of two power supply rails. They are commonly used to translate low-level signals provided by a control device such as a microcontroller into the higher power signals required to operate an actuator such as a stepper or brushless motor.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

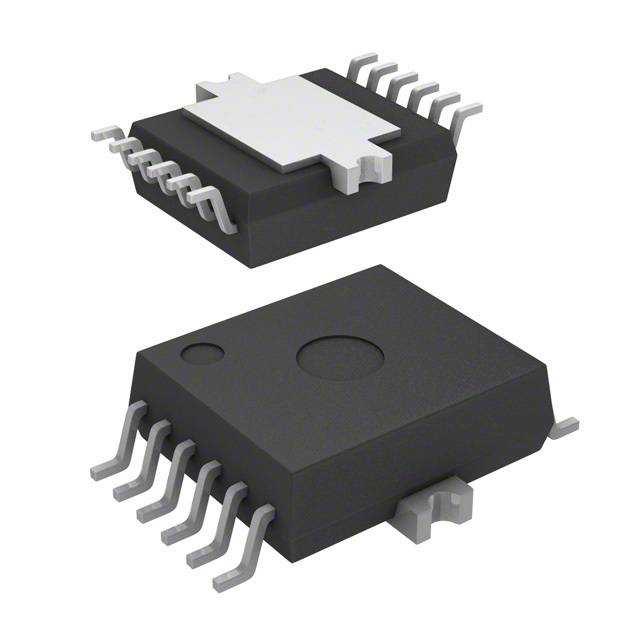

TLE9201SGAUMA1
|
Infineon Technologies | IC DRIVER 12DSO | 2759 | $0.00 | |
CSD95372AQ5M
|
Texas Instruments | IC SYNC BUCK NEXFET 12SON | 18350 | $0.00 | |
ISL55110IRZ-T7A
|
Renesas Electronics America Inc. | MOSFET DRIVER DUAL HS 16QFN | 2741 | $0.00 | |
FDMF5820DC
|
ON Semiconductor | IC SPS HALF-BRIDGE DRVR 31PQFN | 3473 | $0.00 | |

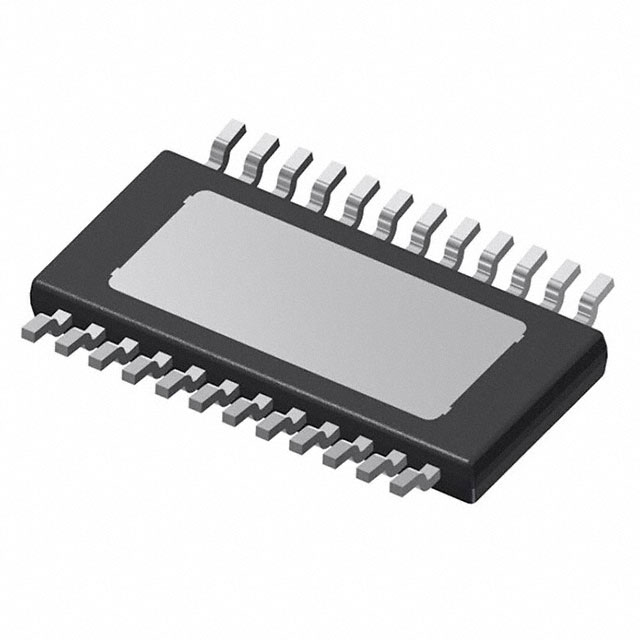

TLE94106ESXUMA1
|
Infineon Technologies | IC DRIVER HALF-BRIDGE 24TSDSO | 4644 | $0.00 | |
FDMF6820A
|
ON Semiconductor | MODULE DRMOS 60A 40-PQFN | 6177 | $0.00 | |
NCP5339MNTXG
|
ON Semiconductor | IC MOSFET DVR HI/LO SIDE 40QFN | 9015 | $0.00 | |
NCP5369MNR2G
|
ON Semiconductor | IC REG BUCK SYNC 35A 40QFN | 8067 | $0.00 | |
BD6221F-E2
|
ROHM Semiconductor | IC MOTOR DRIVER PAR 8SOP | 15472 | $0.00 | |
CSD97374Q4M
|
Texas Instruments | IC SYNC BUCK NEXFET 8VSON | 20553 | $0.00 |
