Wireless Charging Coils
Wireless charging coils generate an alternating electromagnetic field used to inductively transfer energy to other coils positioned parallel and in close proximity. The energy is used to charge batteries or run the device receiving the energy. The coils may be designed as receivers, transmitters or dual purpose having single or multiple coils and multiple layers of windings. They are rated by their inductance, self resonant frequency, saturation current and Q factor at a given frequency.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

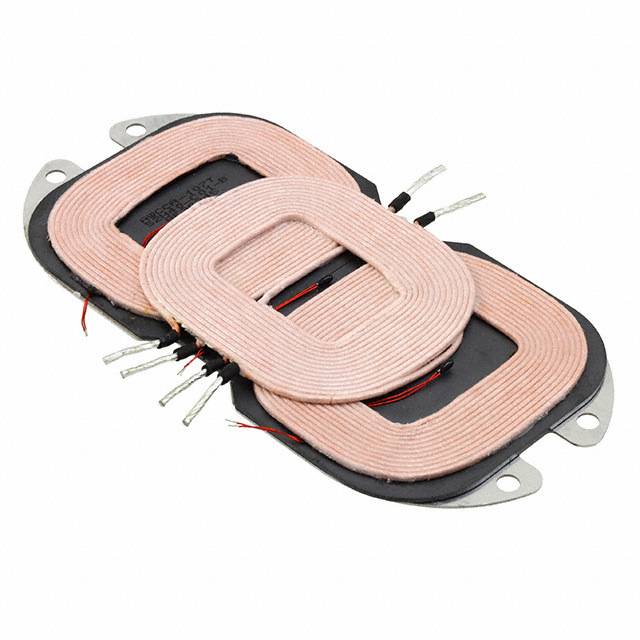

AWCCA-107T52H40-C01-B
|
Abracon LLC. | TX 3 COIL 1 LAYER 11.5UH 12UH | 60 | $10.58 | |
AWCCA-50N50H40-C02-B
|
Abracon LLC. | RX TX 1 COIL 1 LAYER 6.3UH 11.1A | 43 | $8.22 | |
AWCCA-53N53H50-C02-B
|
Abracon LLC. | RX TX 1 COIL 1 LAYER 6.3UH 11A | 74 | $8.22 | |
AWCCA-50N50H50-C01-B
|
Abracon LLC. | RX TX 1 COIL 1 LAYER 24UH 5.7A | 87 | $8.22 | |
AWCCA-50N50H40-C01-B
|
Abracon LLC. | RX TX 1 COIL 1 LAYER 24UH 5.7A | 88 | $8.22 | |
AWCCA-50N50H50-C02-B
|
Abracon LLC. | RX TX 1 COIL 1 LAYER 6.3UH 10.6A | 95 | $8.22 | |
AWCCA-50N50H16-C51-B
|
Abracon LLC. | RX TX 1 COIL 1 LAYER 12.5UH | 71 | $8.07 | |
AWCCA-50N50H30-C21-B
|
Abracon LLC. | RX TX 1 COIL 1 LAYER 6.3UH | 87 | $7.78 | |
AWCCA-47R38H08-C01-B
|
Abracon LLC. | RX 1 COIL 1 LAYER 11.5UH | 73 | $6.48 | |
AWCCA-37R37H18-C01-B
|
Abracon LLC. | RECEIVER COIL, 1 COIL, 10UH | 50 | $5.88 |
