Wireless Charging Coils
Wireless charging coils generate an alternating electromagnetic field used to inductively transfer energy to other coils positioned parallel and in close proximity. The energy is used to charge batteries or run the device receiving the energy. The coils may be designed as receivers, transmitters or dual purpose having single or multiple coils and multiple layers of windings. They are rated by their inductance, self resonant frequency, saturation current and Q factor at a given frequency.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

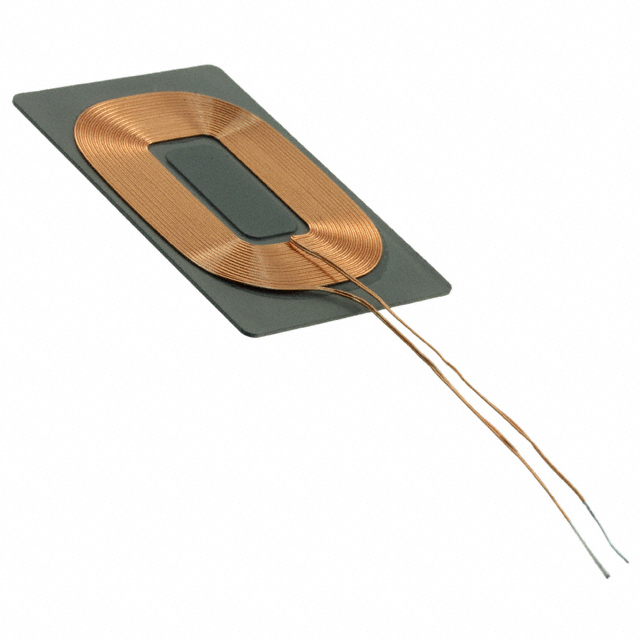

AWCCA-12R12H11-C01-B
|
Abracon LLC. | RX 1 COIL 1 LAYER 8UH | 25 | $3.82 | |

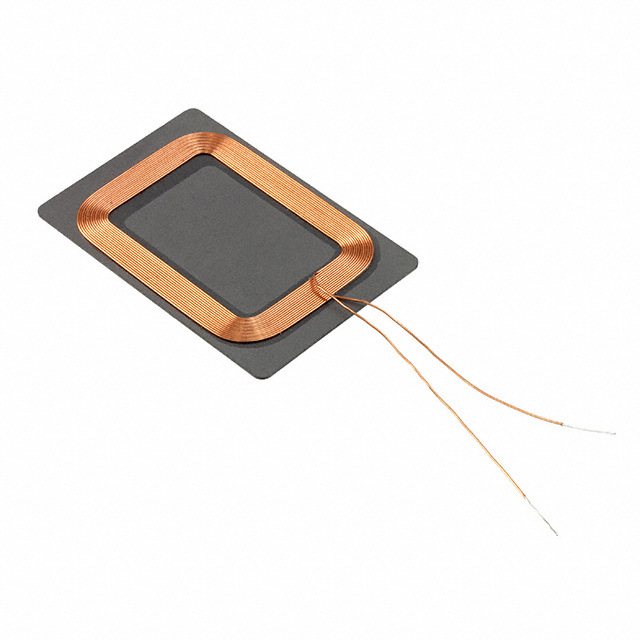

IWAS4832FEEB150J50
|
Vishay / Dale | RX 1 COIL 1 LAYER 16.2UH | 0 | $3.33 | |
IWAS4832ECEB160J50
|
Vishay / Dale | RX 1 COIL 1 LAYER 16.2UH | 0 | $2.66 | |
IWAS4832FFEB9R7J50
|
Vishay / Dale | RX 1 COIL 1 LAYER BIFILAR 9.7UH | 0 | $4.44 | |
|
IWAS4832ECEB220J50
|
Vishay / Dale | RX 1 COIL 1 LAYER 22UH | 0 | $2.61 | |

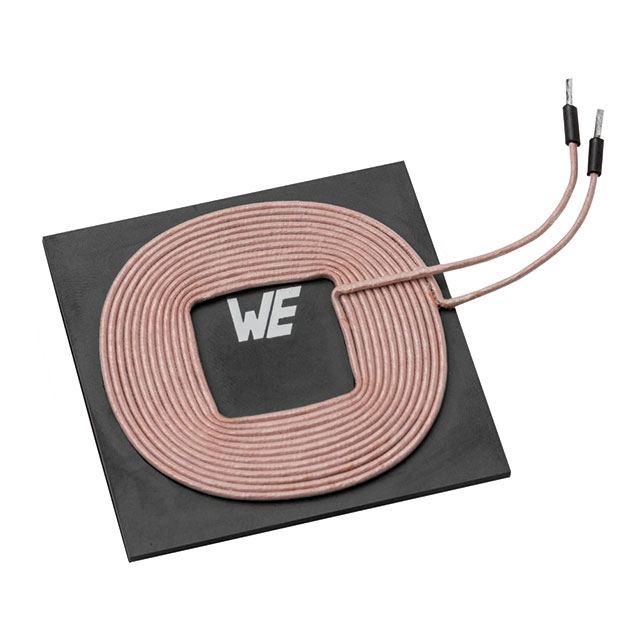

760308103146
|
Wurth Electronics Inc. | WE-WPCC WIRELESS POWER CHARGING | 17 | $17.10 | |

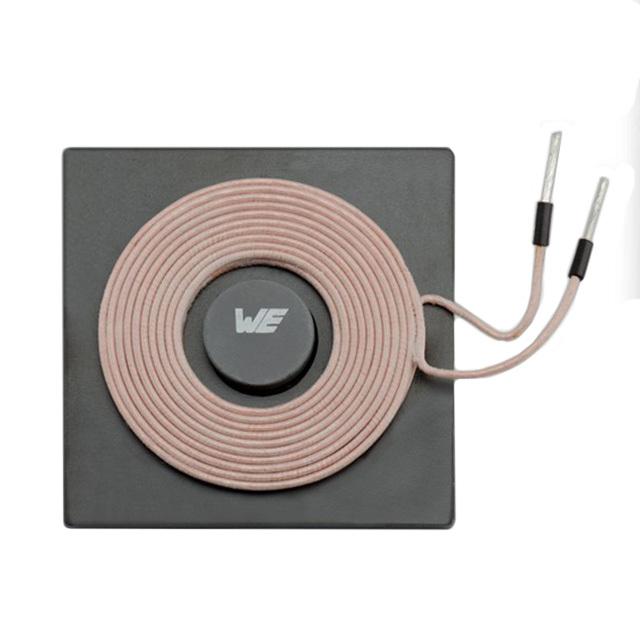

760308103102
|
Wurth Electronics Inc. | TX 1 COIL 1 LAYER 10UH 7A | 13 | $11.71 | |
WT-1005660-12K2-A6-G
|
TDK Corporation | TX 3 COIL 1 LYR 12.5UH/11.5UH | 5 | $17.40 | |
760308141
|
Wurth Electronics Inc. | TX 1 COIL 1 LAYER 10UH 9A | 0 | $22.55 | |
760308100143
|
Wurth Electronics Inc. | TX 1 COIL 1 LAYER 6UH 12A | 3 | $20.08 |
