Wireless Charging Coils
Wireless charging coils generate an alternating electromagnetic field used to inductively transfer energy to other coils positioned parallel and in close proximity. The energy is used to charge batteries or run the device receiving the energy. The coils may be designed as receivers, transmitters or dual purpose having single or multiple coils and multiple layers of windings. They are rated by their inductance, self resonant frequency, saturation current and Q factor at a given frequency.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

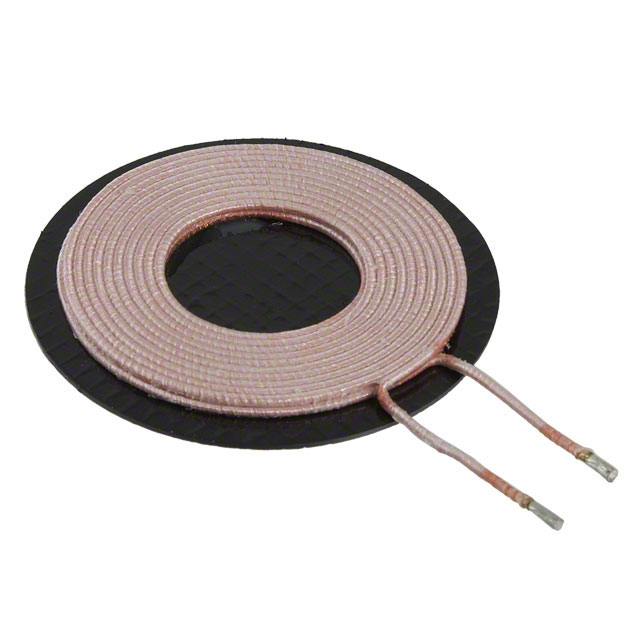

WR464650-10K2-FS3
|
TDK Corporation | RX 1 COIL, 1 LYR 7.3UH | 87 | $9.42 | |

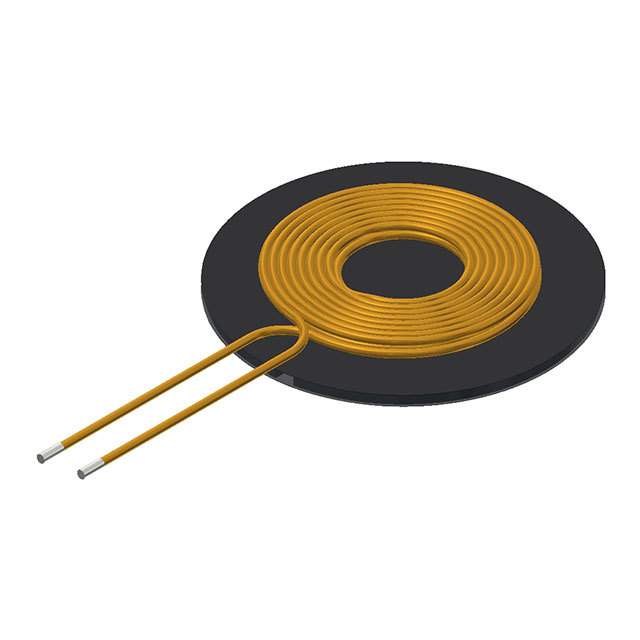

WT282890-16F2-G
|
TDK Corporation | TX 1 COIL 2 LYR 7.4UH | 94 | $6.63 | |

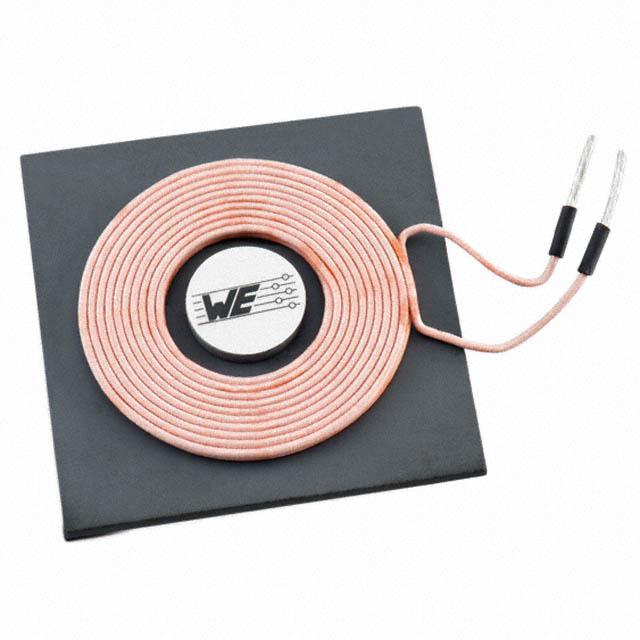

760308104120
|
Wurth Electronics Inc. | WE-WPCC WIRELESS POWER CHARGING | 15 | $28.88 | |

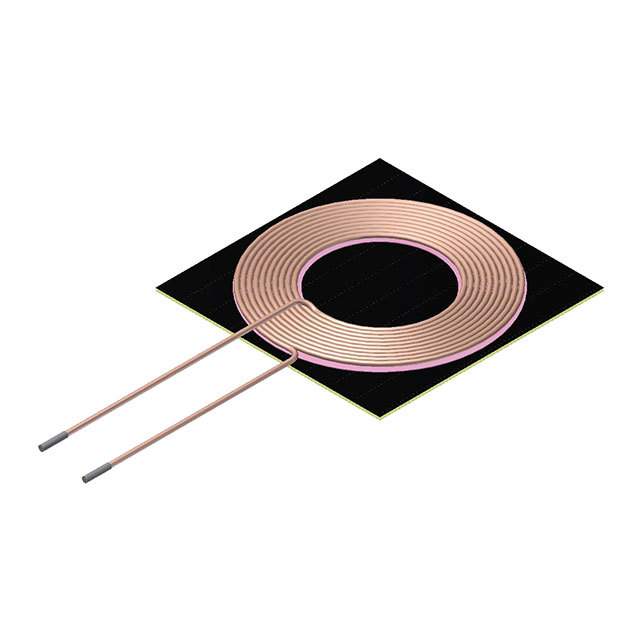

WT-505060-20K2-A10-G
|
TDK Corporation | TX 1 COIL 2 LYR 24UH | 37 | $13.13 | |

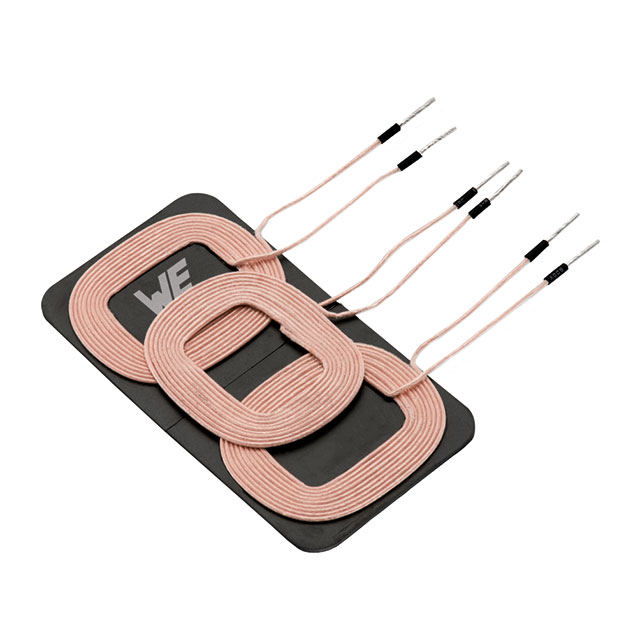

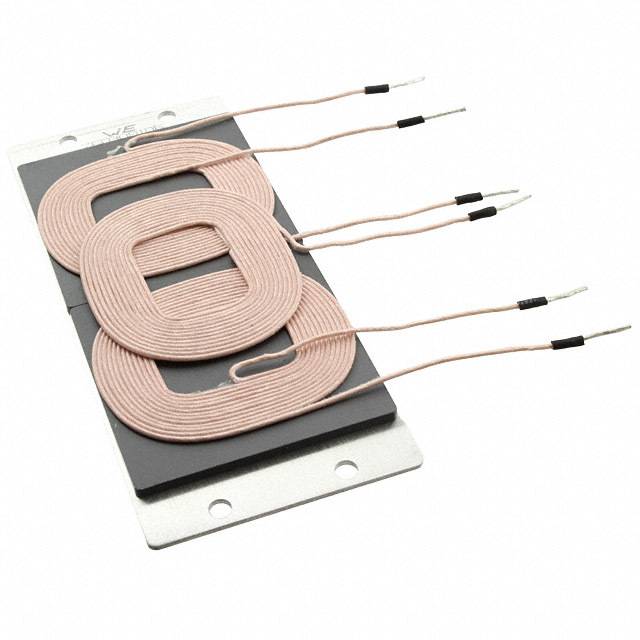

760308106
|
Wurth Electronics Inc. | TX 3 COIL 1 LAYER 10A | 16 | $33.00 | |

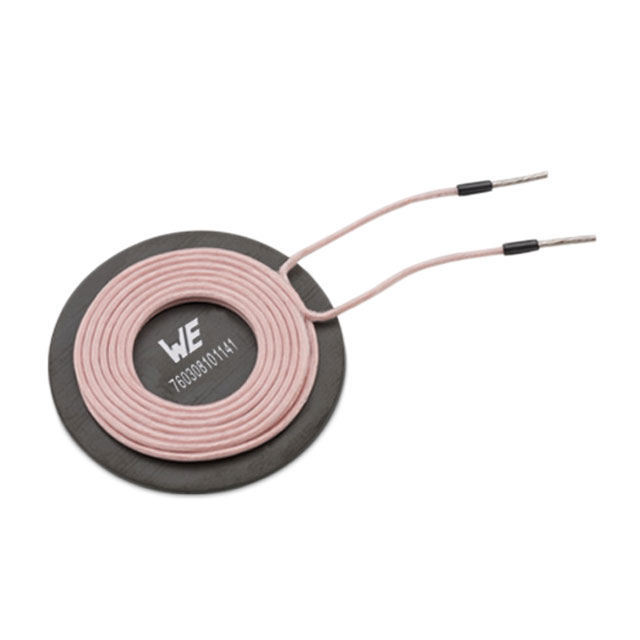

760308100141
|
Wurth Electronics Inc. | TX 1 COIL 1 LAYER 10UH 9A | 73 | $22.55 | |

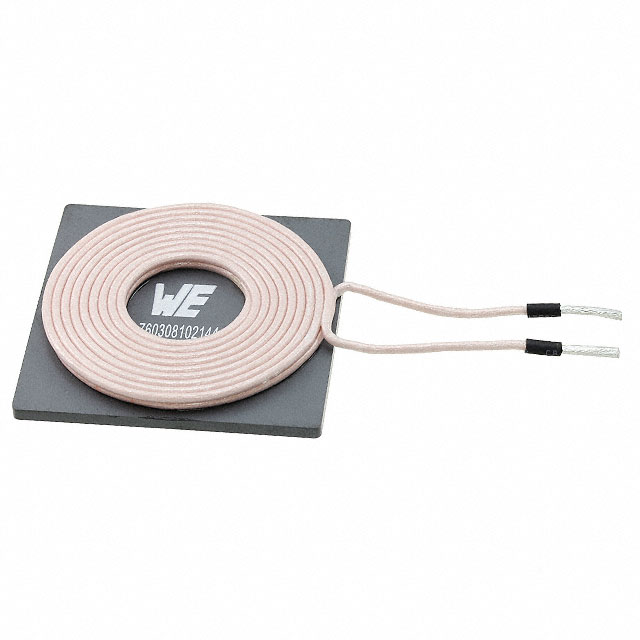

760308102144
|
Wurth Electronics Inc. | WE-WPCC WIRELESS POWER CHARGING | 39 | $21.32 | |
760308102142
|
Wurth Electronics Inc. | TX 1 COIL 1 LAYER 5.8UH 18A | 43 | $20.08 | |

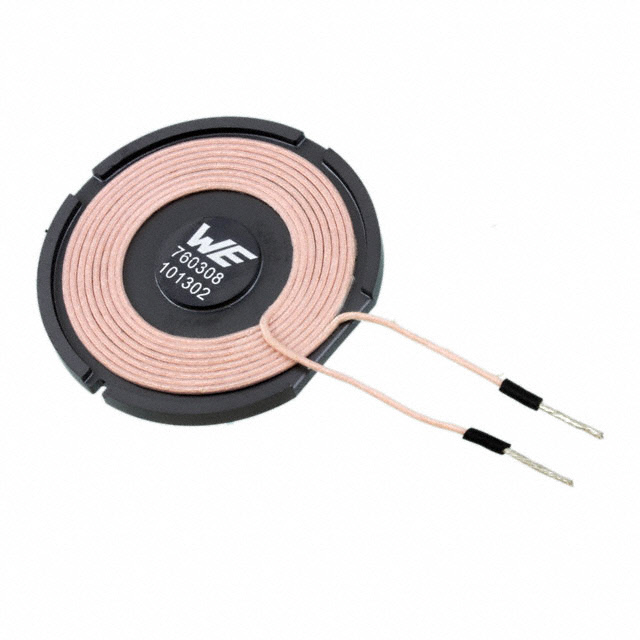

760308101302
|
Wurth Electronics Inc. | TX 1 COIL 1 LAYER 5.3UH 8A | 27 | $20.02 | |
760308101
|
Wurth Electronics Inc. | TX 1 COIL 1 LAYER 24UH 6A | 59 | $17.60 |
