Crystals
Crystal products are passive components most commonly used as time or frequency references in electronic systems. Consisting of a piezoelectric crystal that mechanically vibrates at a known frequency, their use requires provision of an external oscillator circuit with carefully designed capacitance, drive voltage, and series resistance characteristics, to generate a signal at the indicated crystal frequency that operates successfully over the operating temperature range, without damaging the crystal element. Active devices which integrate this additional necessary circuitry are considered oscillators and are catalogued separately.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

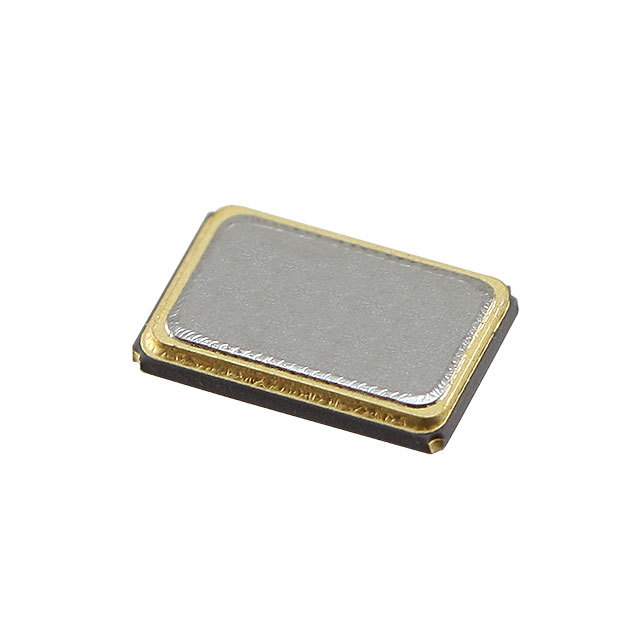

ECS-250-18-23A-EN-TR
|
ECS Inc. | CRYSTAL 25.0000MHZ 18PF SMD | 10589 | $1.12 | |
ECS-240-20-23A-EN-TR
|
ECS Inc. | CRYSTAL 24.0000MHZ 20PF SMD | 7095 | $0.00 | |

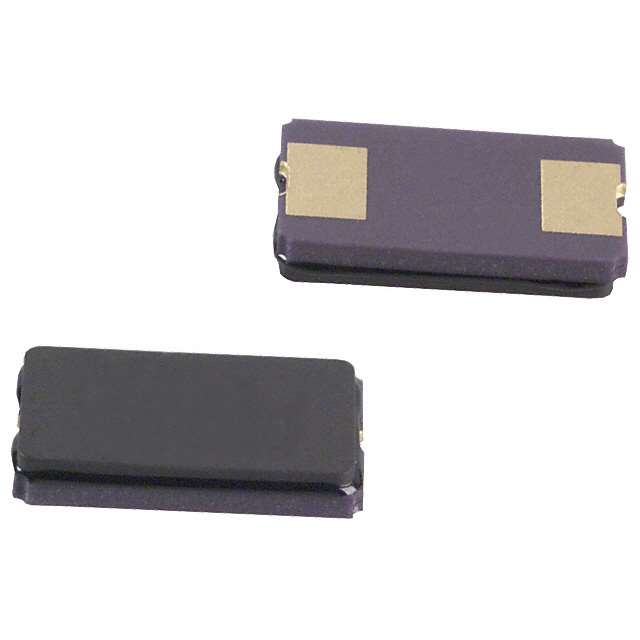

ECS-80-18-5PDN-TR
|
ECS Inc. | CRYSTAL 8.0000MHZ 18PF SMD | 3000 | $0.58 | |

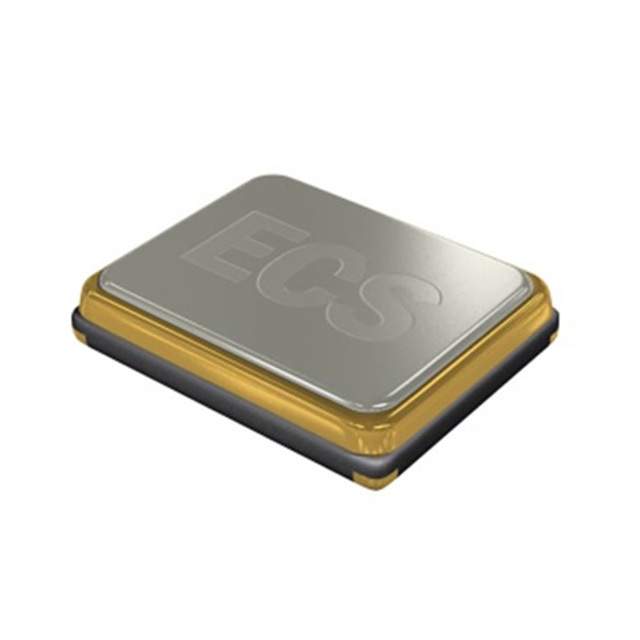

ECS-320-8-30B-CKM
|
ECS Inc. | CRYSTAL 32.0000MHZ 8PF SMD | 5960 | $0.00 | |
|

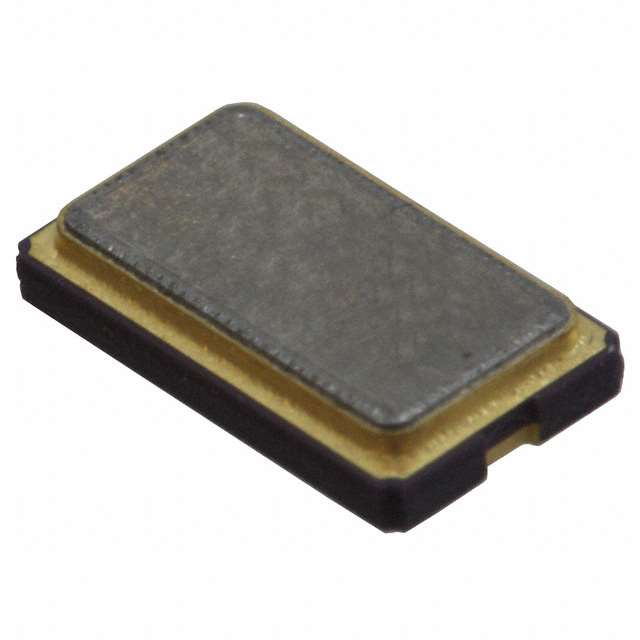

ECS-36-20-5PDN-TR
|
ECS Inc. | CRYSTAL 3.6864MHZ 20PF SMD | 2793 | $1.12 | |
|
ECS-184-18-23A-EN-TR
|
ECS Inc. | CRYSTAL 18.4320MHZ 18PF SMD | 2563 | $0.00 | |
ECS-192-18-33-JGN-TR
|
ECS Inc. | CRYSTAL 19.2000MHZ 18PF SMD | 1000 | $0.29 | |
ECS-120-10-36-AGY-TR
|
ECS Inc. | CRYSTAL 12MHZ 10PF SMD | 1845 | $0.00 | |
ECS-240-8-37CKM
|
ECS Inc. | CRYSTAL 24.0000MHZ 8PF SMD | 19091 | $1.14 | |
ECS-270-10-33B-CKM-TR
|
ECS Inc. | CRYSTAL 27MHZ 10PF SMD | 1794 | $0.00 |
