Crystals

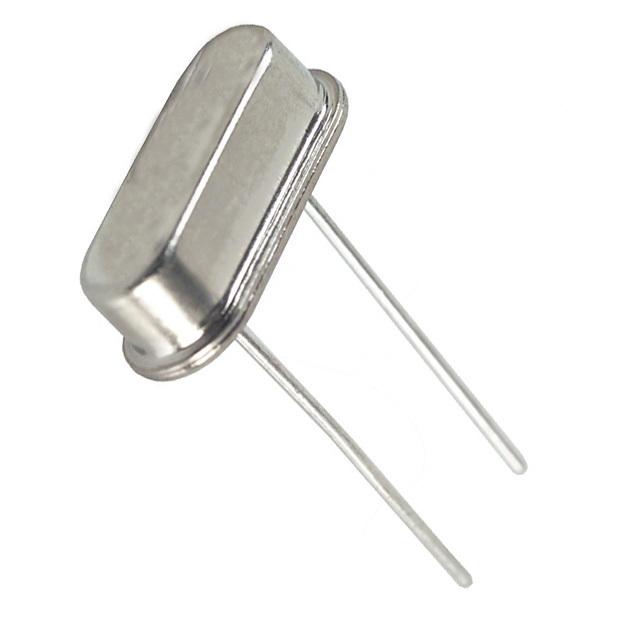

Crystal products are passive components most commonly used as time or frequency references in electronic systems. Consisting of a piezoelectric crystal that mechanically vibrates at a known frequency, their use requires provision of an external oscillator circuit with carefully designed capacitance, drive voltage, and series resistance characteristics, to generate a signal at the indicated crystal frequency that operates successfully over the operating temperature range, without damaging the crystal element. Active devices which integrate this additional necessary circuitry are considered oscillators and are catalogued separately.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
ECS-80-S-1X
|
ECS Inc. | CRYSTAL 8.0000MHZ SERIES T/H | 239 | $0.60 | |
|
ECS-35-17-1X
|
ECS Inc. | CRYSTAL 3.579545MHZ 17PF T/H | 741 | $0.60 | |
|
ECS-160-20-1
|
ECS Inc. | CRYSTAL 16.0000MHZ 20PF T/H | 755 | $0.60 | |
ECS-400-18-4XEN
|
ECS Inc. | CRYSTAL 40.0000MHZ 18PF T/H | 196 | $0.66 | |
MP160B
|
CTS-Frequency Controls | CRYSTAL 16.0000MHZ 18PF T/H | 481 | $0.66 | |
MP100
|
CTS-Frequency Controls | CRYSTAL 10.0000MHZ SERIES T/H | 563 | $0.66 | |
ECS-90-S-4
|
ECS Inc. | CRYSTAL 9.0000MHZ SERIES T/H | 132 | $0.69 | |
|
ECS-196.6-20-4
|
ECS Inc. | CRYSTAL 19.6608MHZ 20PF T/H | 135 | $0.69 | |
|
ECS-60-32-4
|
ECS Inc. | CRYSTAL 6.0000MHZ 32PF T/H | 147 | $0.69 | |
FC4STCBMF14.31818-BAG200
|
Fox Electronics | CRYSTAL 14.31818MHZ 20PF T/H | 693 | $0.35 |
