Crystals
Crystal products are passive components most commonly used as time or frequency references in electronic systems. Consisting of a piezoelectric crystal that mechanically vibrates at a known frequency, their use requires provision of an external oscillator circuit with carefully designed capacitance, drive voltage, and series resistance characteristics, to generate a signal at the indicated crystal frequency that operates successfully over the operating temperature range, without damaging the crystal element. Active devices which integrate this additional necessary circuitry are considered oscillators and are catalogued separately.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

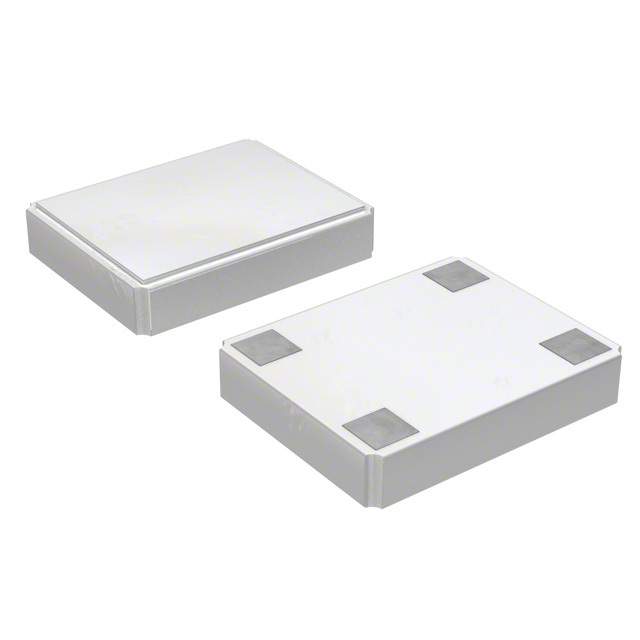

CX2520SB40000H0DZF08
|
Kyocera International Inc. Electronic Components | CRYSTAL 40.0000MHZ 12PF SMD | 125 | $2.37 | |
ATS250B-E
|
CTS-Frequency Controls | CRYSTAL 25.0000MHZ 18PF T/H | 218 | $0.38 | |
|
ATS25A-E
|
CTS-Frequency Controls | CRYSTAL 25.0000MHZ 20PF T/H | 415 | $0.38 | |
|
ATS08A
|
CTS-Frequency Controls | CRYSTAL 8.0000MHZ 20PF T/H | 693 | $0.38 | |
9B-10.000MBBK-B
|
TXC Corporation | CRYSTAL 10.0000MHZ 20PF T/H | 553 | $0.30 | |
|
9B-3.6864MBBK-B
|
TXC Corporation | CRYSTAL 3.6864MHZ 20PF T/H | 646 | $0.30 | |
|
9B-14.31818MBBK-B
|
TXC Corporation | CRYSTAL 14.31818MHZ 20PF T/H | 777 | $0.30 | |
ECS-250-20-46X
|
ECS Inc. | CRYSTAL 25.0000MHZ 20PF T/H | 512 | $0.39 | |
|
ECS-184-20-46X
|
ECS Inc. | CRYSTAL 18.4320MHZ 20PF T/H | 556 | $0.39 | |
|
9B-12.288MAAJ-B
|
TXC Corporation | CRYSTAL 12.2880MHZ 18PF T/H | 586 | $0.39 |
