Crystals

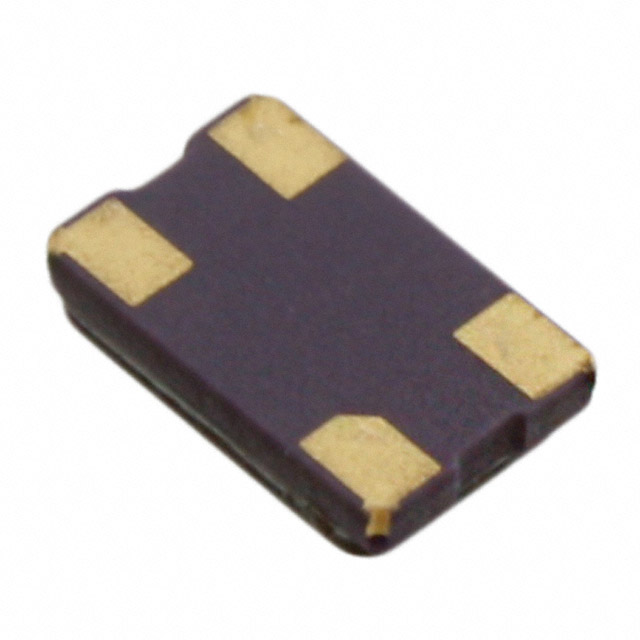

Crystal products are passive components most commonly used as time or frequency references in electronic systems. Consisting of a piezoelectric crystal that mechanically vibrates at a known frequency, their use requires provision of an external oscillator circuit with carefully designed capacitance, drive voltage, and series resistance characteristics, to generate a signal at the indicated crystal frequency that operates successfully over the operating temperature range, without damaging the crystal element. Active devices which integrate this additional necessary circuitry are considered oscillators and are catalogued separately.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
CSM1Z-A5B2C5-40-14.7456D18
|
Cardinal Components Inc. | CRYSTAL 14.7456MHZ 18PF SMD | 0 | $0.33 | |
|
CSM1Z-A0B2C3-100-5.0D18
|
Cardinal Components Inc. | CRYSTAL 5.0000MHZ 18PF SMD | 0 | $0.00 | |
NX5032GC-16MHZ-STD-CSK-6
|
NDK America, Inc. | CRYSTAL 16.0000MHZ 8PF SMD | 1675 | $0.72 | |
NX8045GB-12M-STD-CSF-4
|
NDK America, Inc. | CRYSTAL 12.0000MHZ 8PF SMD | 1395 | $0.00 | |
LFXTAL071743REEL
|
IQD Frequency Products | CRYSTAL 14.3180MHZ 8PF SMD AEC-Q | 0 | $0.44 | |
NX3225SA-16M-EXS00A-CS05997
|
NDK America, Inc. | CRYSTAL 16MHZ 8PF SMD | 1938 | $0.00 | |
|
LFXTAL071761REEL
|
IQD Frequency Products | CRYSTAL 26.0MHZ 8PF SMD AEC-Q200 | 2996 | $0.00 | |
|
LFXTAL071785REEL
|
IQD Frequency Products | CRYSTAL 25.0MHZ 8PF SMD AEC-Q200 | 2859 | $0.79 | |
NX2016SA-48M-EXS00A-CS08927
|
NDK America, Inc. | CRYSTAL 48MHZ 10PF SMD | 2770 | $0.00 | |
|
NX3225SA-27M-STD-CRS-2
|
NDK America, Inc. | CRYSTAL 27.0000MHZ 8PF SMD | 0 | $0.44 |
