Crystals
Crystal products are passive components most commonly used as time or frequency references in electronic systems. Consisting of a piezoelectric crystal that mechanically vibrates at a known frequency, their use requires provision of an external oscillator circuit with carefully designed capacitance, drive voltage, and series resistance characteristics, to generate a signal at the indicated crystal frequency that operates successfully over the operating temperature range, without damaging the crystal element. Active devices which integrate this additional necessary circuitry are considered oscillators and are catalogued separately.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
7B-16.000MAAE-T
|
TXC Corporation | CRYSTAL 16.0000MHZ 12PF SMD | 1960 | $0.00 | |
Q 24,0-JXS21-8-10/10-FU-WA-LF
|
Jauch Quartz | CRYSTAL 24MHZ 8PF SMD | 1795 | $0.80 | |
ABLS-6.144MHZ-L4Q-T
|
Abracon LLC. | CRYSTAL 6.1440MHZ 18PF SMD | 1466 | $0.00 | |

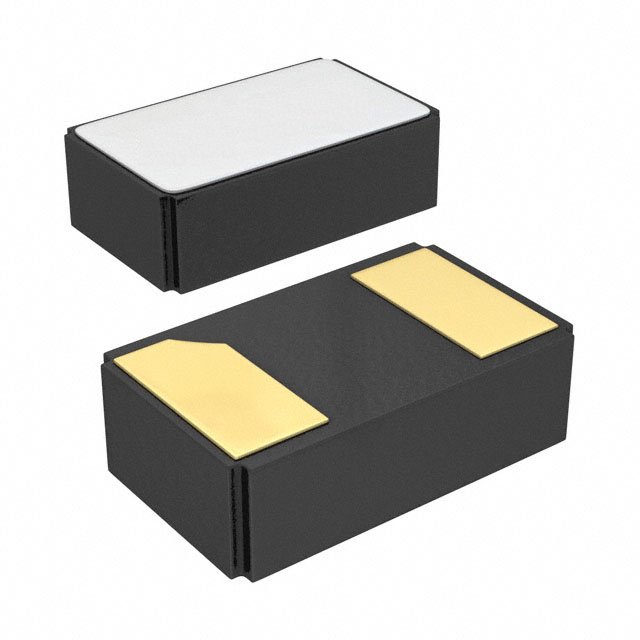

9HT11-32.768KBZB-T
|
TXC Corporation | CRYSTAL 32.7680KHZ 6PF SMD | 0 | $0.41 | |
FL5000063Z
|
Diodes Incorporated | CRYSTAL 50.0000MHZ 18PF SMD | 1221 | $0.00 | |
403I35D30M00000
|
CTS-Frequency Controls | CRYSTAL 30.0000MHZ 18PF SMD | 3030 | $0.82 | |
FW2500039Q
|
Diodes Incorporated | CRYSTAL CERAMIC SEAM2016R 3K | 2370 | $0.00 | |
XRCED38M400FXQ50R0
|
Murata Electronics North America | 1.2X1.0X0.33MM 38.4MHZ CRYSTAL | 0 | $0.42 | |
ABM10W-24.0000MHZ-4-B1U-T3
|
Abracon LLC. | CRYSTAL 24.0000MHZ 4PF SMD | 0 | $0.00 | |
Q 19,20-JXS22-12-10/15-T1-WA-LF
|
Jauch Quartz | CRYSTAL 19.2MHZ 12PF SMD | 1994 | $0.83 |
