Crystals
Crystal products are passive components most commonly used as time or frequency references in electronic systems. Consisting of a piezoelectric crystal that mechanically vibrates at a known frequency, their use requires provision of an external oscillator circuit with carefully designed capacitance, drive voltage, and series resistance characteristics, to generate a signal at the indicated crystal frequency that operates successfully over the operating temperature range, without damaging the crystal element. Active devices which integrate this additional necessary circuitry are considered oscillators and are catalogued separately.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
ABM8-20.000MHZ-18-D2Y-T
|
Abracon LLC. | CRYSTAL 20.000MHZ 18PF SMD | 1017 | $0.00 | |

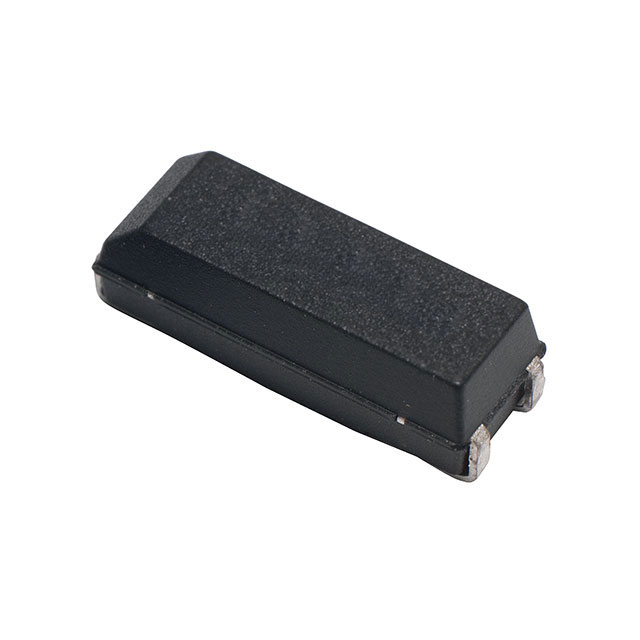

LFXTAL003004REEL
|
IQD Frequency Products | CRYSTAL 32.7680KHZ 12.5PF SMD | 222 | $1.19 | |
403C35E26M00000
|
CTS-Frequency Controls | CRYSTAL 26.0000MHZ 20PF SMD | 2325 | $0.00 | |
FL0800011Q
|
Diodes Incorporated | CRYSTAL CERAMIC SEAM3225 T&R 3K | 0 | $0.39 | |
7V-16.000MAAV-T
|
TXC Corporation | CRYSTAL 16.0000MHZ 8PF SMD | 3348 | $0.77 | |
8Z-38.400MAAE-T
|
TXC Corporation | CRYSTAL 38.4000MHZ 12PF SMD | 0 | $0.00 | |
|
8Z-20.000MAAE-T
|
TXC Corporation | CRYSTAL 20.0000MHZ 12PF SMD | 0 | $0.00 | |
ABM8G-12.000MHZ-18-D4W-T3
|
Abracon LLC. | CRYSTAL 12.000MHZ 18PF SMD | 2535 | $0.00 | |
7M-25.000MAKV-T
|
TXC Corporation | CRYSTAL 25.0000MHZ 8PF SMD | 0 | $0.39 | |
ECS-150-S-5P-TR
|
ECS Inc. | CRYSTAL 15.0000MHZ SERIES SMD | 0 | $0.00 |
