Crystals
Crystal products are passive components most commonly used as time or frequency references in electronic systems. Consisting of a piezoelectric crystal that mechanically vibrates at a known frequency, their use requires provision of an external oscillator circuit with carefully designed capacitance, drive voltage, and series resistance characteristics, to generate a signal at the indicated crystal frequency that operates successfully over the operating temperature range, without damaging the crystal element. Active devices which integrate this additional necessary circuitry are considered oscillators and are catalogued separately.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

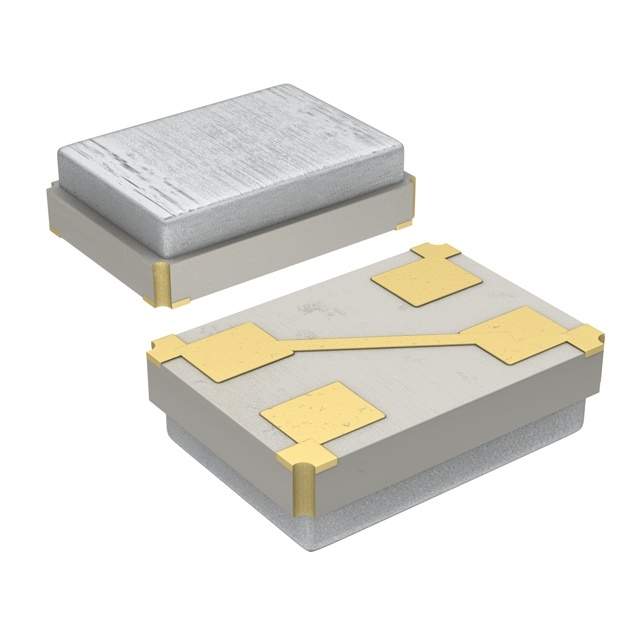

7M-27.000MAHV-T
|
TXC Corporation | CRYSTAL 27.0000MHZ 8PF SMD | 2757 | $0.66 | |
XRCGB40M000F4M00R0
|
Murata Electronics North America | CRYSTAL 40.0000MHZ 6PF SMD | 7232 | $0.00 | |
|
XRCGB27M000F3M00R0
|
Murata Electronics North America | CRYSTAL 27.0000MHZ 6PF SMD | 0 | $0.17 | |
XRCGB24M000FAN00R0
|
Murata Electronics North America | CRYSTAL 24.0000MHZ 6PF SMD | 1916 | $0.00 | |
9C-4.9152MBBK-T
|
TXC Corporation | CRYSTAL 4.9152MHZ 20PF SMD | 1360 | $0.36 | |
|
XRCGB24M000F2P01R0
|
Murata Electronics North America | 2.0X1.6X0.65MM 24MHZ CRYSTAL | 2994 | $0.00 | |
|
XRCGB24M000F3M19R0
|
Murata Electronics North America | 2.0X1.6X0.65MM 24MHZ CRYSTAL | 0 | $0.17 | |
|
XRCGB32M000F2N13R0
|
Murata Electronics North America | 2.0X1.6X0.65MM 32MHZ CRYSTAL | 2930 | $0.00 | |
ECS-286.3-20-3X-TR
|
ECS Inc. | CRYSTAL 28.63636MHZ 20PF SMD | 2492 | $0.38 | |
ABM8-27.000MHZ-D4-T
|
Abracon LLC. | CRYSTAL 27.000MHZ 18PF SMD | 3838 | $0.00 |
