Crystals
Crystal products are passive components most commonly used as time or frequency references in electronic systems. Consisting of a piezoelectric crystal that mechanically vibrates at a known frequency, their use requires provision of an external oscillator circuit with carefully designed capacitance, drive voltage, and series resistance characteristics, to generate a signal at the indicated crystal frequency that operates successfully over the operating temperature range, without damaging the crystal element. Active devices which integrate this additional necessary circuitry are considered oscillators and are catalogued separately.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

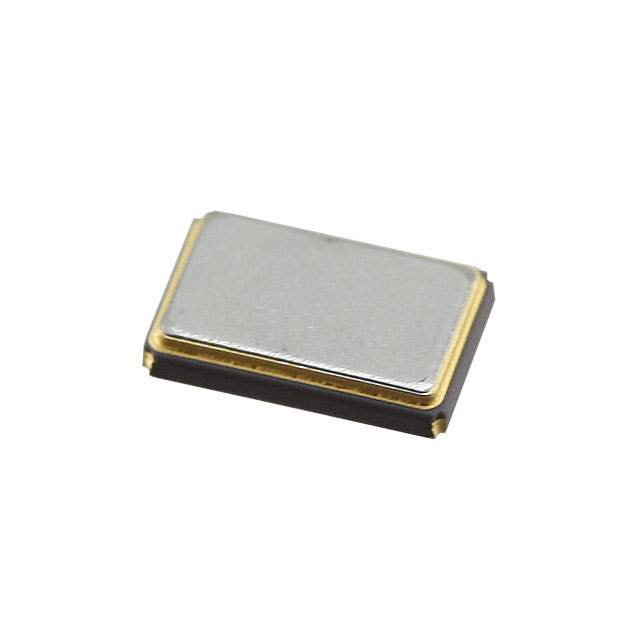

FW2000016Q
|
Diodes Incorporated | CRYSTAL CERAMIC SEAM2016 T&R 3K | 3000 | $0.42 | |
|
FW1920009Q
|
Diodes Incorporated | CRYSTAL CERAMIC SEAM2016R 3K | 3000 | $0.00 | |
Q 20,0-JXS21-9-10/10-FU-WA-LF
|
Jauch Quartz | CRYSTAL 20MHZ 9PF SMD | 2000 | $0.80 | |
|
Q 16,0-JXS21-8-10/10-WA-LF
|
Jauch Quartz | CRYSTAL 16MHZ 8PF SMD | 2846 | $0.00 | |
8Y-38.400MAAV-T
|
TXC Corporation | CRYSTAL 38.4000MHZ 8PF SMD | 0 | $0.44 | |
Q 0,032768-JTX210-12,5-20-T3-LF
|
Jauch Quartz | CRYSTAL 32.768KHZ 12.5PF SMD | 8780 | $0.00 | |
Q 26,0-JXS22-10-10/15-T1-FU-WA-LF
|
Jauch Quartz | CRYSTAL 26MHZ 10PF SMD | 2000 | $0.83 | |
|
Q 16,0-JXS22-8-10/15-T1-WA-LF
|
Jauch Quartz | CRYSTAL 16MHZ 8PF SMD | 2995 | $0.00 | |
7B-13.000MAAJ-T
|
TXC Corporation | CRYSTAL 13.0000MHZ 18PF SMD | 2000 | $0.45 | |
|
Q 16,0-JXS21-9-10/15-T1-WA-LF
|
Jauch Quartz | CRYSTAL 16MHZ 9PF SMD | 3000 | $0.00 |
