Crystals
Crystal products are passive components most commonly used as time or frequency references in electronic systems. Consisting of a piezoelectric crystal that mechanically vibrates at a known frequency, their use requires provision of an external oscillator circuit with carefully designed capacitance, drive voltage, and series resistance characteristics, to generate a signal at the indicated crystal frequency that operates successfully over the operating temperature range, without damaging the crystal element. Active devices which integrate this additional necessary circuitry are considered oscillators and are catalogued separately.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
ECS-184-18-4X
|
ECS Inc. | CRYSTAL 18.4320MHZ 18PF T/H | 3798 | $0.69 | |
7M50072001
|
TXC Corporation | CRYSTAL 50 MHZ 9PF SMD | 6609 | $0.00 | |

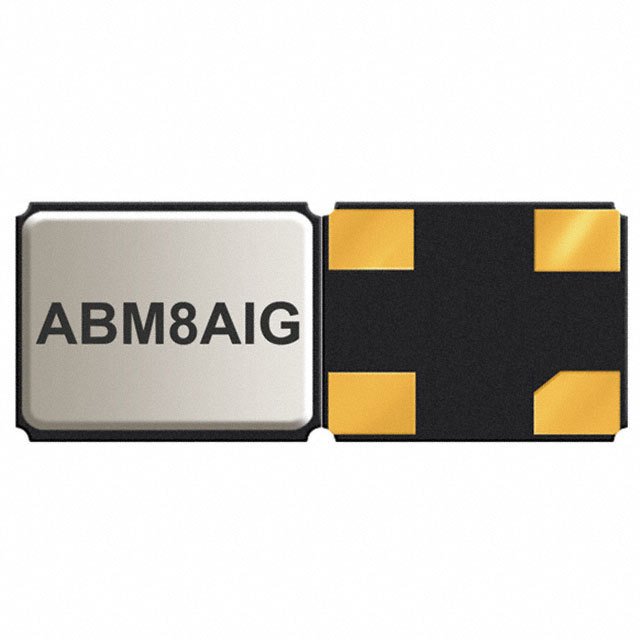

ABM8AIG-26.000MHZ-12-2Z-T3
|
Abracon LLC. | CRYSTAL 26.0000MHZ 12PF SMD | 3000 | $0.77 | |
ABM10AIG-24.000MHZ-4Z-T3
|
Abracon LLC. | CRYSTAL 24MHZ 10PF SMD | 7959 | $0.00 | |
C-2 38.4000K-P:PBFREE
|
Epson | CRYSTAL 38.4000KHZ 11PF T/H | 1441 | $0.94 | |
ABM12-40.000MHZ-B2X-T3
|
Abracon LLC. | CRYSTAL 40.0000MHZ 8PF SMD | 6000 | $1.09 | |
8Z-19.200MEEQ-T
|
TXC Corporation | CRYSTAL 19.2000MHZ 10PF SMD | 14951 | $0.00 | |
XM-1-016.0M
|
Connor-Winfield | CRYSTAL 16.0000MHZ 16PF SMD | 500 | $4.50 | |
NX5032GA-16.384000MHZ-LN-CD-1
|
NDK America, Inc. | CRYSTAL 16.3840MHZ 8PF SMD | 6400 | $0.66 | |
|
NX5032GA-13.56M-STD-CSK-4
|
NDK America, Inc. | CRYSTAL 13.5600MHZ 8PF SMD | 2488 | $0.00 |
