Crystals
Crystal products are passive components most commonly used as time or frequency references in electronic systems. Consisting of a piezoelectric crystal that mechanically vibrates at a known frequency, their use requires provision of an external oscillator circuit with carefully designed capacitance, drive voltage, and series resistance characteristics, to generate a signal at the indicated crystal frequency that operates successfully over the operating temperature range, without damaging the crystal element. Active devices which integrate this additional necessary circuitry are considered oscillators and are catalogued separately.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

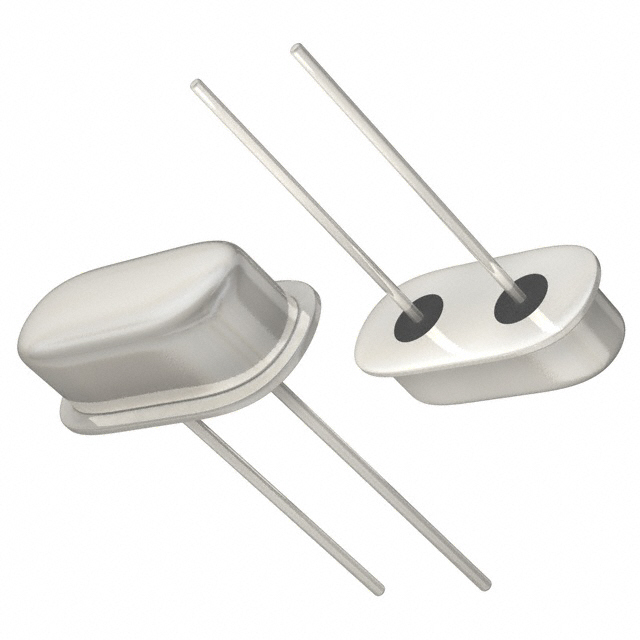

ABL-11.0592MHZ-B2
|
Abracon LLC. | CRYSTAL 11.0592MHZ 18PF T/H | 2533 | $0.33 | |
HCM4922118400ABJT
|
Citizen Finedevice Co., LTD. | CRYSTAL 22.1184MHZ 18PF SMD | 5232 | $0.00 | |
NX3225GA-16.000M-STD-CRG-1
|
NDK America, Inc. | CRYSTAL 16.0000MHZ 8PF SMD | 15000 | $0.35 | |
|
NX3225GA-12MHZ-STD-CRG-2
|
NDK America, Inc. | CRYSTAL 12.0000MHZ 8PF SMD | 21105 | $0.00 | |
NX3215SA-32.768K-STD-MUA-9
|
NDK America, Inc. | CRYSTAL 32.7680KHZ 9PF SMD | 27705 | $0.68 | |
FL2700102Z
|
Diodes Incorporated | CRYSTAL 27.0000MHZ 12PF SMD | 3591 | $0.00 | |
NX5032GA-16MHZ-STD-CSK-4
|
NDK America, Inc. | CRYSTAL 16.0000MHZ 8PF SMD | 9000 | $0.38 | |
7A-16.9344MBBK-T
|
TXC Corporation | CRYSTAL 16.9344MHZ 20PF SMD | 2822 | $0.00 | |

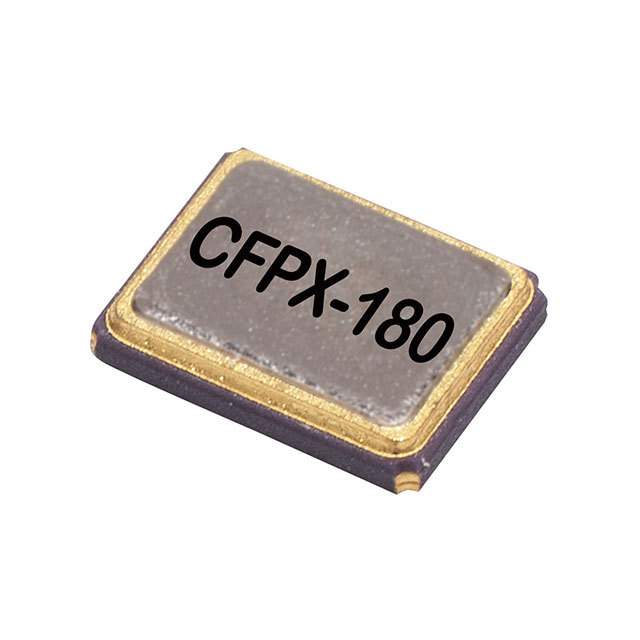

LFXTAL035264REEL
|
IQD Frequency Products | CRYSTAL 16.0MHZ 16PF SMD | 4684 | $0.59 | |
NX3225SA-20.000M-STD-CSR-1
|
NDK America, Inc. | CRYSTAL 20.0000MHZ 8PF SMD | 17883 | $0.00 |
