Shunts, Jumpers
Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

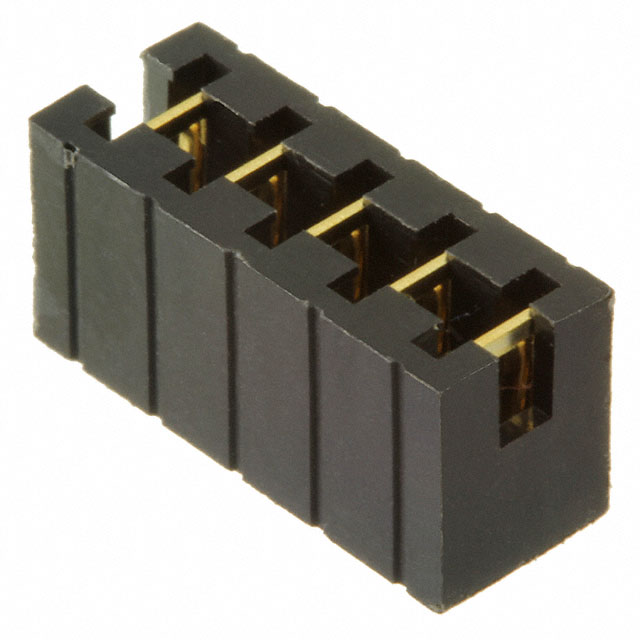

MNT-105-BK-G
|
Samtec, Inc. | CONN SHUNT 10POS | 640 | $1.60 | |

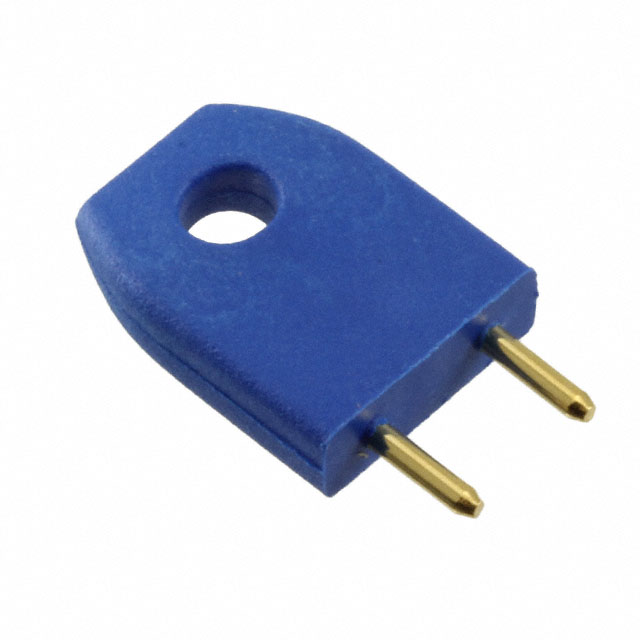

999-11-220-10-000000
|
Mill-Max Manufacturing Corp. | JUMPER INSULATED MALE .200" BK | 104 | $1.55 | |
827914-3
|
TE Connectivity AMP Connectors | 2P SHUNTCONNECTOR ASSY | 797 | $1.12 | |
MNT-105-BK-T
|
Samtec, Inc. | .100 C.L. SHUNT STRIP | 113 | $1.07 | |
D3086-97
|
Harwin Inc. | CONN SHUNT 2 POS 5.08MM | 755 | $1.02 | |

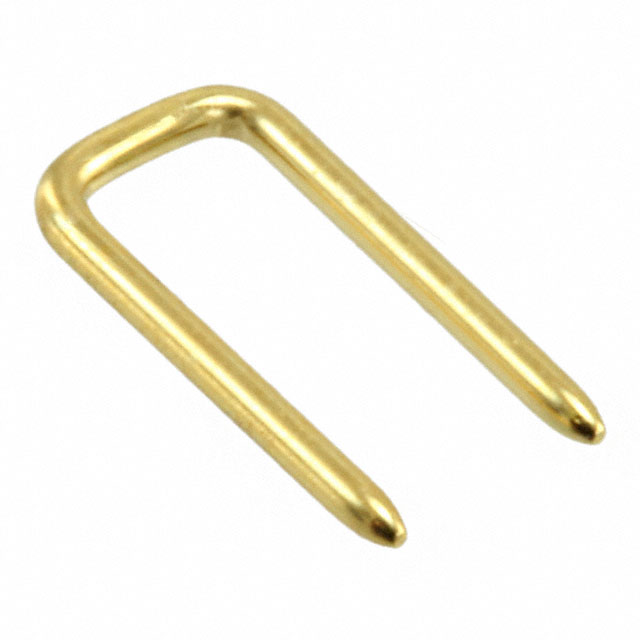

4000-0-14-15-00-00-03-0
|
Mill-Max Manufacturing Corp. | JUMPER PIN | 766 | $0.77 | |
ML-100S
|
Aries Electronics | ML-100 MINI-LINK MINI JUMPER | 245 | $0.70 | |

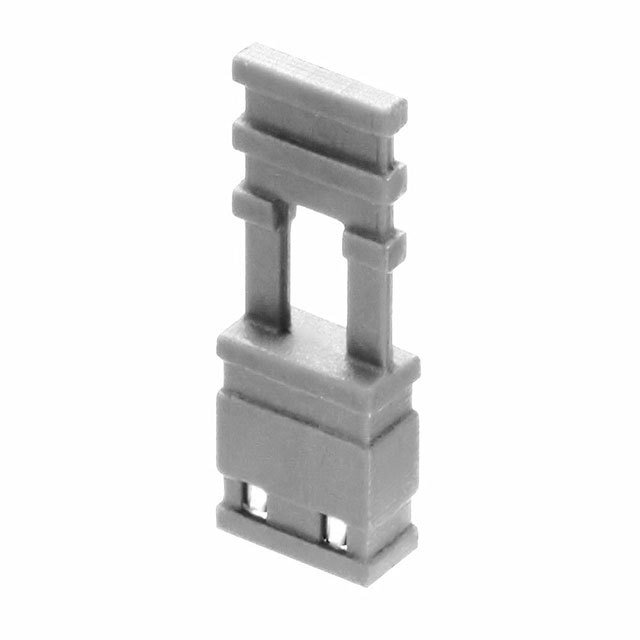

M7680-46
|
Harwin Inc. | CONN SHUNT 2POS W/HANDLE 2.54MM | 960 | $0.41 | |
M7767-05
|
Harwin Inc. | JUMPER SKT CLOSED TOP BLACK | 481 | $0.35 | |
M7967-05
|
Harwin Inc. | CLOSED TOP JUMPER SOCKET | 373 | $0.28 |
