Shunts, Jumpers
Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
MNT-103-BK-H
|
Samtec, Inc. | .100 C.L. SHUNT STRIP | 205 | $1.42 | |

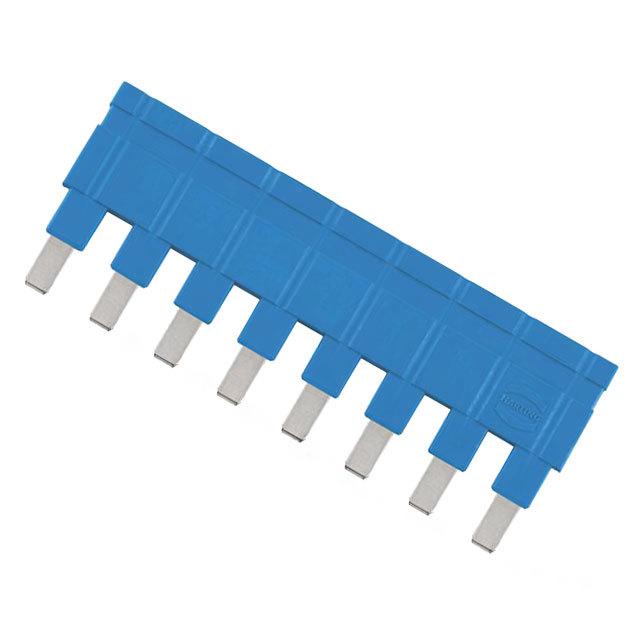

09330009847
|
HARTING | JUMPER ACROSS 1X8 BLUE 16A | 50 | $7.10 | |
09330009836
|
HARTING | JUMPER ACROSS 1X8 RED 16A | 50 | $7.10 | |
|
MNT-108-BK-G
|
Samtec, Inc. | .100 C.L. SHUNT STRIP | 366 | $2.57 | |
|
MNT-107-BK-G
|
Samtec, Inc. | .100 C.L. SHUNT STRIP | 535 | $2.24 | |

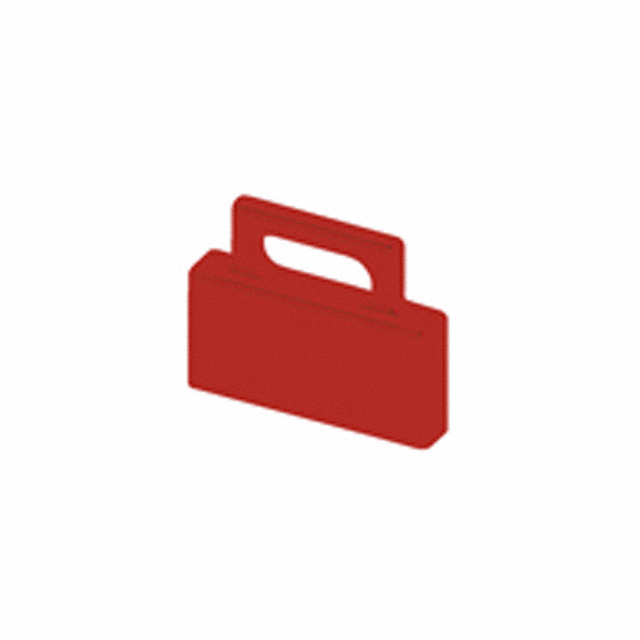

1487R
|
Keystone Electronics | JACK SHORTING INSULATED RED | 130 | $2.05 | |

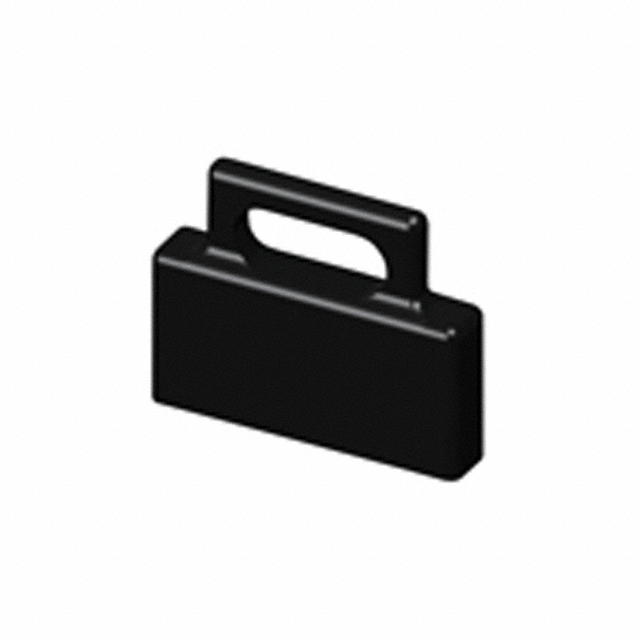

1487B
|
Keystone Electronics | JACK SHORTING INSULATED BLACK | 248 | $2.05 | |

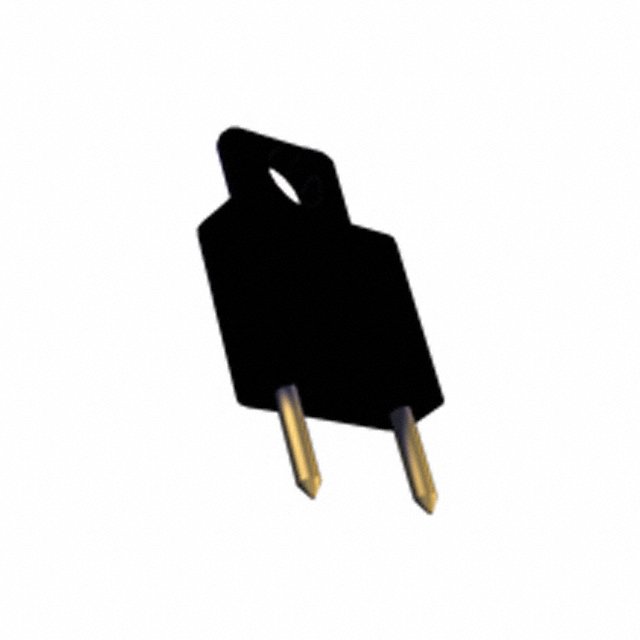

1460B
|
Keystone Electronics | PLUG SHORTING INSULATED BLACK | 624 | $2.05 | |

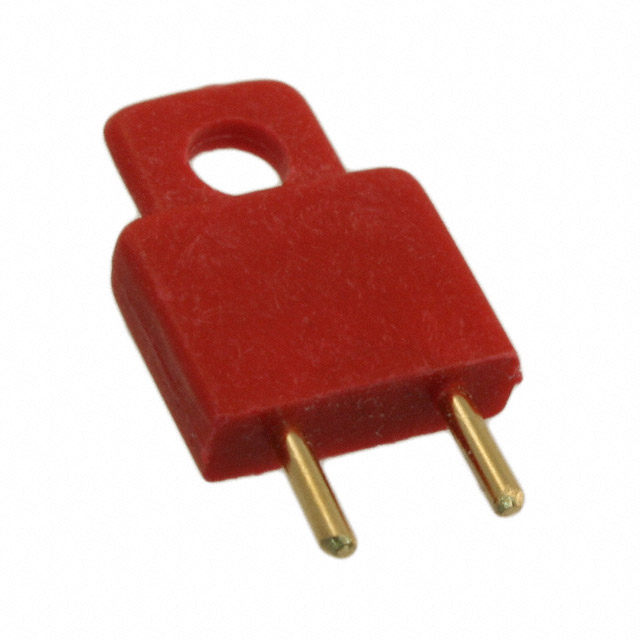

1460R
|
Keystone Electronics | PLUG SHORTING INSULATED RED | 712 | $2.05 | |
|
MNT-108-BK-T
|
Samtec, Inc. | .100 C.L. SHUNT STRIP | 231 | $1.60 |
