Shunts, Jumpers
Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

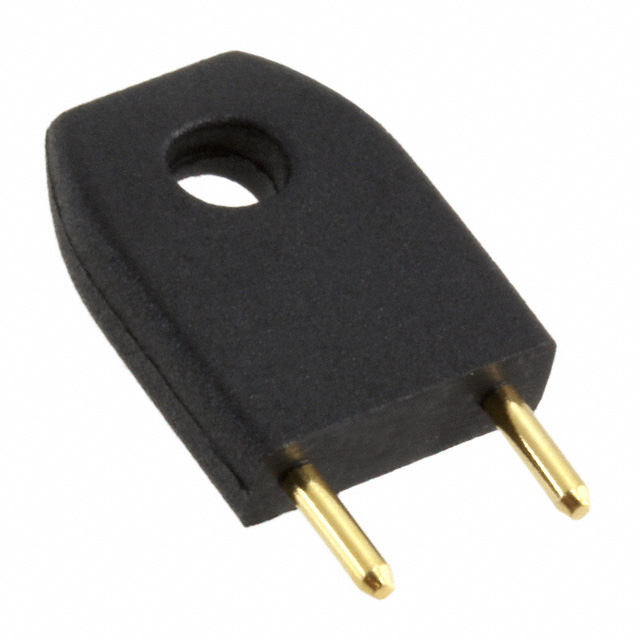

D3087-98
|
Harwin Inc. | 1MM INSULATED SHORTING PLUG | 52 | $1.02 | |

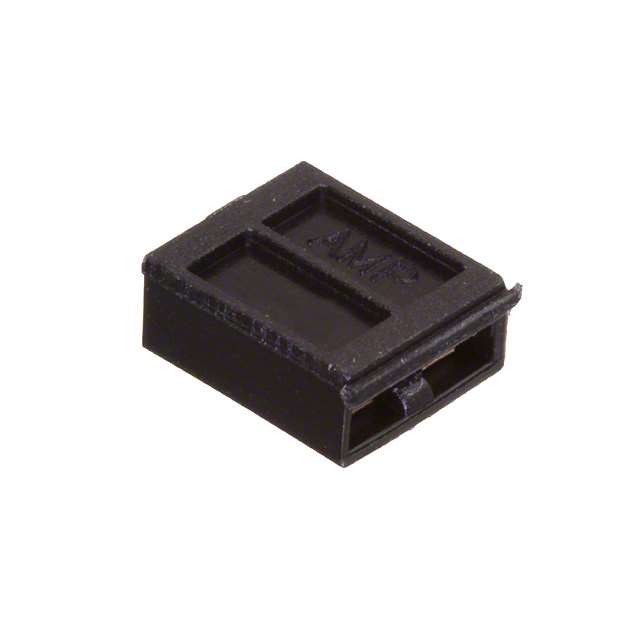

1-881545-2
|
TE Connectivity AMP Connectors | AMP SHUNT ASS'Y | 0 | $0.33 | |

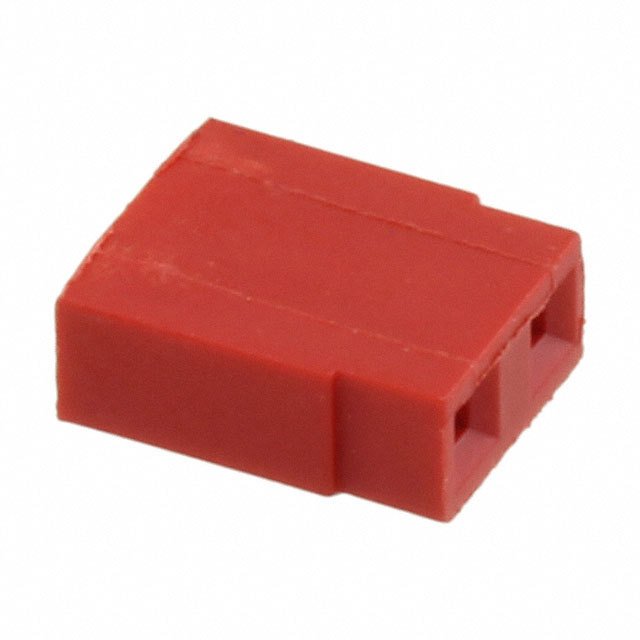

M7566-46
|
Harwin Inc. | JUMPER SKT RED | 97 | $0.24 | |
810-002-LP1R001
|
NorComp Inc. | SHUNT 2MM LOW PROFILE .075" GOLD | 0 | $0.73 | |
0900590009
|
Molex | CONN SHUNT .100 LOW PROFILE GOLD | 0 | $0.44 | |

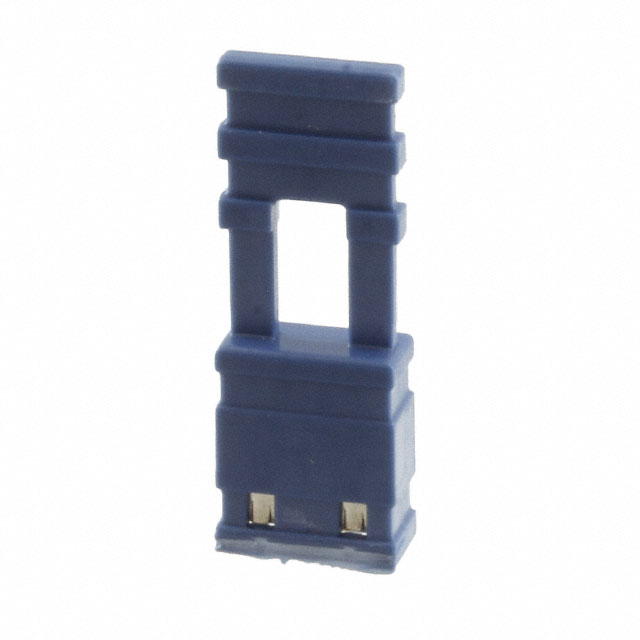

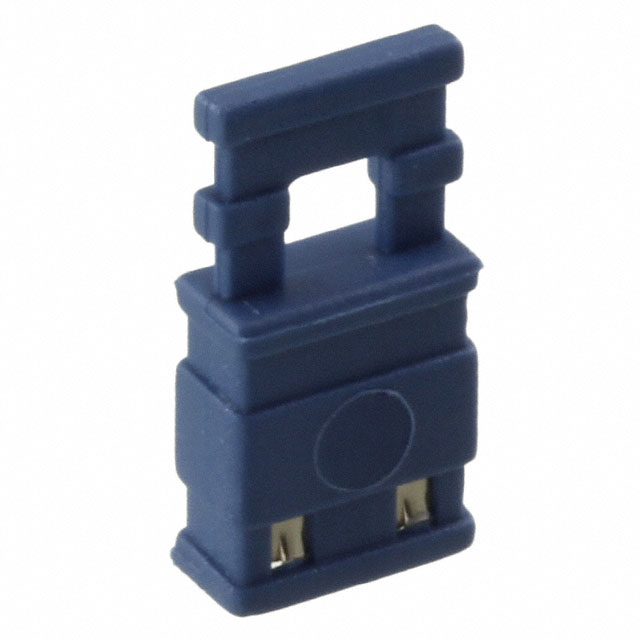

M7683-05
|
Harwin Inc. | 14MM JUMPER SKT W/HNDL BLUE | 0 | $0.41 | |

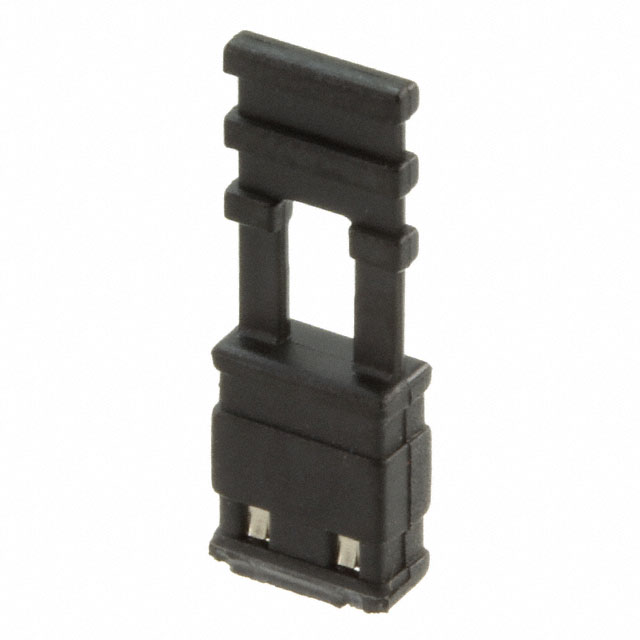

M7682-05
|
Harwin Inc. | 14MM JUMPER SKT W/HNDL BLACK | 0 | $0.41 | |
M7687-05
|
Harwin Inc. | 10MM JUMPER SKT W/HNDL BLUE | 0 | $0.36 | |
M7686-05
|
Harwin Inc. | CLOSED TOP JUMPER SOCKET | 45 | $0.36 | |

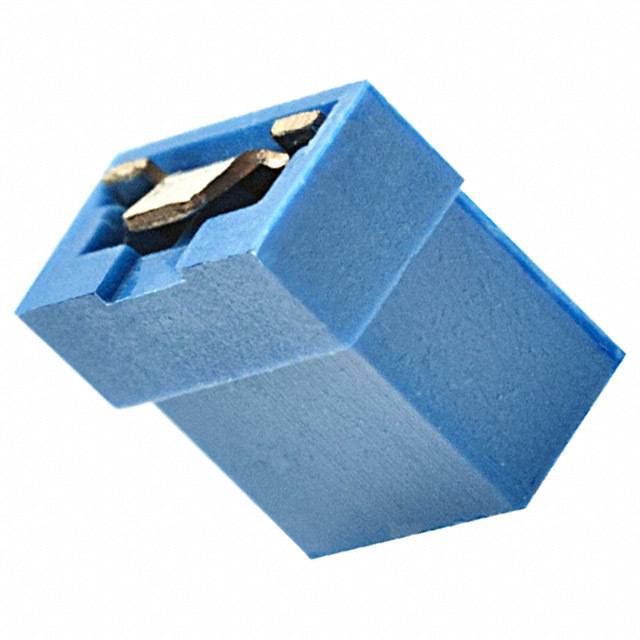

M22-1910005
|
Harwin Inc. | CONN JUMPER SHORTING GOLD BLUE | 0 | $0.33 |
