Shunts, Jumpers
Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
AKSPLTG-BLACK
|
ASSMANN WSW Components | CONN SHUNT 2.54MM AU 13.5MM BLK | 0 | $0.03 | |
|
EDJ4G0
|
On-Shore Technology, Inc. | SHUNT .100" BLACK W/HANDLE | 0 | $0.03 | |
|
861410021H11LF
|
Amphenol ICC (FCI) | CONN SHUNT | 0 | $0.02 | |

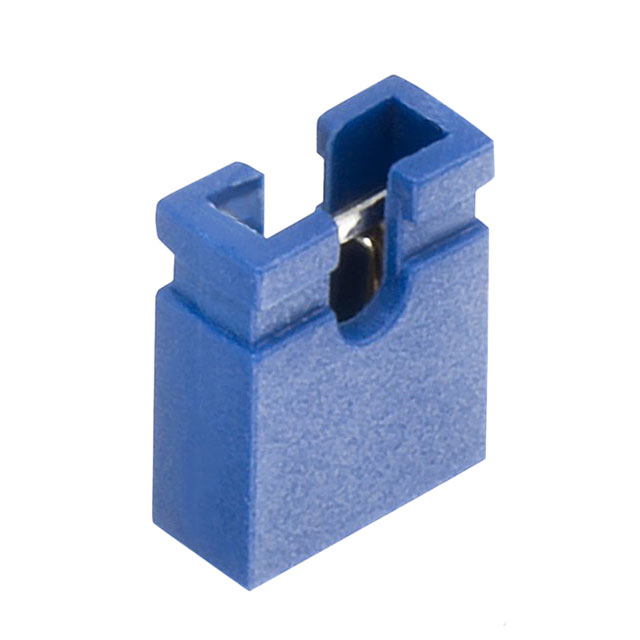

M7583-46
|
Harwin Inc. | JUMPER SKT OPEN TOP BLUE | 0 | $0.02 | |

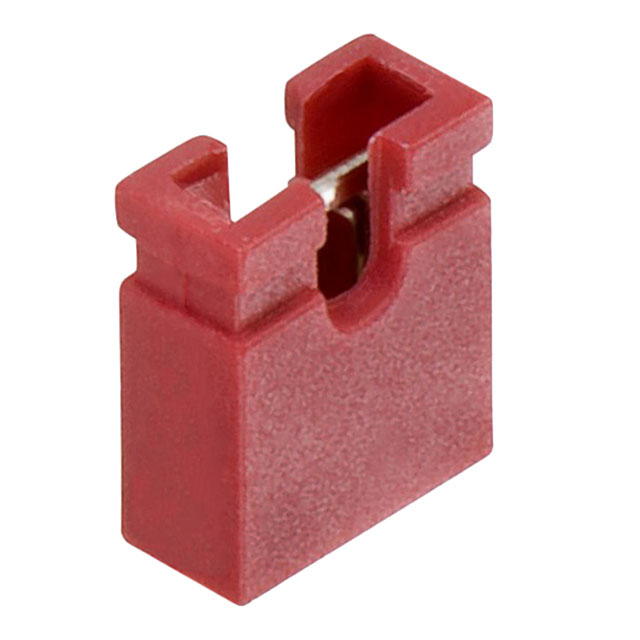

M7581-46
|
Harwin Inc. | JUMPER SKT OPEN TOP RED | 0 | $0.02 | |
|
M7580-46
|
Harwin Inc. | CONN SHUNT 2POS OPEN 2.54MM TIN | 0 | $0.02 | |
|
69145-110LF
|
Amphenol ICC (FCI) | JUMPER LOW PRO DR MULTI | 69 | $0.90 | |
|
MSBG-05-G
|
Adam Tech | GANG SHUNT 5P 2.54MM PITCH | 0 | $0.44 | |
|
MSBG-06-G
|
Adam Tech | GANG SHUNT 6P 2.54MM PITCH | 0 | $0.44 | |
|
MSE-G
|
Adam Tech | SHUNT 2.54MM PITCH | 0 | $0.18 |
