Shunts, Jumpers

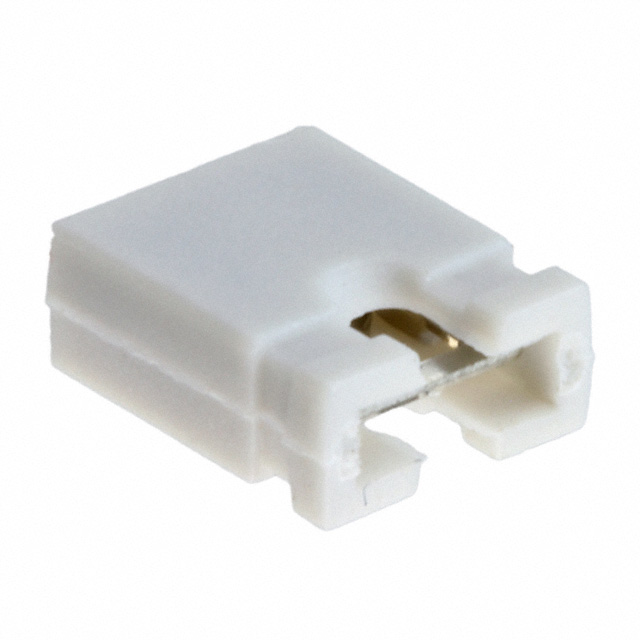

Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
M7580-05
|
Harwin Inc. | CONN SHUNT 2POS OPEN 2.54MM GOLD | 0 | $0.05 | |
SX1100-H-BLK
|
Kycon, Inc. | SHUNT WITH HANDLE BLACK ROHS COM | 0 | $0.05 | |
|
AKSPLTZ-RED
|
ASSMANN WSW Components | CONN SHUNT 2.54MM TIN 13.5MM RED | 0 | $0.05 | |
|
SPC02SVDN-RC
|
Sullins Connector Solutions | CONN JUMPER SHORTING .100" GOLD | 0 | $0.05 | |
|
SPC02SVKN-RC
|
Sullins Connector Solutions | CONN JUMPER SHORTING .100" GOLD | 0 | $0.04 | |
|
84944-1
|
TE Connectivity AMP Connectors | 2.54 MM SHUNT (TY) | 0 | $0.04 | |
|
861410021H12LF
|
Amphenol ICC (FCI) | 8614 SHUNT 2P | 0 | $0.04 | |
|
SX8100-B
|
Kycon, Inc. | SHUNT 2MM BLACK ROHS COMPLIANT | 0 | $0.04 | |
|
AKSPT/G BLACK
|
ASSMANN WSW Components | CONN SHUNT 2.54MM GOLD 6.0MM BLK | 0 | $0.03 | |
|
AKSPLT-Z-BLK-R
|
ASSMANN WSW Components | CONN SHUNT 2.54MM TIN 13.5MM BLK | 0 | $0.03 |
