Shunts, Jumpers
Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
M7681-46
|
Harwin Inc. | 14MM JUMPER SKT W/HNDL RED | 0 | $0.31 | |

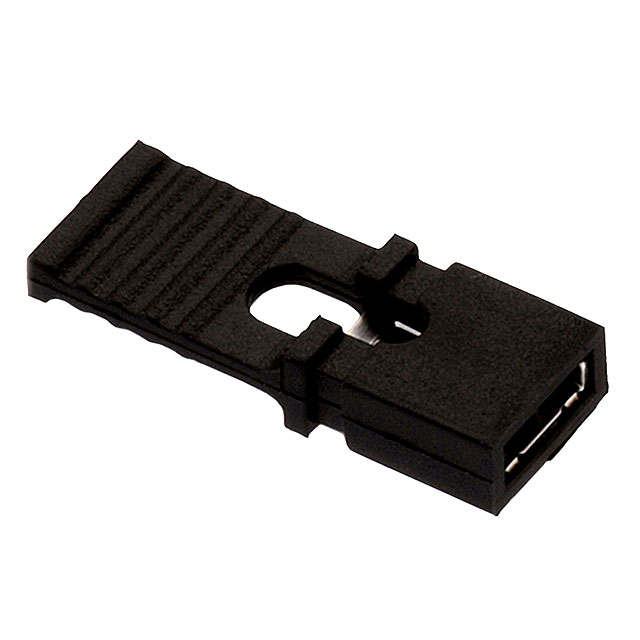

NPN02SXNN-RC
|
Sullins Connector Solutions | CONN JUMPER SHORTING 2MM GOLD | 0 | $0.13 | |

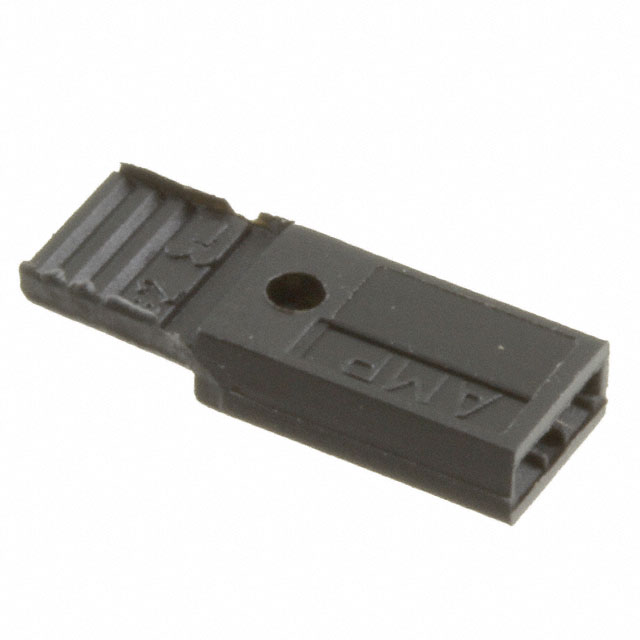

880584-1
|
TE Connectivity AMP Connectors | CONN POST SHUNTS 2POS 15GOLD | 0 | $0.46 | |

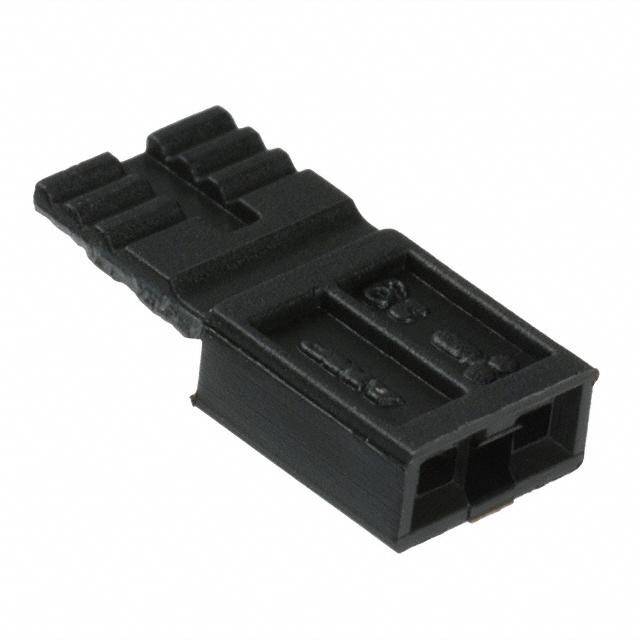

881545-2
|
TE Connectivity AMP Connectors | SHUNT LP W/HANDLE 2 POS 30AU | 193436 | $0.28 | |

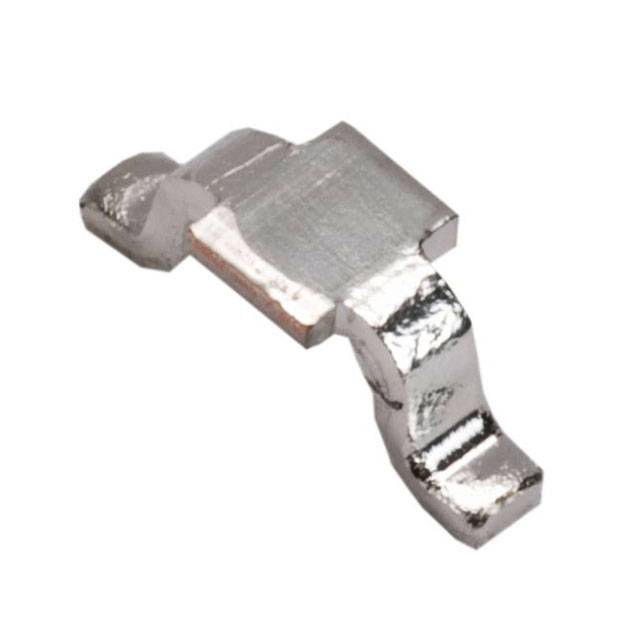

S1731-46R
|
Harwin Inc. | JUMPER TIN SMD | 0 | $0.00 | |
SNT-100-RD-G-H
|
Samtec, Inc. | SHUNT & JUMPERS | 503 | $0.80 | |

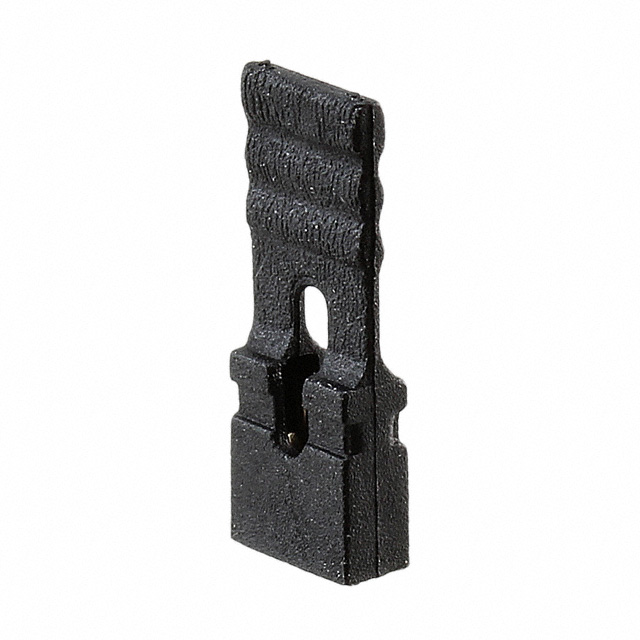

609002115121
|
Wurth Electronics Inc. | WR-PHD_2.54MM_JUMPER_BLACK W/ TE | 166 | $0.30 | |

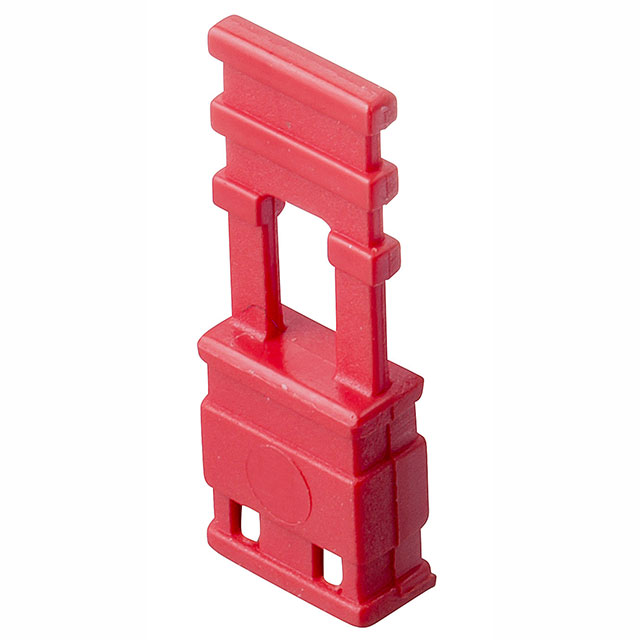

60900213521
|
Wurth Electronics Inc. | WR-PHD_2.54MM_JUMPER_RED W/ TEST | 413 | $0.30 | |
|
JL-300-25-T
|
Samtec, Inc. | JUMPERS | 872 | $0.10 | |
|
MNT-104-BK-T
|
Samtec, Inc. | .100 C.L. SHUNT STRIP | 136 | $0.86 |
