Single IGBTs
Single IGBTs (Insulated Gate Bipolar Transistors) are multilayered semiconductor devices with three terminals that can handle high currents and have fast switching features. They are characterized by type, collector-emitter breakdown voltage, collector current, pulsed collector current, VCE(ON), switching energy, and gate charge.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

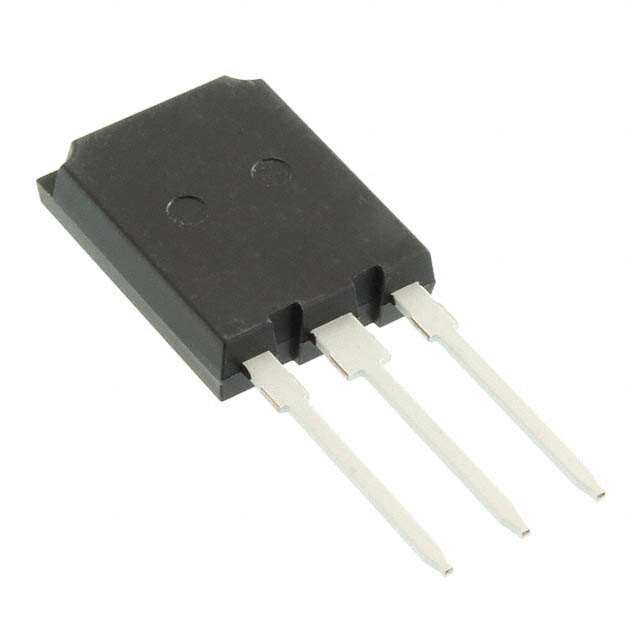

IXYX25N250CV1HV
|
IXYS | IGBT 2500V 235A PLUS247 | 17 | $35.67 | |
|
IXXX300N60B3
|
IXYS | IGBT 600V 550A 2300W TO247 | 67 | $24.87 | |
APT50GN120L2DQ2G
|
Microsemi Corporation | IGBT 1200V 134A 543W TO264 | 68 | $18.17 | |
IKQ75N120CS6XKSA1
|
Infineon Technologies | IGBT 1200V 75A TO247-3-46 | 291 | $16.62 | |
IXGT2N250
|
IXYS | IGBT 2500V 5.5A 32W TO-268 | 79 | $14.55 | |
IXXK110N65B4H1
|
IXYS | IGBT 650V 240A 880W TO264 | 64 | $11.53 | |
|
IXXX110N65B4H1
|
IXYS | IGBT 650V 240A 880W PLUS247 | 58 | $11.09 | |
NGTB50N120FL2WG
|
ON Semiconductor | IGBT 1200V 100A 535W TO247 | 72 | $5.88 | |
IXGA20N120A3
|
IXYS | IGBT 1200V 40A 180W TO263 | 58 | $5.01 | |
STGWA50M65DF2
|
STMicroelectronics | TRENCH GATE FIELD-STOP IGBT M SE | 90 | $4.12 |
