Solder Stencils, Templates
Solder Stencils and Templates are a mask that is used to apply solder paste in a specific area on a PCB board. The stencil types are BGA, CSP, DFN, DFN/SON, FPC/FFC, HSOP, HTQFP, HTSSOP, LED, LED/DFN, LED/PLCC, LGA, LLP, LQFP, LSOP, mini SOIC, MLP/DFN, MLP/MLF, MQFP, MSOP, PLCC, PLCC/JLCC, POS, PowerQSOP, PowerSOIC, PowerSSO, PowerSSOP, PQFP, PSOP, QFN, QFN/LFCSP, QSOP, RN, RQFP, SOIC, SON, SOP, SOT/SC, SSOP, TO/DDPAK, TO/DPAK, TQFP, TSOC, TSOP, TSSOP, TVSOP, uMAX, VSOP, and VSSOP.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

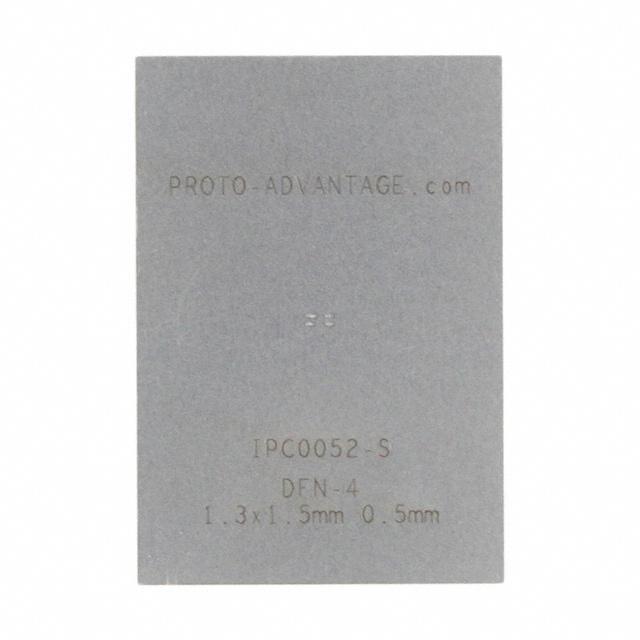

IPC0052-S
|
Chip Quik, Inc. | DFN-4 STENCIL | 0 | $11.59 | |

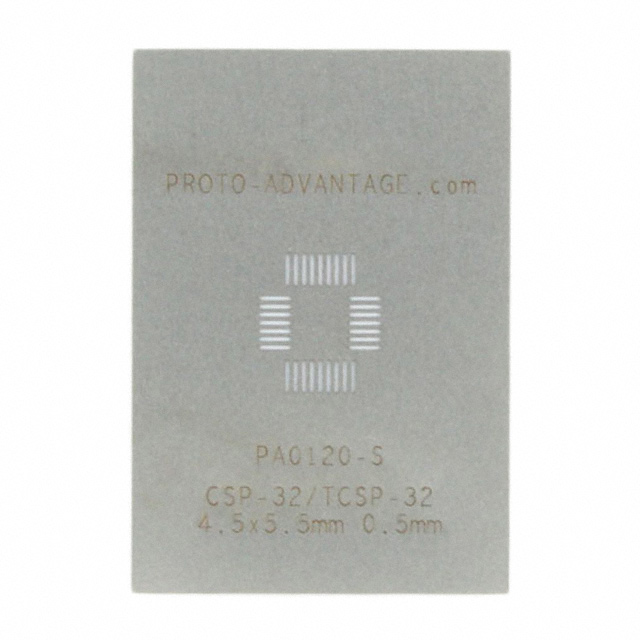

PA0120-S
|
Chip Quik, Inc. | CSP-32/TCSP-32 STENCIL | 0 | $11.59 | |

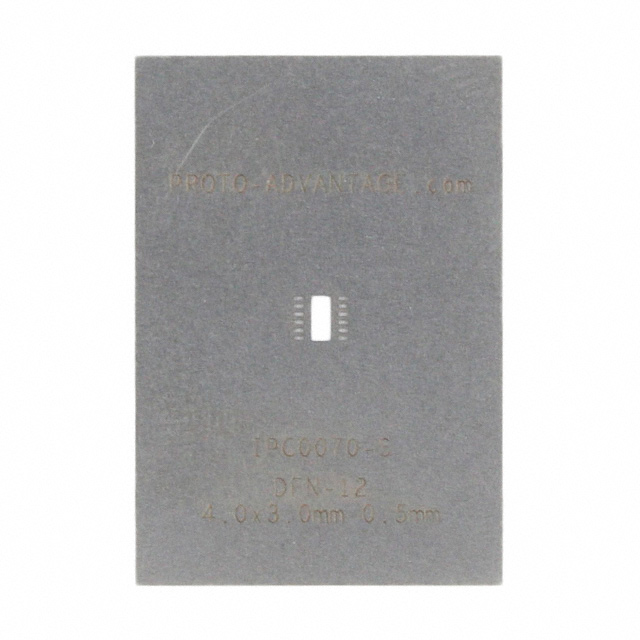

IPC0070-S
|
Chip Quik, Inc. | DFN-12 STENCIL | 0 | $11.59 | |

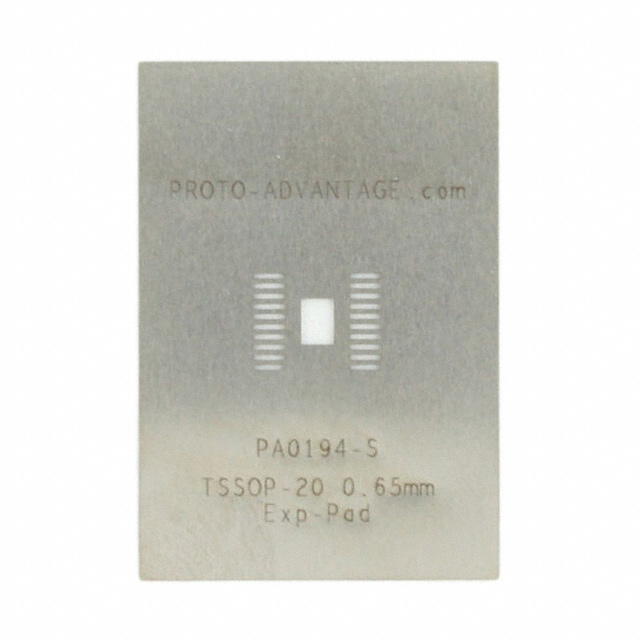

PA0194-S
|
Chip Quik, Inc. | TSSOP-20-EXP-PAD STENCIL | 0 | $11.59 | |

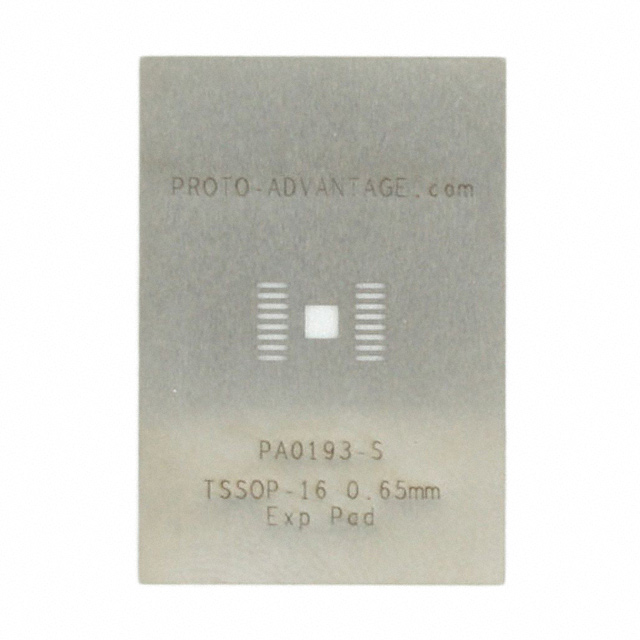

PA0193-S
|
Chip Quik, Inc. | TSSOP-16-EXP-PAD STENCIL | 0 | $11.59 | |

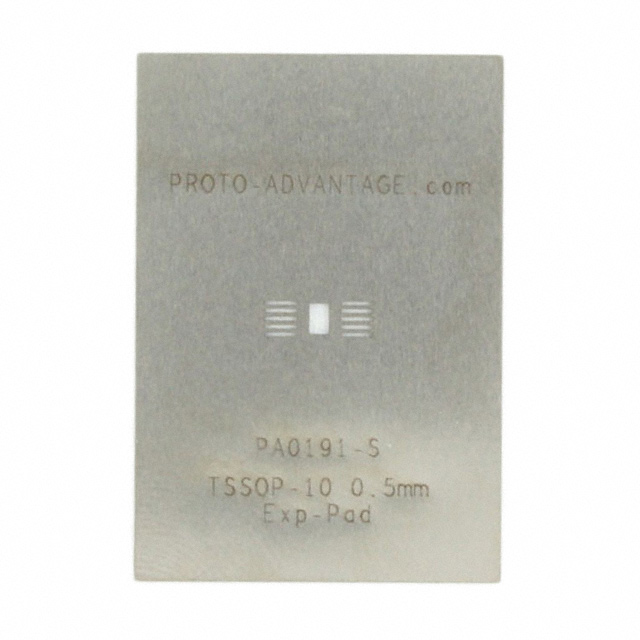

PA0191-S
|
Chip Quik, Inc. | TSSOP-10-EXP-PAD STENCIL | 0 | $11.59 | |

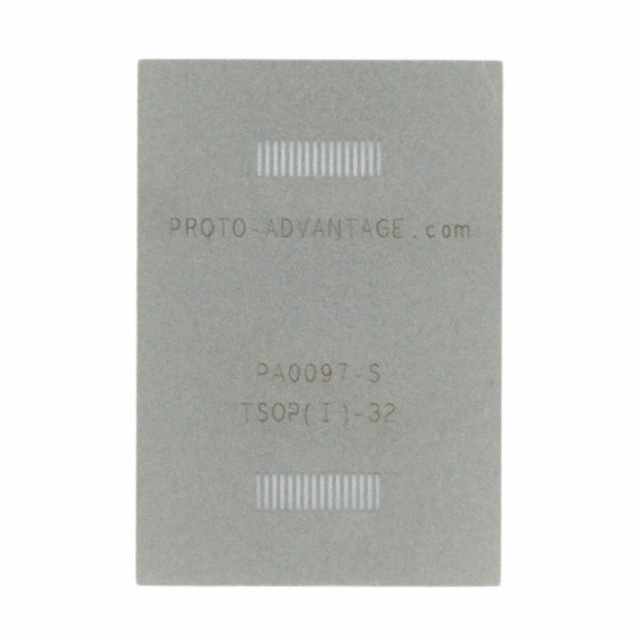

PA0097-S
|
Chip Quik, Inc. | TSOP-32 STENCIL | 0 | $11.59 | |
PA0211-S
|
Chip Quik, Inc. | TSOP-56 STENCIL | 0 | $11.59 | |

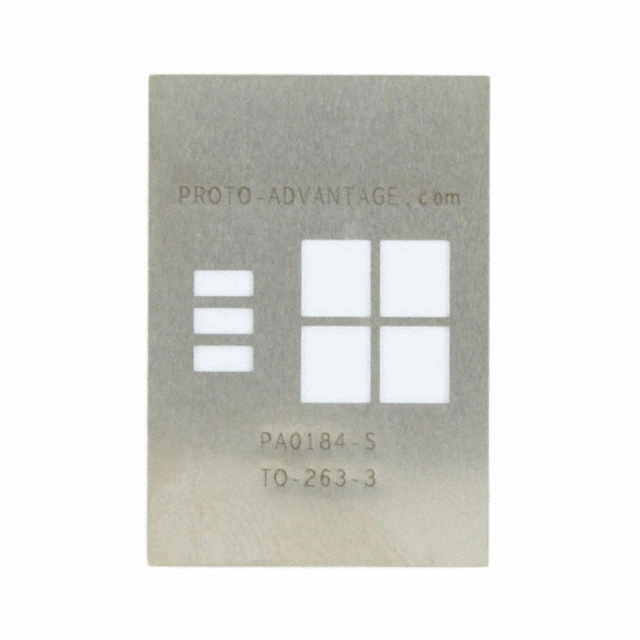

PA0184-S
|
Chip Quik, Inc. | TO-263-3 STENCIL | 0 | $11.59 | |
PA0183-S
|
Chip Quik, Inc. | TO-252 STENCIL | 0 | $11.59 |
