Solder Stencils, Templates
Solder Stencils and Templates are a mask that is used to apply solder paste in a specific area on a PCB board. The stencil types are BGA, CSP, DFN, DFN/SON, FPC/FFC, HSOP, HTQFP, HTSSOP, LED, LED/DFN, LED/PLCC, LGA, LLP, LQFP, LSOP, mini SOIC, MLP/DFN, MLP/MLF, MQFP, MSOP, PLCC, PLCC/JLCC, POS, PowerQSOP, PowerSOIC, PowerSSO, PowerSSOP, PQFP, PSOP, QFN, QFN/LFCSP, QSOP, RN, RQFP, SOIC, SON, SOP, SOT/SC, SSOP, TO/DDPAK, TO/DPAK, TQFP, TSOC, TSOP, TSSOP, TVSOP, uMAX, VSOP, and VSSOP.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

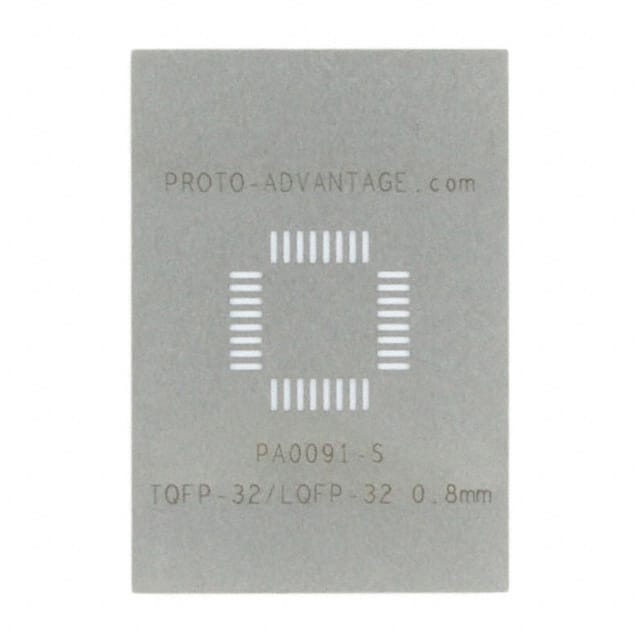

PA0091-S
|
Chip Quik, Inc. | STENCIL TQFP-32 .8MM | 3 | $11.59 | |
IPC0128-S
|
Chip Quik, Inc. | QFN-42 STENCIL | 0 | $11.59 | |
PA0043-S
|
Chip Quik, Inc. | VSOP-8 STENCIL | 0 | $11.59 | |
PA0047-S
|
Chip Quik, Inc. | VSOP-28 STENCIL | 0 | $11.59 | |
PA0046-S
|
Chip Quik, Inc. | VSOP-24 STENCIL | 0 | $11.59 | |
IPC0175-S
|
Chip Quik, Inc. | QFN-20/LFCSP-20 (0.5MM PITCH, 4X | 0 | $11.59 | |
|
IPC0174-S
|
Chip Quik, Inc. | QFN-16/LFCSP-16 (0.5MM PITCH, 4X | 0 | $11.59 | |
|
IPC0173-S
|
Chip Quik, Inc. | DFN-8/MOS-8 (0.97MM PITCH, 3.94X | 0 | $11.59 | |
|
IPC0176-S
|
Chip Quik, Inc. | DFN-12 (0.5MM PITCH, 3X3MM BODY) | 0 | $11.59 | |
BGA0015-S
|
Chip Quik, Inc. | BGA-100 (0.65MM PITCH) STENCIL | 0 | $20.99 |
