Balun
A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
3600BL14M100T
|
Johanson Technology Inc. | BALUN 3.3GHZ-3.9GHZ 50/100 0603 | 0 | $0.00 | |
|
3600BL14M050T
|
Johanson Technology Inc. | BALUN 3.3GHZ-3.9GHZ 50/50 0603 | 4665 | $0.00 | |

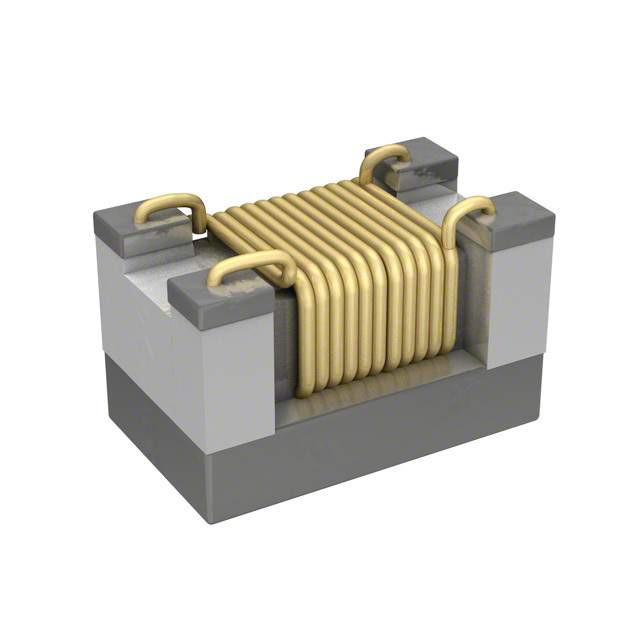

748422245
|
Wurth Electronics Inc. | BALUN 2.4GHZ-2.5GHZ 50/200 0805 | 0 | $0.77 | |
0783FB15A0100E
|
Johanson Technology Inc. | BALUN 779MHZ-787MHZ 50/100 0805 | 3880 | $0.00 | |
DXW21BN7511TL
|
Murata Electronics | BALUN 50MHZ-870MHZ 75/75 0805 | 1900 | $0.00 | |
B0225J7575AHF
|
Anaren | BALUN 200MHZ-2.5GHZ 75/75 0805 | 0 | $0.00 | |
0896FB15A0100E
|
Johanson Technology Inc. | BALUN 863MHZ-928MHZ 50/100 0805 | 1796 | $0.00 | |
2450FB15A050E
|
Johanson Technology Inc. | BALUN 2.4GHZ-2.5GHZ 50/50 0805 | 5504 | $0.00 | |
EHF-FD1617
|
Panasonic Electronic Components | BALUN 130MHZ-500MHZ 50/200 OHM | 3690 | $1.04 | |
2450BL05A0100T
|
Johanson Technology Inc. | BALUN 2.3GHZ-2.69GHZ 50/100 0202 | 9934 | $0.00 |
